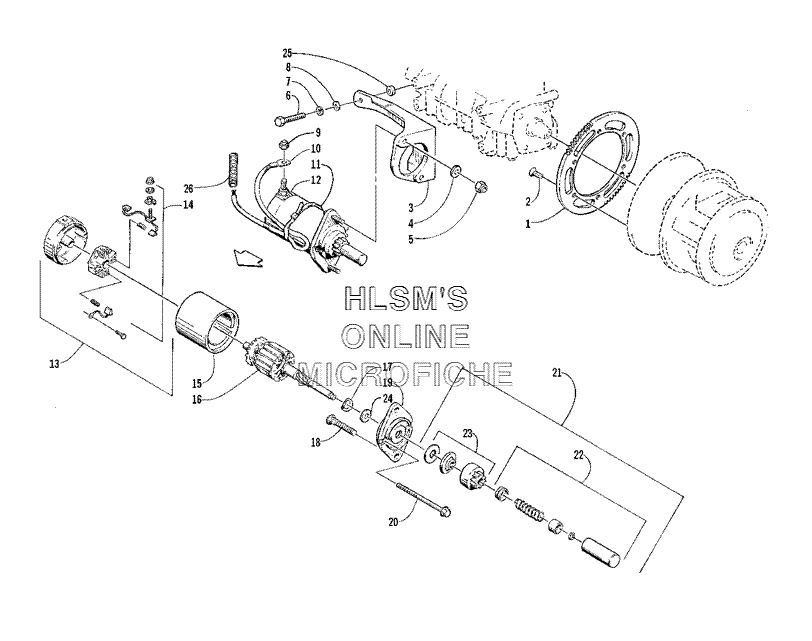

ELECTRIC START - STARTER MOTOR ASSEMBLY для Arctic Cat Bearcat 440 II - 2000 года выпуска

  • №
    Артикул
    Название
  • -
    1639-486 ELECTRIC START OPTIONAL KIT (INC. BATTERY AND STARTER MOTOR ASSEMBLIES)
    ELECTRIC START OPTIONAL KIT (INC. BATTERY AND STARTER MOTOR ASSEMBLIES)
  • 1
    0645-169 GEAR, RING
    GEAR, RING
  • 2
    0623-441 SCREW, MACHINE
    SCREW, MACHINE
  • 3
    0645-271 BRACKET, STARTER
    BRACKET, STARTER
  • 4
    8050-242 WASHER
    WASHER
  • 5
    8040-426 NUT, LOCK
    NUT, LOCK
  • 6
    8002-135 SCREW, CAP
    SCREW, CAP
  • 7
    8051-247 WASHER, LOCK
    WASHER, LOCK
  • 8
    8050-247 WASHER
    WASHER
  • 9
    0623-122 NUT, LOCK
    NUT, LOCK
  • 10
    0645-115 CABLE, SOLENOID/STARTER
    CABLE, SOLENOID/STARTER
  • 11
    0623-144 TIE, CABLE
    TIE, CABLE
  • 12
    0745-052 MOTOR, ELECTRIC START (INC. 13-23)
    MOTOR, ELECTRIC START (INC. 13-23)
  • 13
    0645-277 CAP, COMMUTATOR (INC. 14)
    CAP, COMMUTATOR (INC. 14)
  • 14
    0645-275 KIT, BRUSH AND SPRING
    KIT, BRUSH AND SPRING
  • 16
    0645-189 ARMATURE
    ARMATURE
  • 17
    0645-126 WASHER, WAVE
    WASHER, WAVE
  • 18
    0623-093 BOLT, RIBBED
    BOLT, RIBBED
  • 19
    0645-188 CAP, DRIVE
    CAP, DRIVE
  • 20
    0645-191 BOLT, STARTER MOTOR
    BOLT, STARTER MOTOR
  • 21
    0645-187 PINION, DRIVE ASSEMBLY (INC. 22-23)
    PINION, DRIVE ASSEMBLY (INC. 22-23)
  • 22
    0645-186 KIT, STOPPER - PINION
    KIT, STOPPER - PINION
  • 23
    0645-227 KIT, DRIVE ASSEMBLY
    KIT, DRIVE ASSEMBLY
  • 24
    0645-127 WASHER, THRUST
    WASHER, THRUST
  • 25
    0645-199 SPACER, MOTOR MOUNT
    SPACER, MOTOR MOUNT
  • 26
    0716-391 CONDUIT, FLEXIBLE
    CONDUIT, FLEXIBLE
