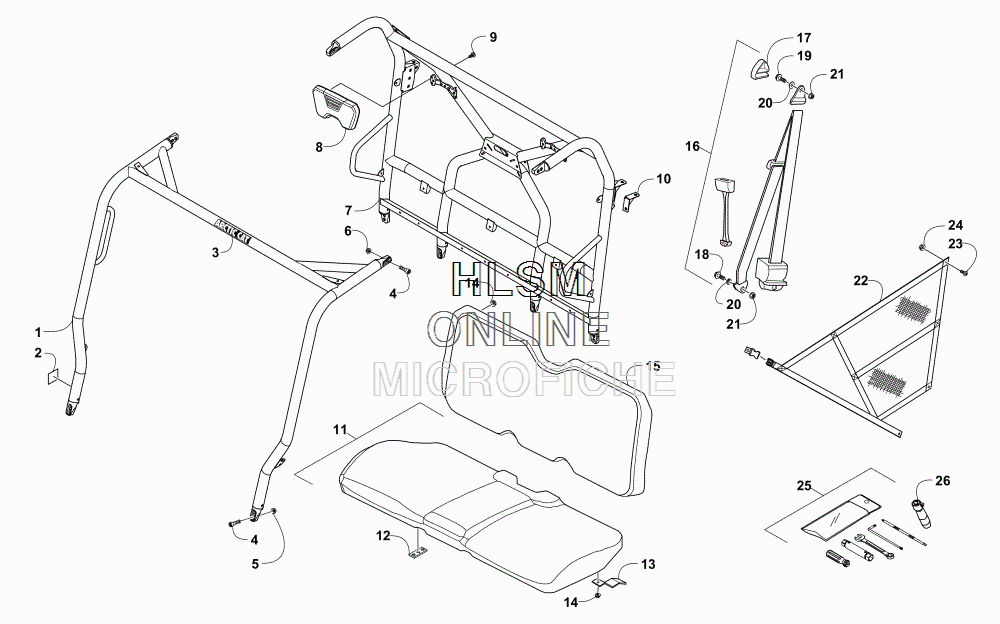

ROPS AND SEAT ASSEMBLY для Arctic Cat PROWLER 500 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-582 ROPS, FRONT (INC. 2-3)
    ROPS, FRONT (INC. 2-3)
  • 2
    3411-970 ...DECAL, WARNING - ROPS
    ...DECAL, WARNING - ROPS
  • 3
    0411-501 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 4
    3307-587 BOLT
    BOLT
  • 5
    3304-031 NUT, LOCK
    NUT, LOCK
  • 6
    3307-585 NUT
    NUT
  • 7
    3307-583 ROPS, REAR
    ROPS, REAR
  • 8
    3307-450 HEADREST
    HEADREST
  • 9
    3307-462 SCREW
    SCREW
  • 10
    3307-577 BRACKET, FLAG
    BRACKET, FLAG
  • 11
    3307-448 SEAT ASSEMBLY (INC. 12-13 AND TWO NO. 14)
    SEAT ASSEMBLY (INC. 12-13 AND TWO NO. 14)
  • 12
    3307-449 ...PAD, RUBBER
    ...PAD, RUBBER
  • 13
    3307-456 ...BRACKET, SEAT
    ...BRACKET, SEAT
  • 14
    3304-654 NUT, LOCK
    NUT, LOCK
  • 15
    3307-457 SEAT BACK
    SEAT BACK
  • 16
    3307-763 BELT, SEAT - WIRED - DRIVER SIDE (INC. 17-21)
    BELT, SEAT - WIRED - DRIVER SIDE (INC. 17-21)
  • 16
    3307-452 BELT, SEAT - PASSENGER SIDE (INC. 17-21)
    BELT, SEAT - PASSENGER SIDE (INC. 17-21)
  • 17
    3307-455 ...CAP
    ...CAP
  • 18
    3307-453 ...BOLT
    ...BOLT
  • 19
    3307-762 ...BOLT
    ...BOLT
  • 20
    3307-761 ...WASHER, LOCK
    ...WASHER, LOCK
  • 21
    3307-454 ...NUT, FLANGE
    ...NUT, FLANGE
  • 22
    3307-459 RESTRAINT, SIDE - RIGHT
    RESTRAINT, SIDE - RIGHT
  • 22
    3307-460 RESTRAINT, SIDE - LEFT
    RESTRAINT, SIDE - LEFT
  • 23
    3305-703 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    3304-431 NUT, LOCK
    NUT, LOCK
  • 25
    3307-701 KIT, TOOL (INC. 26)
    KIT, TOOL (INC. 26)
  • 26
    3307-446 ...GAUGE, AIR PRESSURE
    ...GAUGE, AIR PRESSURE
