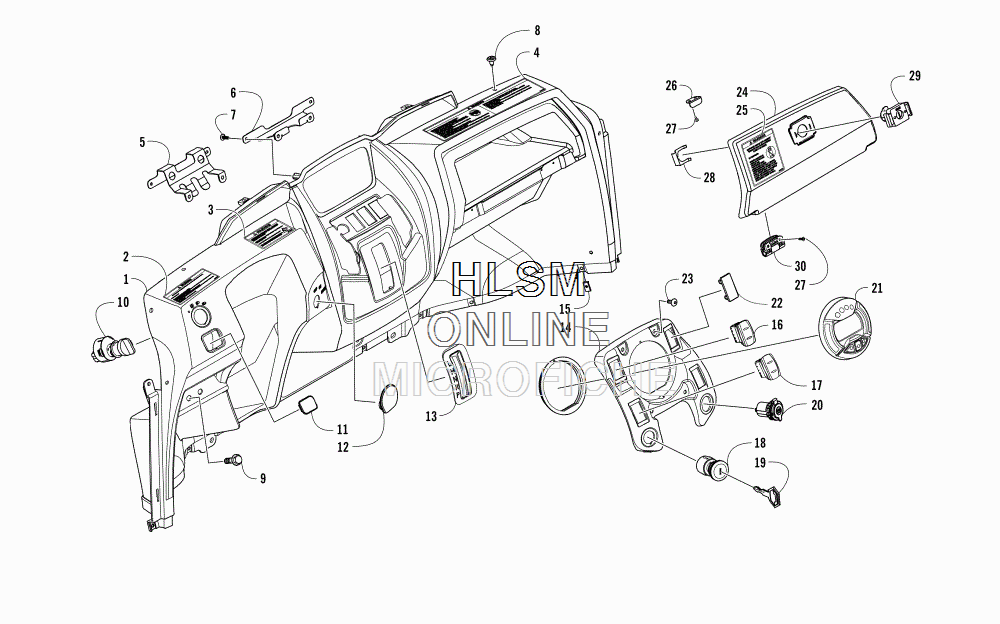

DASH ASSEMBLY для Arctic Cat PROWLER 500 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-643 DASH - W/DECALS (INC. 2-4)
    DASH - W/DECALS (INC. 2-4)
  • 2
    4411-962 ...DECAL, WARNING
    ...DECAL, WARNING
  • 3
    4411-963 ...DECAL, WARNING
    ...DECAL, WARNING
  • 4
    4411-960 ...DECAL, WARNING
    ...DECAL, WARNING
  • 5
    3307-330 BRACKET
    BRACKET
  • 6
    3307-329 BRACKET
    BRACKET
  • 7
    3304-650 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    3307-361 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 9
    3304-586 BOLT WASHER 6X20
    BOLT WASHER 6X20
  • 10
    3307-562 SWITCH, LIGHT
    SWITCH, LIGHT
  • 11
    3307-343 CAP, COVER
    CAP, COVER
  • 12
    3307-345 CAP, COVER
    CAP, COVER
  • 13
    3307-351 PLATE, SHIFT LEVER
    PLATE, SHIFT LEVER
  • 14
    3307-328 COVER, GAUGE - RED
    COVER, GAUGE - RED
  • 15
    3304-061 NUT CLIP 5 MM
    NUT CLIP 5 MM
  • 16
    0409-074 SWITCH, 2WD/4WD
    SWITCH, 2WD/4WD
  • 17
    0409-071 SWITCH, REVERSE OVERRIDE
    SWITCH, REVERSE OVERRIDE
  • 18
    3307-557 SWITCH, IGNITION
    SWITCH, IGNITION
  • 19
    3307-558 KEY, IGNITION
    KEY, IGNITION
  • 19
    3307-559 KEY, IGNITION
    KEY, IGNITION
  • 20
    3313-468 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 21
    0520-284 GAUGE
    GAUGE
  • 22
    3307-331 PLUG, SWITCH HOLE
    PLUG, SWITCH HOLE
  • 23
    3304-404 BOLT SPECIAL 6X16
    BOLT SPECIAL 6X16
  • 24
    3307-642 LID, GLOVE BOX - W/DECAL (INC.25)
    LID, GLOVE BOX - W/DECAL (INC.25)
  • 25
    4411-961 ...DECAL, WARNING
    ...DECAL, WARNING
  • 26
    3307-347 BRACKET
    BRACKET
  • 27
    3304-651 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    2416-984 CLIP, RETAINER
    CLIP, RETAINER
  • 29
    3307-565 LOCK, GLOVE BOX
    LOCK, GLOVE BOX
  • 30
    3307-341 HINGE, GLOVE BOX
    HINGE, GLOVE BOX
