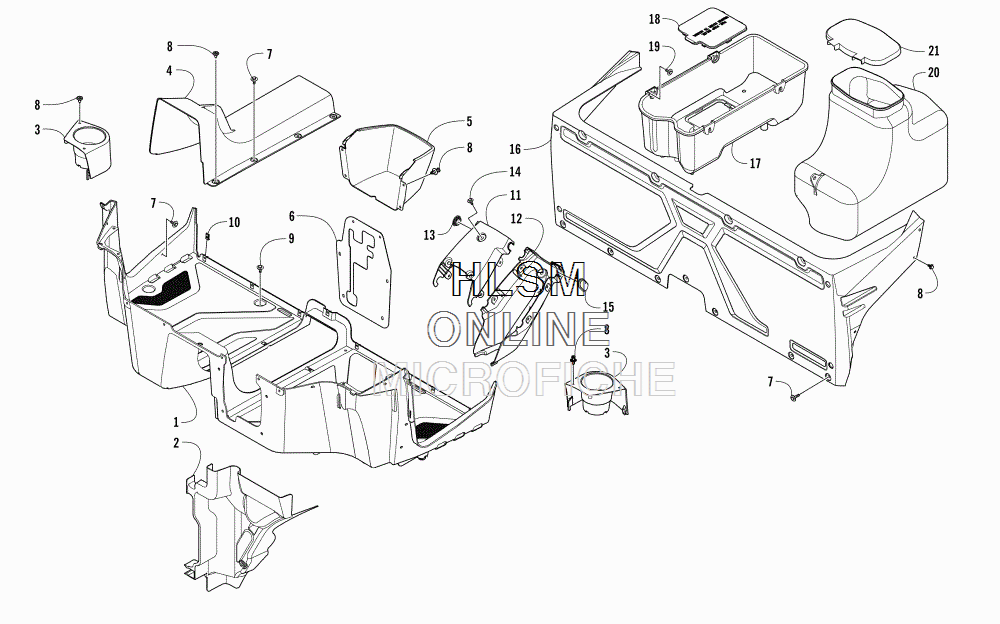

CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat PROWLER 500 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-371 PANEL, FLOOR
    PANEL, FLOOR
  • 2
    3307-337 PANEL, SPLASH
    PANEL, SPLASH
  • 3
    3307-373 HOLDER, CUP - RIGHT
    HOLDER, CUP - RIGHT
  • 3
    3307-376 HOLDER, CUP - LEFT
    HOLDER, CUP - LEFT
  • 4
    3307-378 CONSOLE, CENTER
    CONSOLE, CENTER
  • 5
    3307-372 HOLDER, GLOVE
    HOLDER, GLOVE
  • 6
    3307-375 PLATE, PEDAL
    PLATE, PEDAL
  • 7
    3306-146 BOLT-WASH 5X22
    BOLT-WASH 5X22
  • 8
    3307-361 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 9
    3307-137 BOLT WASHER 6X25
    BOLT WASHER 6X25
  • 10
    3304-061 NUT CLIP 5 MM
    NUT CLIP 5 MM
  • 11
    3307-348 COVER, STEERING - TOP
    COVER, STEERING - TOP
  • 12
    3307-349 COVER, STEERING - BOTTOM
    COVER, STEERING - BOTTOM
  • 13
    3307-344 GROMMET
    GROMMET
  • 14
    3304-587 BOLT WASHER 6X16
    BOLT WASHER 6X16
  • 15
    3307-350 GROMMET
    GROMMET
  • 16
    3307-379 PANEL, FLOOR - REAR
    PANEL, FLOOR - REAR
  • 17
    3307-395 BOX, LUGGAGE
    BOX, LUGGAGE
  • 18
    3307-394 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 19
    3304-586 BOLT WASHER 6X20
    BOLT WASHER 6X20
  • 20
    3307-391 BOX, LUGGAGE
    BOX, LUGGAGE
  • 21
    3307-389 LID, LUGGAGE BOX
    LID, LUGGAGE BOX
