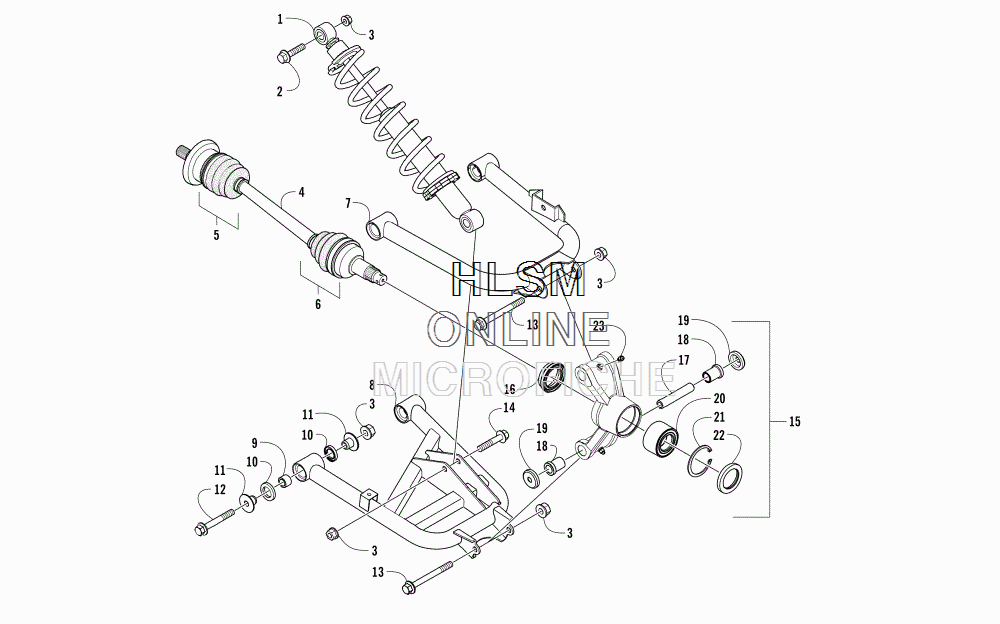

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER 500 RED - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-544 SHOCK/SPRING ASSEMBLY
    SHOCK/SPRING ASSEMBLY
  • 2
    3306-818 BOLT FLANGE 10X60
    BOLT FLANGE 10X60
  • 3
    3304-031 NUT, LOCK
    NUT, LOCK
  • 4
    3307-438 HALFSHAFT
    HALFSHAFT
  • 5
    3307-635 SERVICE KIT, BOOT - DIFFERENTIAL SIDE
    SERVICE KIT, BOOT - DIFFERENTIAL SIDE
  • 6
    3307-634 SERVICE KIT, BOOT - WHEEL SIDE
    SERVICE KIT, BOOT - WHEEL SIDE
  • 7
    3307-545 A-ARM, UPPER - REAR - RIGHT (INC. 9-11)
    A-ARM, UPPER - REAR - RIGHT (INC. 9-11)
  • 7
    3307-547 A-ARM, UPPER - REAR - LEFT (INC. 9-11)
    A-ARM, UPPER - REAR - LEFT (INC. 9-11)
  • 8
    3307-546 A-ARM, LOWER - REAR - RIGHT (INC. 9-11)
    A-ARM, LOWER - REAR - RIGHT (INC. 9-11)
  • 8
    3307-548 A-ARM, LOWER - REAR - LEFT (INC. 9-11)
    A-ARM, LOWER - REAR - LEFT (INC. 9-11)
  • 9
    3307-415 ...BEARING
    ...BEARING
  • 10
    3307-417 ...SEAL, DUST
    ...SEAL, DUST
  • 11
    3307-416 ...COLLAR
    ...COLLAR
  • 12
    3307-427 BOLT, FLANGE
    BOLT, FLANGE
  • 13
    3307-553 BOLT, FLANGE
    BOLT, FLANGE
  • 14
    3304-595 BOLT, FLANGE
    BOLT, FLANGE
  • 15
    3307-539 KNUCKLE, ASSEMBLY (INC. 16-23)
    KNUCKLE, ASSEMBLY (INC. 16-23)
  • 16
    3307-422 ...SEAL, DUST
    ...SEAL, DUST
  • 17
    3307-541 ...COLLAR, KNUCKLE
    ...COLLAR, KNUCKLE
  • 18
    3307-540 ...BUSHING
    ...BUSHING
  • 19
    3307-543 ...SEAL, DUST
    ...SEAL, DUST
  • 20
    1402-809 ...BEARING
    ...BEARING
  • 21
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 22
    3307-423 ...SEAL, DUST
    ...SEAL, DUST
  • 23
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
