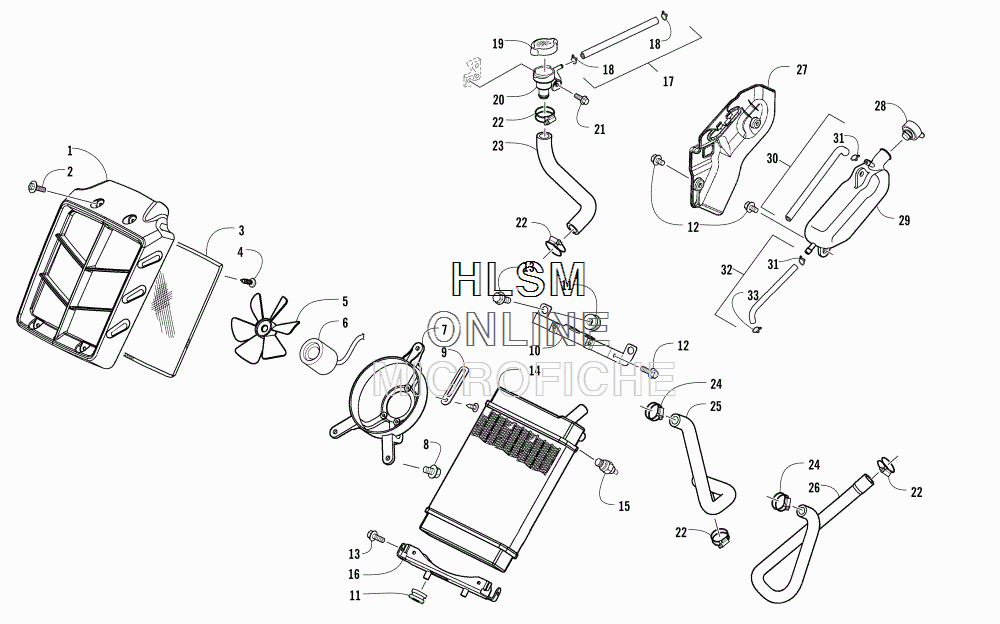

COOLING ASSEMBLY для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13305-973 FASCIA, RADIATORFASCIA, RADIATOR
-
23303-263 BOLT, WASHERBOLT, WASHER
-
33303-744 SCREEN, RADIATORSCREEN, RADIATOR
-
43304-123 SCREW, WASHER - 4 MMSCREW, WASHER - 4 MM
-
53303-741 FAN, COOLINGFAN, COOLING
-
63303-742 MOTOR, FANMOTOR, FAN
-
73303-739 SHROUD, FANSHROUD, FAN
-
83304-586 BOLT WASHER 6X20BOLT WASHER 6X20
-
93304-155 CLAMP, WIRECLAMP, WIRE
-
103303-983 BRACKET, RADIATOR - UPPERBRACKET, RADIATOR - UPPER
-
113303-239 GROMMETGROMMET
-
123304-587 BOLT WASHER 6X16BOLT WASHER 6X16
-
133304-652 BOLT WASHER 6X12BOLT WASHER 6X12
-
143303-737 RADIATOR ASSEMBLYRADIATOR ASSEMBLY
-
153307-842 SWITCH, TEMPERATURESWITCH, TEMPERATURE
-
163303-984 BRACKET, RADIATOR - LOWERBRACKET, RADIATOR - LOWER
-
173304-066 HOSE, OVERFLOW (INC. 18)HOSE, OVERFLOW (INC. 18)
-
183304-161 ...CLAMP, HOSE...CLAMP, HOSE
-
193303-748 CAP, FILLER NECKCAP, FILLER NECK
-
203303-738 NECK, FILLERNECK, FILLER
-
213304-553 BOLT, FLANGE - 6 X 12BOLT, FLANGE - 6 X 12
-
223304-165 CLIP, WATER HOSECLIP, WATER HOSE
-
233303-761 HOSE, COOLANT - FILLER NECK/RADIATORHOSE, COOLANT - FILLER NECK/RADIATOR
-
243304-164 CLAMP, HOSECLAMP, HOSE
-
253303-759 HOSE, COOLANT - RADIATOR/WATER PUMPHOSE, COOLANT - RADIATOR/WATER PUMP
-
263303-760 HOSE, COOLING - ENGINE/RADIATORHOSE, COOLING - ENGINE/RADIATOR
-
273305-974 SHIELD, RESERVOIR TANKSHIELD, RESERVOIR TANK
-
283307-599 CAP, RESERVECAP, RESERVE
-
293304-253 TANK, RESERVOIRTANK, RESERVOIR
-
303303-745 HOSE, DRAIN (INC. ONE NO. 31)HOSE, DRAIN (INC. ONE NO. 31)
-
313304-163 ...CLAMP, HOSE...CLAMP, HOSE
-
323303-746 HOSE, RESERVOIR TANK (INC. 33 AND ONE NO. 31)HOSE, RESERVOIR TANK (INC. 33 AND ONE NO. 31)
-
333303-349 ...CLAMP, HOSE...CLAMP, HOSE
