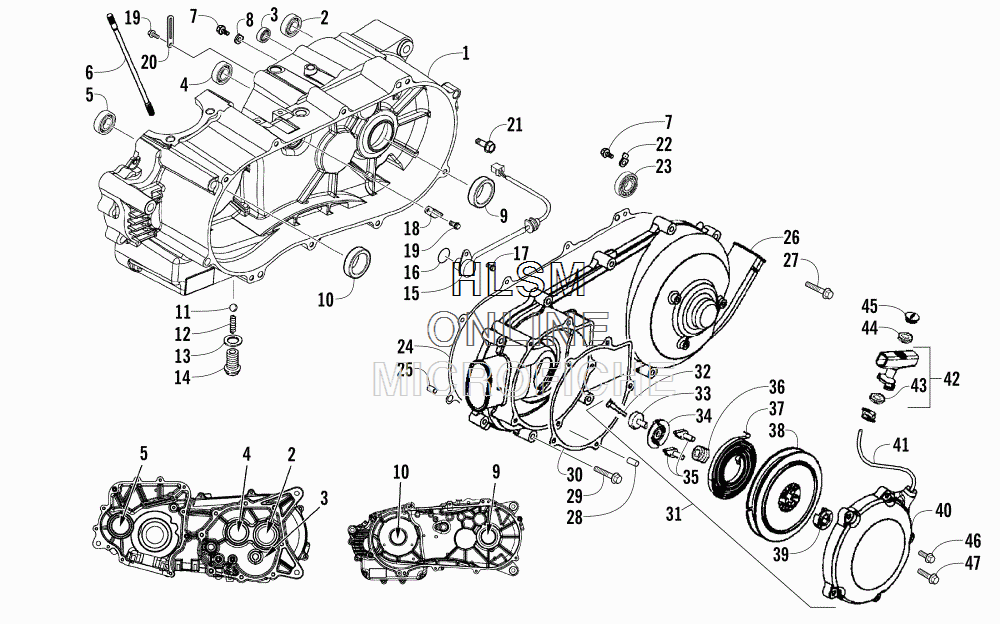

LEFT CRANKCASE- COVER- AND RECOIL ASSEMBLY для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
13303-629 CRANKCASECRANKCASE
-
23304-067 BEARINGBEARING
-
33304-074 BEARING, NEEDLEBEARING, NEEDLE
-
43304-198 BEARINGBEARING
-
53304-195 BEARINGBEARING
-
63305-606 BOLT, STUDBOLT, STUD
-
73304-005 BOLT SPECIAL 6X10 96600-08010 N.C.BOLT SPECIAL 6X10 96600-08010 N.C.
-
83304-039 RETAINER, BEARINGRETAINER, BEARING
-
93304-091 SEAL, OILSEAL, OIL
-
103304-079 SEAL, OILSEAL, OIL
-
113304-205 BEARING, BALLBEARING, BALL
-
123304-063 SPRING, SEATSPRING, SEAT
-
133304-021 WASHERWASHER
-
143304-109 SCREW, SEATSCREW, SEAT
-
153303-856 SWITCH, GEAR POSITION (INC. 16)SWITCH, GEAR POSITION (INC. 16)
-
163305-776 ...O-RING...O-RING
-
173304-187 BOLT FLANGE 6X10BOLT FLANGE 6X10
-
183303-843 RETAINER, WIRERETAINER, WIRE
-
193303-381 BOLT FLANGE SH 6X12BOLT FLANGE SH 6X12
-
203304-158 CLAMP, WIRECLAMP, WIRE
-
213304-544 BOLT FLANGE 8X12BOLT FLANGE 8X12
-
223304-040 RETAINER, BEARINGRETAINER, BEARING
-
233304-073 BEARING BALL, RADIALBEARING BALL, RADIAL
-
243303-642 GASKET, COVERGASKET, COVER
-
253303-342 PIN, DOWELPIN, DOWEL
-
263303-632 COVER, CRANKCASECOVER, CRANKCASE
-
273304-003 BOLT FLANGE SHF 6X28BOLT FLANGE SHF 6X28
-
283303-341 PIN, DOWELPIN, DOWEL
-
293304-004 BOLT FLANGE SHF 6X40BOLT FLANGE SHF 6X40
-
303304-101 GASKET, COVERGASKET, COVER
-
313305-459 RECOIL, STARTING (INC. 32-45)RECOIL, STARTING (INC. 32-45)
-
323304-113 ...SCREW, MACHINE...SCREW, MACHINE
-
333303-651 ...INSERT...INSERT
-
343303-649 ...GUIDE, RATCHET...GUIDE, RATCHET
-
353303-646 ...RATCHET...RATCHET
-
363303-647 ...SPRING...SPRING
-
373303-645 ...SPRING, SPIRAL...SPRING, SPIRAL
-
383305-346 ...REEL, STARTER...REEL, STARTER
-
393303-648 ...SPACER...SPACER
-
403303-639 ...COVER, RECOIL (INC. 41)...COVER, RECOIL (INC. 41)
-
413303-650 ......ROPE, STARTER......ROPE, STARTER
-
423303-652 ...HANDLE, RECOIL (INC. 43)...HANDLE, RECOIL (INC. 43)
-
433304-103 ......O-RING......O-RING
-
443304-137 ...WASHER...WASHER
-
453305-269 ...CAP, RECOIL HANDLE...CAP, RECOIL HANDLE
-
463303-384 BOLT, FLANGEBOLT, FLANGE
-
473305-945 BOLT FLANGE SH 6X32BOLT FLANGE SH 6X32
