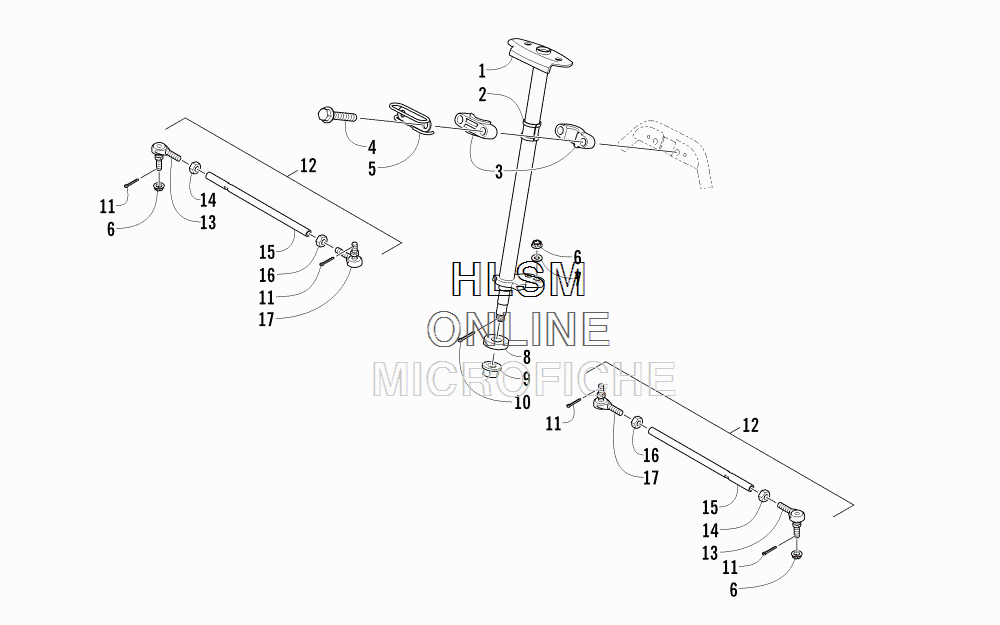

STEERING ASSEMBLY для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-957 POST, STEERING
    POST, STEERING
  • 2
    3305-496 BUSHING, STEERING
    BUSHING, STEERING
  • 3
    3305-927 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 4
    3304-649 BOLT FLANGE 8X60
    BOLT FLANGE 8X60
  • 5
    3303-962 CLAMP, MOUNTING BLOCK
    CLAMP, MOUNTING BLOCK
  • 6
    3304-130 NUT, CASTLE
    NUT, CASTLE
  • 7
    3304-136 WASHER
    WASHER
  • 8
    3303-960 SPACER
    SPACER
  • 9
    3304-032 NUT
    NUT
  • 10
    3303-470 PIN, COTTER
    PIN, COTTER
  • 11
    3304-143 PIN, COTTER
    PIN, COTTER
  • 12
    3303-969 TIE ROD - ASSEMBLY (INC. 13-17)
    TIE ROD - ASSEMBLY (INC. 13-17)
  • 13
    3303-971 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 14
    3303-326 ...NUT - RIGHT-HAND THREAD
    ...NUT - RIGHT-HAND THREAD
  • 15
    3304-376 ...TIE ROD
    ...TIE ROD
  • 16
    3303-327 ...NUT, HEX - RIGHT-HAND THREAD
    ...NUT, HEX - RIGHT-HAND THREAD
  • 17
    3303-973 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
