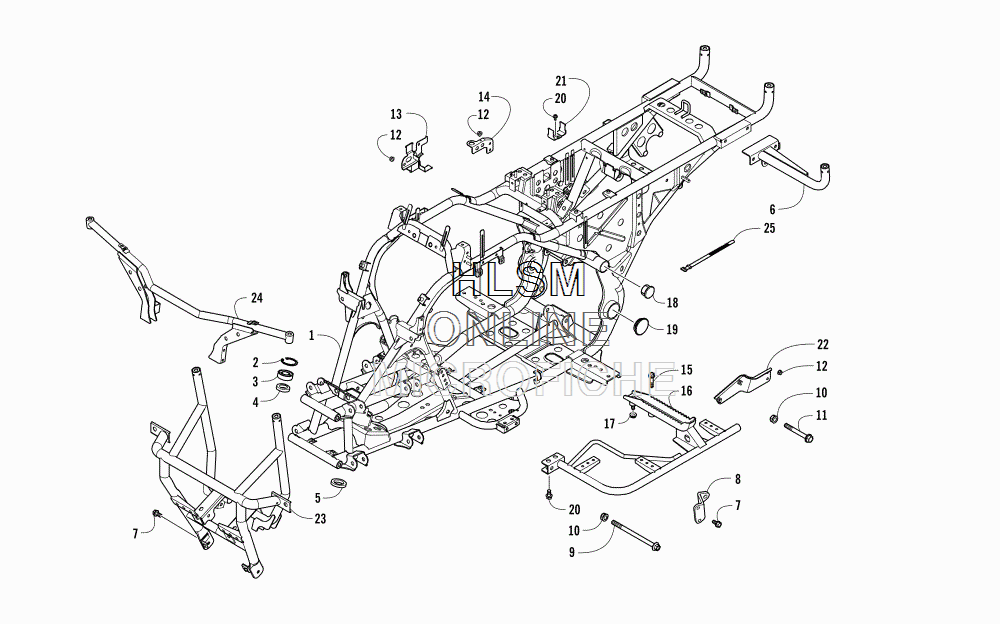

FRAME AND RELATED PARTS для Arctic Cat ALTERRA 300 GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-831 FRAME, MAIN
    FRAME, MAIN
  • 2
    3304-150 RING, RETAINING
    RING, RETAINING
  • 3
    3304-203 BEARING
    BEARING
  • 4
    3303-298 SEAL, OIL
    SEAL, OIL
  • 5
    3304-064 SEAL, DUST
    SEAL, DUST
  • 6
    3307-832 BRACKET, MOUNTING - REAR RACK - RIGHT
    BRACKET, MOUNTING - REAR RACK - RIGHT
  • 6
    3307-833 BRACKET, MOUNTING - REAR RACK - LEFT
    BRACKET, MOUNTING - REAR RACK - LEFT
  • 7
    3304-543 BOLT FLANGE 8X16
    BOLT FLANGE 8X16
  • 8
    3303-938 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 9
    3304-184 BOLT, FLANGE
    BOLT, FLANGE
  • 10
    3304-031 NUT, LOCK
    NUT, LOCK
  • 11
    3304-183 SCREW, CAP
    SCREW, CAP
  • 12
    3304-654 NUT, LOCK
    NUT, LOCK
  • 13
    3304-657 BRACKET, MOUNTING - LIGHTING CONTROL
    BRACKET, MOUNTING - LIGHTING CONTROL
  • 14
    3304-655 BRACKET, MOUNTING - BRAKE SWITCH
    BRACKET, MOUNTING - BRAKE SWITCH
  • 15
    3303-616 BOLT, FLANGE
    BOLT, FLANGE
  • 16
    3307-834 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 16
    3307-835 FOOTREST - LEFT
    FOOTREST - LEFT
  • 17
    3303-332 NUT
    NUT
  • 18
    3304-658 END CAP, FRAME
    END CAP, FRAME
  • 19
    3303-999 END CAP
    END CAP
  • 20
    3304-409 BOLT WASHER 5*12
    BOLT WASHER 5*12
  • 21
    3305-238 BRACKET, MOUNTING - STARTER/MAGNETO SWITCH
    BRACKET, MOUNTING - STARTER/MAGNETO SWITCH
  • 22
    3303-935 STAY, CATCH TANK
    STAY, CATCH TANK
  • 23
    3307-837 FRONT BUMPER
    FRONT BUMPER
  • 24
    3307-836 MOUNT, FRONT RACK
    MOUNT, FRONT RACK
  • 25
    3303-289 TIE, CABLE
    TIE, CABLE
