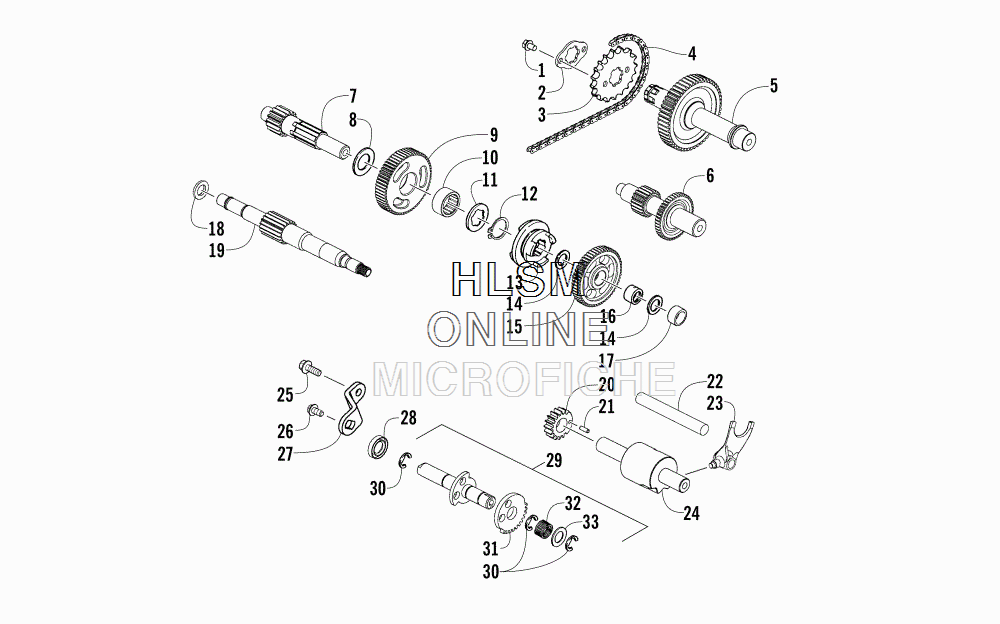

TRANSMISSION ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3307-202 BOLT HEX 6X10 (G)
    BOLT HEX 6X10 (G)
  • 2
    3303-108 PLATE, RETAINING
    PLATE, RETAINING
  • 3
    3305-814 SPROCKET, DRIVE
    SPROCKET, DRIVE
  • 4
    3305-820 CHAIN, DRIVE
    CHAIN, DRIVE
  • 5
    3305-805 SHAFT, FINAL
    SHAFT, FINAL
  • 6
    3305-822 COUNTERSHAFT - ASSEMBLY
    COUNTERSHAFT - ASSEMBLY
  • 7
    3305-809 SHAFT, MAIN
    SHAFT, MAIN
  • 8
    3304-042 WASHER, THRUST
    WASHER, THRUST
  • 9
    3305-811 GEAR, REVERSE
    GEAR, REVERSE
  • 10
    3304-074 BEARING, NEEDLE
    BEARING, NEEDLE
  • 11
    3305-812 WASHER
    WASHER
  • 12
    3303-344 RING, RETAINING
    RING, RETAINING
  • 13
    3305-029 GEAR SELECT, SLIDING
    GEAR SELECT, SLIDING
  • 14
    3303-275 WASHER, THRUST - 15 MM
    WASHER, THRUST - 15 MM
  • 15
    3305-810 GEAR, FORWARD
    GEAR, FORWARD
  • 16
    3305-024 BUSHING
    BUSHING
  • 17
    3305-028 SPACER
    SPACER
  • 18
    3303-588 WASHER
    WASHER
  • 19
    3305-813 DRIVESHAFT
    DRIVESHAFT
  • 20
    3306-008 GEAR, DRUM SHIFT
    GEAR, DRUM SHIFT
  • 21
    3306-007 PIN, ALIGNMENT
    PIN, ALIGNMENT
  • 22
    3304-513 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
  • 23
    3305-815 FORK, SHIFT
    FORK, SHIFT
  • 24
    3306-006 CAM, GEAR SHIFT - ASSEMBLY
    CAM, GEAR SHIFT - ASSEMBLY
  • 25
    3303-365 BOLT FLANGE 8X12
    BOLT FLANGE 8X12
  • 26
    3304-652 BOLT WASHER 6X12
    BOLT WASHER 6X12
  • 27
    3305-825 BRACKET, SHIFT GUIDE
    BRACKET, SHIFT GUIDE
  • 28
    3304-900 BEARING
    BEARING
  • 29
    3305-817 SPINDLE ASSEMBLY (INC. 30-33)
    SPINDLE ASSEMBLY (INC. 30-33)
  • 30
    3304-153 ...E-RING
    ...E-RING
  • 31
    3303-815 ...GEAR, SHIFT HANDLE
    ...GEAR, SHIFT HANDLE
  • 32
    3305-818 ...SPRING, GEAR SHIFT RETURN
    ...SPRING, GEAR SHIFT RETURN
  • 33
    3304-036 ...WASHER, THRUST
    ...WASHER, THRUST
