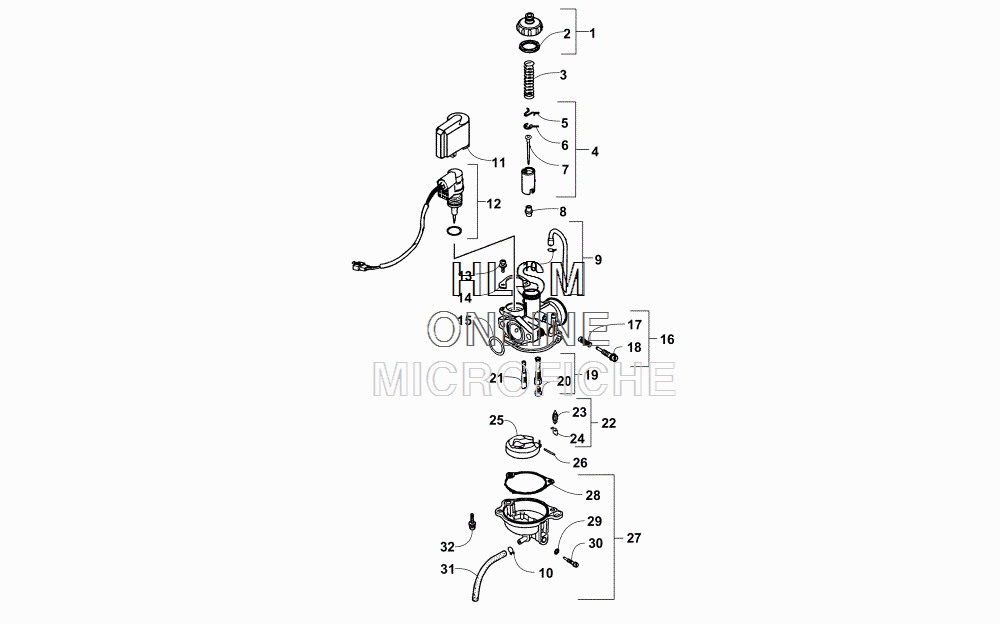

CARBURETOR ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска`
-
№АртикулНазвание
-
-3306-829 CARBURETOR - ASSEMBLYCARBURETOR - ASSEMBLY
-
13304-462 SET, TOP (INC. 2)SET, TOP (INC. 2)
-
23304-463 ...GASKET...GASKET
-
33304-464 SPRING, COMPRESSIONSPRING, COMPRESSION
-
43306-905 VALVE, THROTTLE - ASSEMBLY (INC. 5-7)VALVE, THROTTLE - ASSEMBLY (INC. 5-7)
-
53304-465 ...CLIP, SPRING...CLIP, SPRING
-
63304-466 ...E-RING...E-RING
-
73305-592 NEEDLE, JETNEEDLE, JET
-
83304-468 JET, NEEDLEJET, NEEDLE
-
93304-472 PIPE, RUBBER - ASSEMBLY (INC. ONE NO. 10)PIPE, RUBBER - ASSEMBLY (INC. ONE NO. 10)
-
105507-161 CLAMP, HOSECLAMP, HOSE
-
113304-469 COVERCOVER
-
123304-470 AUTOMATIC BYPASS/STARTER ASSEMBLYAUTOMATIC BYPASS/STARTER ASSEMBLY
-
133307-128 SCREW, MACHINESCREW, MACHINE
-
143304-471 PLATE, RETAININGPLATE, RETAINING
-
153304-488 O-RINGO-RING
-
163305-446 SCREW, STOP - ASSEMBLY (INC. 17-18)SCREW, STOP - ASSEMBLY (INC. 17-18)
-
173305-444 ...SPRING...SPRING
-
183304-478 ...SCREW, STOP...SCREW, STOP
-
193304-479 HOLDER, NEEDLE JET - ASSEMBLY (INC. 18 AND 20)HOLDER, NEEDLE JET - ASSEMBLY (INC. 18 AND 20)
-
203304-482 ...JET, MAIN - 80...JET, MAIN - 80
-
205507-170 JET, MAIN - 75 (OPT)JET, MAIN - 75 (OPT)
-
205507-220 JET, MAIN - 78 (OPT)JET, MAIN - 78 (OPT)
-
213304-489 JET, SLOWJET, SLOW
-
223304-490 VALVE, FLOAT - ASSEMBLY (INC. 23 AND ONE NO. 24)VALVE, FLOAT - ASSEMBLY (INC. 23 AND ONE NO. 24)
-
233306-752 ...VALVE, FLOAT - SET...VALVE, FLOAT - SET
-
243304-484 ...CLIP...CLIP
-
253304-491 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
263304-485 PIN, FLOATPIN, FLOAT
-
273304-486 CHAMBER, FLOAT - W/GASKET (INC. ONE NO. 10 AND 28-31)CHAMBER, FLOAT - W/GASKET (INC. ONE NO. 10 AND 28-31)
-
283305-569 ...GASKET...GASKET
-
293304-239 ...O-RING...O-RING
-
303304-243 ...SCREW, DRAIN...SCREW, DRAIN
-
313305-248 TUBE, DRAINTUBE, DRAIN
-
323303-320 SCREW, MACHINESCREW, MACHINE
