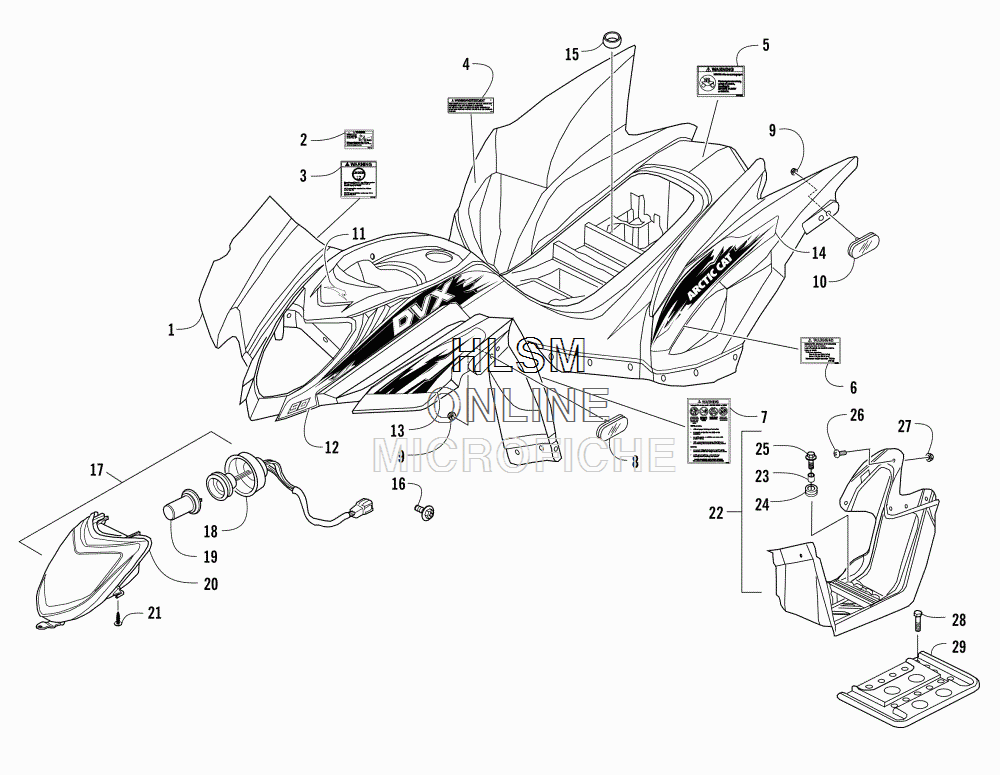

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска

№

Артикул

Название
1

3306-209 PANEL, BODY - MAIN - GREEN (INC. 2-11)

PANEL, BODY - MAIN - GREEN (INC. 2-11)

62 810 ₽
2

0411-836 ...DECAL, WARNING - HILL

...DECAL, WARNING - HILL

12 270 ₽
3

2411-137 ...DECAL, WARNING - AGE

...DECAL, WARNING - AGE

1 870 ₽
4

1411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS

...DECAL, WARNING - NOT FOR HIGHWAYS

7 480 ₽
5

1411-809 ...DECAL, WARNING - PASSENGER

...DECAL, WARNING - PASSENGER

500 ₽
6

1411-938 ...DECAL, WARNING - TIRE/LOAD

...DECAL, WARNING - TIRE/LOAD

1 870 ₽
7

1411-932 ...DECAL, WARNING - GENERAL

...DECAL, WARNING - GENERAL

1 870 ₽
8

3313-359 ...REFLECTOR - FRONT

...REFLECTOR - FRONT

2 070 ₽
9

3304-774 ...NUT

...NUT

130 ₽
10

3313-360 ...REFLECTOR - REAR

...REFLECTOR - REAR

2 070 ₽
11

4411-479 ...DECAL, AIRCAT

...DECAL, AIRCAT

810 ₽
12

5411-930 DECAL, SIDE - FORWARD RIGHT

DECAL, SIDE - FORWARD RIGHT

7 480 ₽
12

5411-931 DECAL, SIDE - FORWARD LEFT

DECAL, SIDE - FORWARD LEFT

7 480 ₽
13

5411-928 DECAL, FRONT FENDER - RIGHT

DECAL, FRONT FENDER - RIGHT

5 610 ₽
13

5411-929 DECAL, FRONT FENDER - LEFT

DECAL, FRONT FENDER - LEFT

5 610 ₽
14

5411-932 DECAL, REAR FENDER - RIGHT

DECAL, REAR FENDER - RIGHT

8 730 ₽
14

5411-933 DECAL, REAR FENDER - LEFT

DECAL, REAR FENDER - LEFT

8 730 ₽
15

3303-232 GROMMET, RUBBER

GROMMET, RUBBER

290 ₽
16

3304-587 BOLT WASHER 6X16

BOLT WASHER 6X16

190 ₽
17

3304-280 HEADLIGHT - ASSEMBLY (INC. 18-20)

HEADLIGHT - ASSEMBLY (INC. 18-20)

30 360 ₽
18

3304-282 ...SOCKET ASSEMBLY

...SOCKET ASSEMBLY

5 400 ₽
19

3303-846 ...BULB, HEADLIGHT

...BULB, HEADLIGHT

6 230 ₽
20

3304-281 ...LENS, HEADLIGHT

...LENS, HEADLIGHT

26 830 ₽
21

3304-650 SCREW, SELF-TAPPING

SCREW, SELF-TAPPING

230 ₽
22

3306-144 MUDGUARD, RIGHT - ASSEMBLY (INC. FOUR NO. 23 AND FOUR NO. 24)

MUDGUARD, RIGHT - ASSEMBLY (INC. FOUR NO. 23 AND FOUR NO. 24)

12 270 ₽
22

3306-145 MUDGUARD, LEFT - ASSEMBLY (INC. FOUR NO. 23 AND FOUR NO. 24)

MUDGUARD, LEFT - ASSEMBLY (INC. FOUR NO. 23 AND FOUR NO. 24)

12 270 ₽
23

3303-233 ...SPACER

...SPACER

360 ₽
24

3303-227 ...BUSHING

...BUSHING

290 ₽
25

3304-586 BOLT WASHER 6X20

BOLT WASHER 6X20

190 ₽
26

3305-703 SCREW, MACHINE

SCREW, MACHINE

270 ₽
27

3304-431 NUT, LOCK

NUT, LOCK

190 ₽
28

3304-543 BOLT FLANGE 8X16

BOLT FLANGE 8X16

230 ₽
29

3304-494 SUPPORT, MUDGUARD - RIGHT

SUPPORT, MUDGUARD - RIGHT

5 400 ₽
29

3304-495 SUPPORT, MUDGUARD - LEFT

SUPPORT, MUDGUARD - LEFT

5 400 ₽
