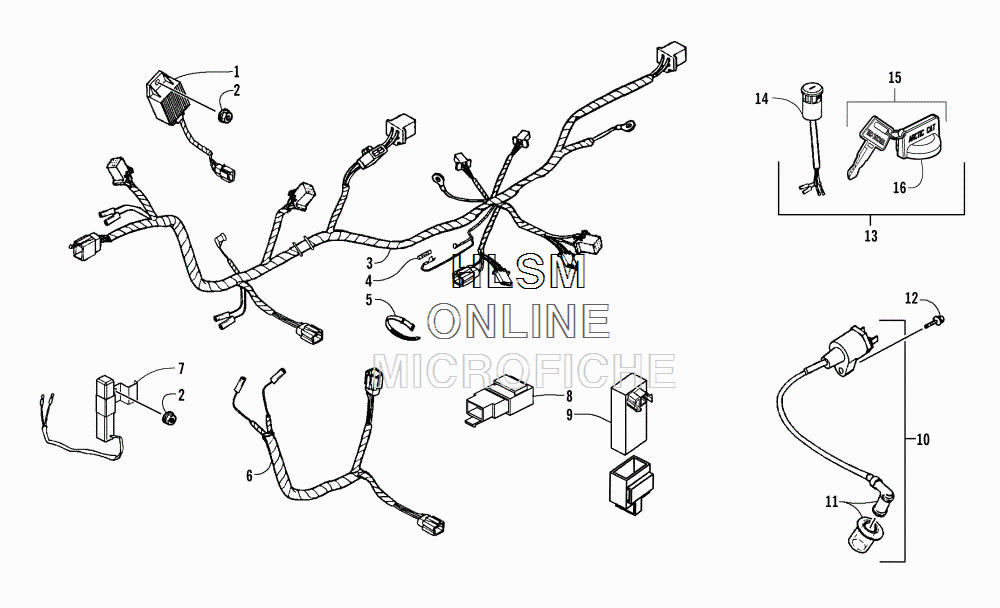

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 90 2X4 DVX GREEN - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-132 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 2
    3304-654 NUT, LOCK
    NUT, LOCK
  • 3
    3306-119 HARNESS, MAIN (INC. 4)
    HARNESS, MAIN (INC. 4)
  • 4
    3303-399 ...FUSE
    ...FUSE
  • 5
    3303-289 CABLE TIE
    CABLE TIE
  • 6
    3306-002 HARNESS, EXTENSION
    HARNESS, EXTENSION
  • 7
    3303-142 RESISTOR
    RESISTOR
  • 8
    3303-143 RELAY, STARTER
    RELAY, STARTER
  • 9
    3305-861 CDI UNIT
    CDI UNIT
  • 10
    3303-125 COIL ASSEMBLY - IGNITION (INC. 11)
    COIL ASSEMBLY - IGNITION (INC. 11)
  • 11
    3303-126 ...CAP, NOISE SUPPRESSION
    ...CAP, NOISE SUPPRESSION
  • 12
    3303-252 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 13
    3306-147 KEY SET (INC. 14-16)
    KEY SET (INC. 14-16)
  • 15
    3307-104 ...KEY, IGNITION - RIGHT-SIDE CUT
    ...KEY, IGNITION - RIGHT-SIDE CUT
  • 15
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
  • 16
    3304-522 ...COVER, KEY
    ...COVER, KEY
