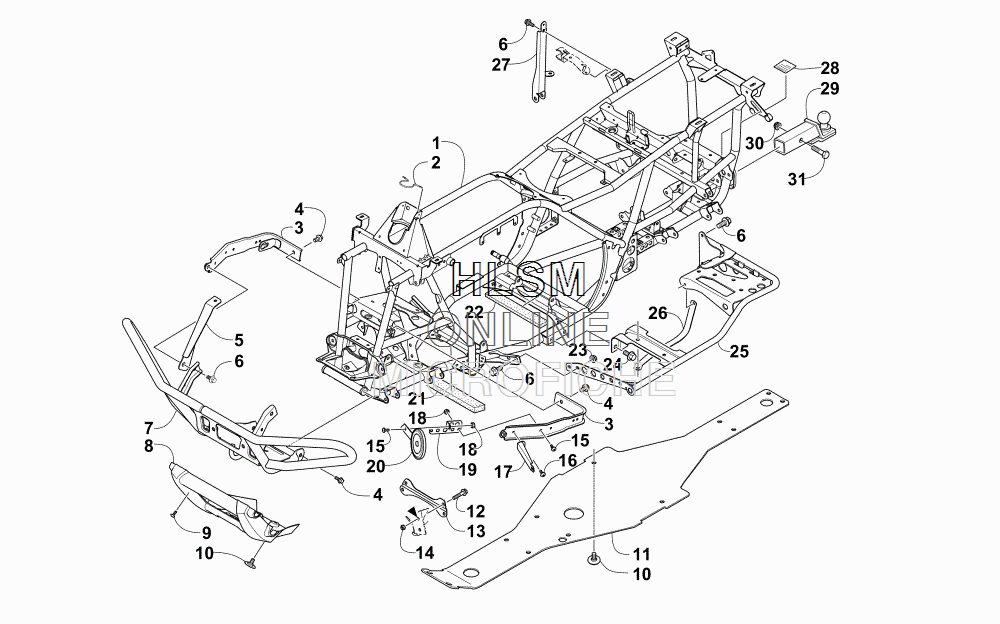

FRAME AND RELATED PARTS для Arctic Cat TRV 1000 XT L7E RED [A2016TGW1P7EE] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    4506-821 FRAME, MAIN
    FRAME, MAIN
  • 2
    2416-401 CLIP, ROUTING
    CLIP, ROUTING
  • 3
    2506-813 CHANNEL, BUMPER MOUNTING - RIGHT
    CHANNEL, BUMPER MOUNTING - RIGHT
  • 3
    2506-285 CHANNEL, BUMPER MOUNTING - LEFT
    CHANNEL, BUMPER MOUNTING - LEFT
  • 4
    8409-020 SCREW, CAP
    SCREW, CAP
  • 5
    1506-562 BRACKET, MOUNTING - BUMPER - RIGHT
    BRACKET, MOUNTING - BUMPER - RIGHT
  • 5
    1506-563 BRACKET, MOUNTING - BUMPER - LEFT
    BRACKET, MOUNTING - BUMPER - LEFT
  • 6
    8408-816 SCREW, CAP
    SCREW, CAP
  • 7
    1506-855 BUMPER
    BUMPER
  • 8
    1406-360 FASCIA, BUMPER - FRONT
    FASCIA, BUMPER - FRONT
  • 9
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 11
    2406-718 PANEL, BELLY
    PANEL, BELLY
  • 12
    8409-025 SCREW, CAP
    SCREW, CAP
  • 13
    2516-852 BRACE, A-ARM
    BRACE, A-ARM
  • 14
    0423-744 NUT, LOCK
    NUT, LOCK
  • 15
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    8477-620 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    2416-162 BRACKET, SUPPORT - RIGHT
    BRACKET, SUPPORT - RIGHT
  • 17
    2416-163 BRACKET, SUPPORT - LEFT
    BRACKET, SUPPORT - LEFT
  • 18
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 19
    2406-321 BRACKET, MOUNTING - HORN
    BRACKET, MOUNTING - HORN
  • 20
    0430-131 HORN, ELECTRIC - 12V
    HORN, ELECTRIC - 12V
  • 21
    2506-701 PAD, FOAM
    PAD, FOAM
  • 22
    0406-289 PAD, FRAME
    PAD, FRAME
  • 23
    8424-802 NUT
    NUT
  • 24
    8409-016 SCREW, CAP
    SCREW, CAP
  • 25
    2506-776 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 25
    1506-849 FOOTREST - LEFT
    FOOTREST - LEFT
  • 26
    2406-788 STRAP, FOOTREST - RIGHT
    STRAP, FOOTREST - RIGHT
  • 26
    2406-789 STRAP, FOOTREST - LEFT
    STRAP, FOOTREST - LEFT
  • 27
    2506-447 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 28
    4411-550 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
  • 29
    0541-857 MOUNT, BALL HITCH (INC. 30-31)
    MOUNT, BALL HITCH (INC. 30-31)
  • 30
    1423-128 ...NUT, LOCK
    ...NUT, LOCK
  • 31
    1423-129 ...SCREW, CAP
    ...SCREW, CAP
