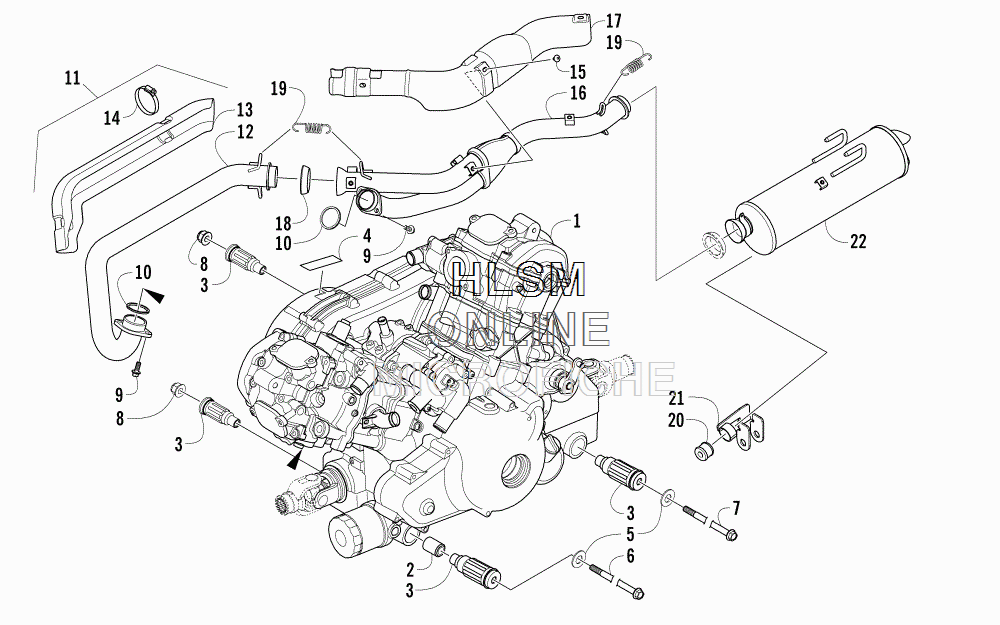

ENGINE AND EXHAUST для Arctic Cat TRV 1000 XT L7E RED [A2016TGW1P7EE] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0800-111 ENGINE, A950K H2 - ASSEMBLY (TRV) (INC. 2-3)
    ENGINE, A950K H2 - ASSEMBLY (TRV) (INC. 2-3)
  • 2
    0801-128 ...SPACER, ENGINE MOUNT
    ...SPACER, ENGINE MOUNT
  • 3
    0801-091 ...MOUNT, ENGINE
    ...MOUNT, ENGINE
  • 4
    0411-426 DECAL, WARNING - CLUTCH
    DECAL, WARNING - CLUTCH
  • 5
    0423-426 WASHER
    WASHER
  • 6
    0423-734 SCREW, CAP
    SCREW, CAP
  • 7
    0423-451 SCREW, CAP
    SCREW, CAP
  • 8
    8428-002 NUT, LOCK
    NUT, LOCK
  • 9
    8408-820 SCREW, CAP
    SCREW, CAP
  • 10
    0412-338 GASKET, EXHAUST
    GASKET, EXHAUST
  • 11
    0512-433 PIPE, EXHAUST - ASSEMBLY (INC. 12-14)
    PIPE, EXHAUST - ASSEMBLY (INC. 12-14)
  • 12
    0512-349 ...PIPE, EXHAUST
    ...PIPE, EXHAUST
  • 13
    0412-400 ...SHIELD, EXHAUST PIPE
    ...SHIELD, EXHAUST PIPE
  • 14
    0423-317 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 15
    8477-610 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0512-453 PIPE, EXHAUST - REAR
    PIPE, EXHAUST - REAR
  • 17
    0412-484 SHIELD, EXHAUST PIPE - REAR
    SHIELD, EXHAUST PIPE - REAR
  • 18
    0412-375 SEAL, EXHAUST
    SEAL, EXHAUST
  • 19
    0612-668 SPRING
    SPRING
  • 20
    0412-577 BUSHING
    BUSHING
  • 21
    1506-732 CHANNEL, MUFFLER SUPPORT
    CHANNEL, MUFFLER SUPPORT
