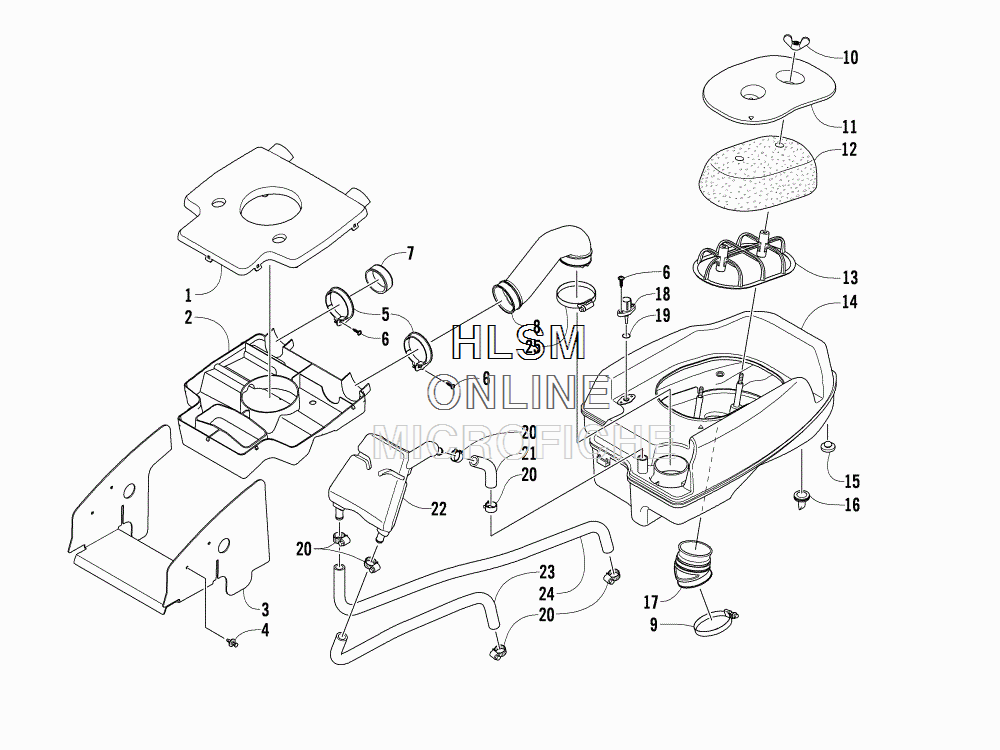

AIR INTAKE ASSEMBLY для Arctic Cat TRV 1000 XT L7E RED [A2016TGW1P7EE] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-091 DIVERTER, AIR - TOP
    DIVERTER, AIR - TOP
  • 2
    0413-093 DIVERTER, AIR - BOTTOM
    DIVERTER, AIR - BOTTOM
  • 3
    2406-509 SHROUD, SPLASH
    SHROUD, SPLASH
  • 4
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 5
    0423-551 CLAMP
    CLAMP
  • 6
    0423-342 SCREW, SELF-TAPPING - .1875 X .75
    SCREW, SELF-TAPPING - .1875 X .75
  • 7
    0413-096 CAP, AIR INTAKE - DIVERTER
    CAP, AIR INTAKE - DIVERTER
  • 8
    0470-583 BOOT, AIR INTAKE
    BOOT, AIR INTAKE
  • 9
    0423-019 CLAMP
    CLAMP
  • 10
    0423-716 NUT, WING
    NUT, WING
  • 11
    0470-832 LID, AIR BOX - FABRICATED
    LID, AIR BOX - FABRICATED
  • 12
    0470-828 FILTER, AIR
    FILTER, AIR
  • 13
    0470-731 CAGE, AIR FILTER
    CAGE, AIR FILTER
  • 14
    0570-221 HOUSING, AIR INTAKE
    HOUSING, AIR INTAKE
  • 15
    0406-877 BUMPER, SEAT - FRONT
    BUMPER, SEAT - FRONT
  • 16
    0470-858 VALVE, DRAIN
    VALVE, DRAIN
  • 17
    0470-638 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 18
    0430-055 SENSOR, AIR TEMPERATURE (INC. 19)
    SENSOR, AIR TEMPERATURE (INC. 19)
  • 19
    5507-224 ...O-RING
    ...O-RING
  • 20
    0623-028 CLAMP - 5/16-3/4 DIAMETER
    CLAMP - 5/16-3/4 DIAMETER
  • 21
    0410-198 HOSE, SEPARATOR TANK
    HOSE, SEPARATOR TANK
  • 22
    0470-718 TANK, SEPARATOR
    TANK, SEPARATOR
  • 23
    0410-196 HOSE, CRANKCASE
    HOSE, CRANKCASE
  • 24
    0410-208 HOSE, CRANKCASE
    HOSE, CRANKCASE
  • 25
    0423-066 CLAMP
    CLAMP
