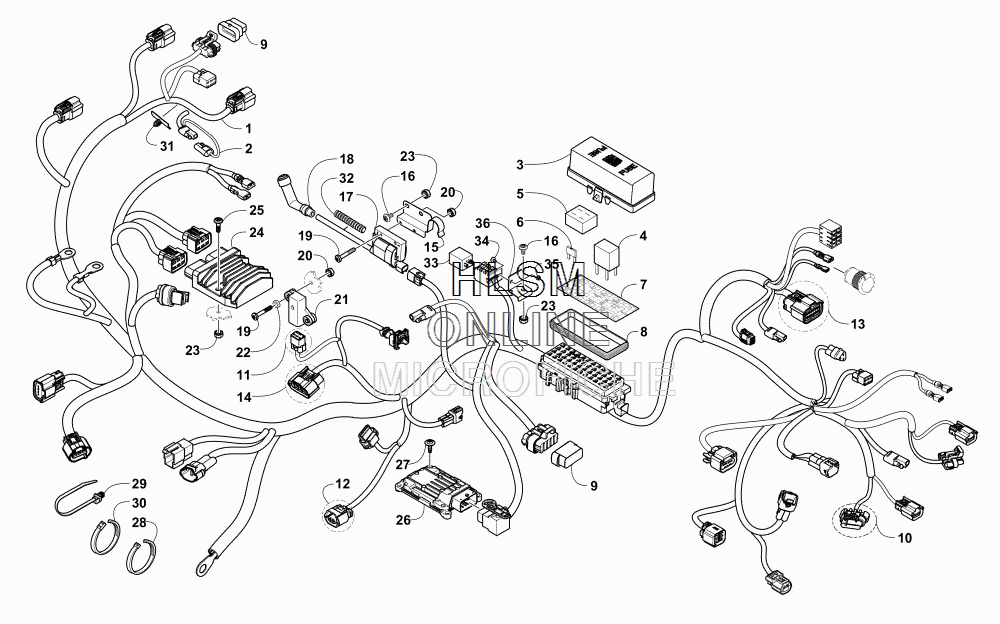

WIRING HARNESS ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS WHITE T3S [A2016XCT1PSTW] - 2016 года выпуска`
-
№АртикулНазвание
-
10486-596 HARNESS, MAIN (INC. 2-9)HARNESS, MAIN (INC. 2-9)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
50430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
60430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
60430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
60430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
74411-107 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
80430-086 ...SEAL...SEAL
-
90430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
101436-487 REPAIR KIT, CONNECTOR - HEADLIGHTREPAIR KIT, CONNECTOR - HEADLIGHT
-
111436-416 REPAIR KIT, CONNECTOR - TILT SENSORREPAIR KIT, CONNECTOR - TILT SENSOR
-
122436-082 REPAIR KIT, CONNECTOR - TPS SENSORREPAIR KIT, CONNECTOR - TPS SENSOR
-
132436-081 REPAIR KIT, CONNECTOR - PS GAUGEREPAIR KIT, CONNECTOR - PS GAUGE
-
141436-484 REPAIR KIT, CONNECTOR - 4P - MAPREPAIR KIT, CONNECTOR - 4P - MAP
-
150530-171 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
168476-612 SCREW, MACHINESCREW, MACHINE
-
170824-071 COIL, IGNITION - ASSEMBLY (INC. 18)COIL, IGNITION - ASSEMBLY (INC. 18)
-
180824-049 ...CAP, SPARK PLUG...CAP, SPARK PLUG
-
198468-425 SCREW, MACHINESCREW, MACHINE
-
200423-493 NUT W/WASHERNUT W/WASHER
-
210409-064 SENSOR, TILTSENSOR, TILT
-
220123-802 WASHERWASHER
-
230623-038 NUT W/WASHERNUT W/WASHER
-
240824-078 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
258476-625 SCREW, MACHINESCREW, MACHINE
-
260530-148 ECMECM
-
271423-198 SCREW, MACHINESCREW, MACHINE
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
290423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
301423-270 TIE, CABLE - DOUBLE LOOP - 11 IN.TIE, CABLE - DOUBLE LOOP - 11 IN.
-
310430-102 CLIP, ROUTINGCLIP, ROUTING
-
320716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
330430-132 FLASHER, RELAYFLASHER, RELAY
-
348476-516 SCREW, MACHINESCREW, MACHINE
-
358427-502 NUT, LOCKNUT, LOCK
-
360409-192 BRACKETBRACKET
