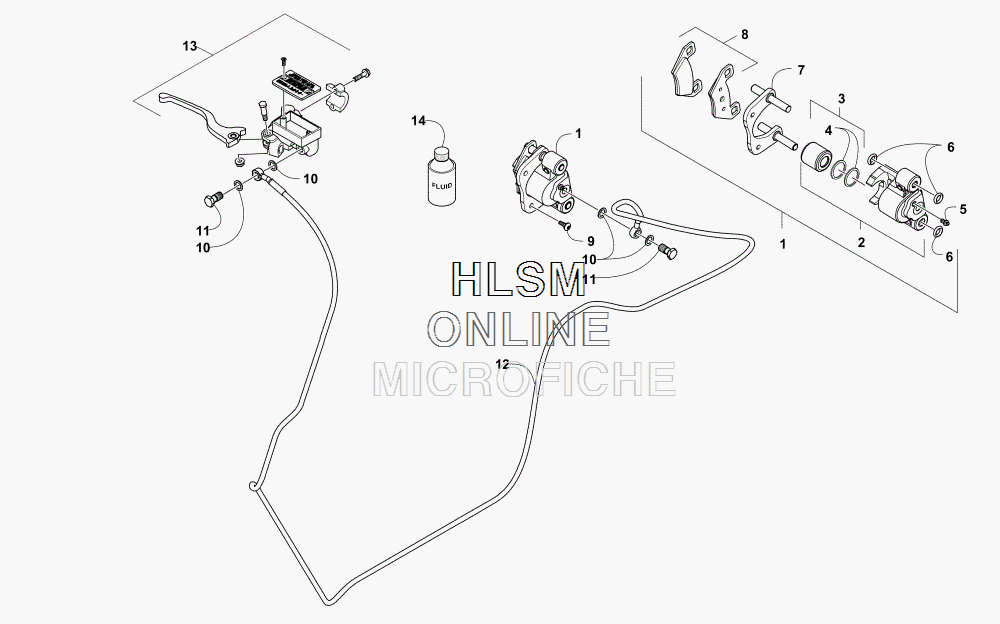

EMERGENCY BRAKE ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS WHITE T3S [A2016XCT1PSTW] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2502-270 CALIPER, BRAKE (INC. 2-8)
    CALIPER, BRAKE (INC. 2-8)
  • 2
    1436-160 ...HOUSING, CALIPER - ASSEMBLY (INC. 3-8)
    ...HOUSING, CALIPER - ASSEMBLY (INC. 3-8)
  • 3
    0502-606 ......PISTON/SEAL SET
    ......PISTON/SEAL SET
  • 4
    0502-607 ......SEAL SET
    ......SEAL SET
  • 5
    0502-609 ......VALVE, BLEED
    ......VALVE, BLEED
  • 6
    0502-608 ......O-RING, GUIDE - SET
    ......O-RING, GUIDE - SET
  • 7
    0502-605 ......BRACKET ASSEMBLY
    ......BRACKET ASSEMBLY
  • 8
    2502-271 ......PAD, BRAKE - SET
    ......PAD, BRAKE - SET
  • 9
    8408-826 SCREW, CAP
    SCREW, CAP
  • 10
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 11
    0423-413 BOLT, BANJO-FITTING
    BOLT, BANJO-FITTING
  • 12
    2402-257 HOSE
    HOSE
  • 13
    2402-260 EMERGENCY BRAKE ASSEMBLY
    EMERGENCY BRAKE ASSEMBLY
  • 14
    5639-848 FLUID, BRAKE - 12 OZ
    FLUID, BRAKE - 12 OZ
