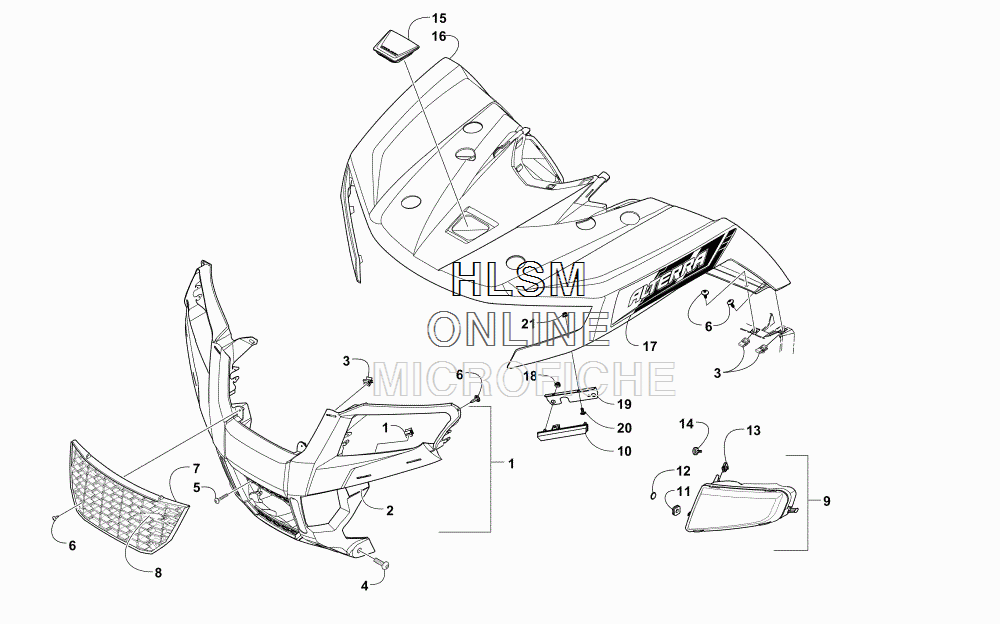

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES для Arctic Cat ALTERRA 700 XT EPS WHITE T3S [A2016XCT1PSTW] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7506-208 FASCIA, FRONT - W/REFLECTORS
    FASCIA, FRONT - W/REFLECTORS
  • 2
    4411-168 DECAL, REFLECTOR - RIGHT - AMBER
    DECAL, REFLECTOR - RIGHT - AMBER
  • 2
    4411-169 DECAL, REFLECTOR - LEFT - AMBER
    DECAL, REFLECTOR - LEFT - AMBER
  • 3
    1423-321 CLIP, RETAINING
    CLIP, RETAINING
  • 4
    8409-020 SCREW, CAP
    SCREW, CAP
  • 5
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    1423-284 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    4406-990 GRILLE, FRONT
    GRILLE, FRONT
  • 8
    4411-479 DECAL, AIRCAT
    DECAL, AIRCAT
  • 9
    0509-118 HEADLIGHT, LED - ASSEMBLY - RIGHT
    HEADLIGHT, LED - ASSEMBLY - RIGHT
  • 9
    0509-119 HEADLIGHT, LED - ASSEMBLY - LEFT
    HEADLIGHT, LED - ASSEMBLY - LEFT
  • 10
    0509-090 SIGNAL, TURN - FRONT - RIGHT
    SIGNAL, TURN - FRONT - RIGHT
  • 10
    0509-091 SIGNAL, TURN - FRONT - LEFT
    SIGNAL, TURN - FRONT - LEFT
  • 11
    4406-722 GROMMET - RIGHT
    GROMMET - RIGHT
  • 11
    4406-723 GROMMET - LEFT
    GROMMET - LEFT
  • 12
    1423-326 O-RING
    O-RING
  • 13
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 14
    2623-113 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 15
    4406-784 PLUG, ACCESS
    PLUG, ACCESS
  • 16
    7506-291 PANEL, FENDER - ASSEMBLY - WHITE
    PANEL, FENDER - ASSEMBLY - WHITE
  • 17
    5411-054 DECAL, FENDER - RIGHT
    DECAL, FENDER - RIGHT
  • 17
    5411-055 DECAL, FENDER - LEFT
    DECAL, FENDER - LEFT
  • 18
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 19
    7506-216 BRACKET - RIGHT
    BRACKET - RIGHT
  • 19
    7506-217 BRACKET - LEFT
    BRACKET - LEFT
  • 20
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8427-602 NUT, LOCK
    NUT, LOCK
