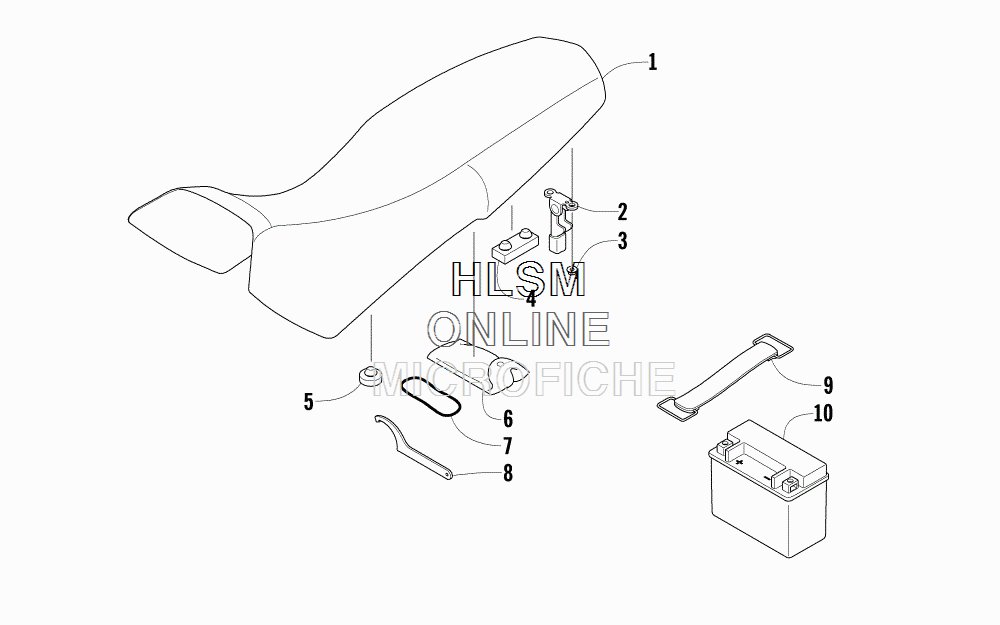

SEAT- BATTERY- AND TOOL KIT ASSEMBLIES для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BOSZ] (INTERNATIONAL) - 2015 года выпуска
-
№АртикулНазвание
-
13304-391 SEAT ASSEMBLY (INC. 2-3)SEAT ASSEMBLY (INC. 2-3)
-
23304-392 ...LATCH, SEAT...LATCH, SEAT
-
33305-929 ...NUT...NUT
-
43306-458 BUMPER, SEATBUMPER, SEAT
-
53306-470 BUMPER, SEAT - FRONTBUMPER, SEAT - FRONT
-
63304-400 KIT, TOOLKIT, TOOL
-
73303-242 RETAINER, TOOL KITRETAINER, TOOL KIT
-
81441-797 WRENCH, SPANNER (OPTIONAL)WRENCH, SPANNER (OPTIONAL)
-
93304-434 HOLD-DOWN, BATTERYHOLD-DOWN, BATTERY
-
103304-275 BATTERYBATTERY
Все узлы модели:
- AIR INTAKE ASSEMBLY
- BODY PANEL AND HEADLIGHT ASSEMBLY
- CAM CHAIN ASSEMBLY
- CARBURETOR ASSEMBLY
- CLUTCH ASSEMBLY
- COOLING ASSEMBLY
- COOLING DUCT ASSEMBLY
- CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
- ELECTRICAL AND WIRING HARNESS ASSEMBLY
- EXHAUST ASSEMBLY
- FRAME- TAILLIGHT- AND RELATED PARTS ASSEMBLY
- FRONT SUSPENSION ASSEMBLY
- FRONT WHEELS AND BRAKE ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS ASSEMBLY
- HYDRAULIC BRAKE ASSEMBLY
- LEFT CRANKCASE AND COVER ASSEMBLY
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR AXLE AND BRAKE ASSEMBLY
- REAR SUSPENSION ASSEMBLY
- REAR WHEEL ASSEMBLY
- REED VALVE ASSEMBLY
- RIGHT CRANKCASE AND COVER ASSEMBLY
- • SEAT- BATTERY- AND TOOL KIT ASSEMBLIES
- SHIFT LEVER ASSEMBLY
- STARTER MOTOR- MAGNETO- AND OIL PUMP ASSEMBLY
- STEERING ASSEMBLY
- TRANSMISSION ASSEMBLY
- TRANSMISSION CASE ASSEMBLY
