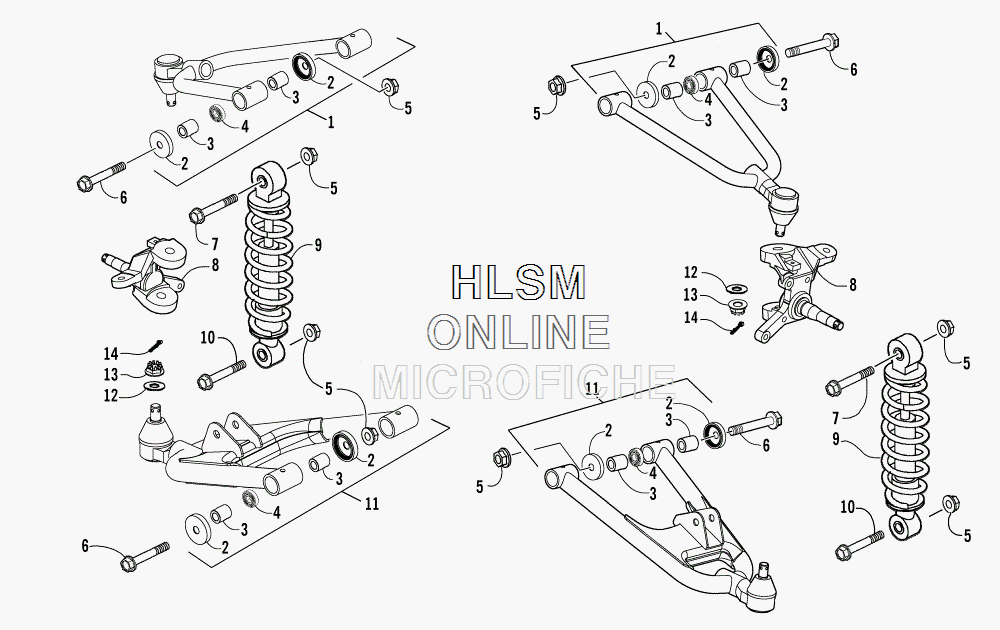

FRONT SUSPENSION ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BOSZ] (INTERNATIONAL) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3305-682 ARM, SWING - UPPER RIGHT - ASSEMBLY (PLATINUM) (INC. 2-4)
    ARM, SWING - UPPER RIGHT - ASSEMBLY (PLATINUM) (INC. 2-4)
  • 1
    3305-683 ARM, SWING - UPPER LEFT - ASSEMBLY (PLATINUM) (INC. 2-4)
    ARM, SWING - UPPER LEFT - ASSEMBLY (PLATINUM) (INC. 2-4)
  • 2
    3304-090 ...SEAL
    ...SEAL
  • 3
    3304-689 ...COLLAR, SWING ARM
    ...COLLAR, SWING ARM
  • 4
    3304-199 ...BEARING
    ...BEARING
  • 5
    3304-031 U-NUT
    U-NUT
  • 6
    3304-182 BOLT, FLANGE
    BOLT, FLANGE
  • 7
    3303-376 SCREW, CAP - HFH M10 X 1.25 X 40
    SCREW, CAP - HFH M10 X 1.25 X 40
  • 8
    3304-336 KNUCKLE - ASSEMBLY - RIGHT
    KNUCKLE - ASSEMBLY - RIGHT
  • 8
    3304-337 KNUCKLE - ASSEMBLY - LEFT
    KNUCKLE - ASSEMBLY - LEFT
  • 9
    3306-704 SHOCK/SPRING ASSEMBLY WHITE
    SHOCK/SPRING ASSEMBLY WHITE
  • 10
    3304-595 BOLT, FLANGE
    BOLT, FLANGE
  • 11
    3305-684 ARM, SWING - LOWER RIGHT - ASSEMBLY (PLATINUM) (INC. 2-4)
    ARM, SWING - LOWER RIGHT - ASSEMBLY (PLATINUM) (INC. 2-4)
  • 11
    3305-685 ARM, SWING - LOWER LEFT - ASSEMBLY (INC. 2-4)
    ARM, SWING - LOWER LEFT - ASSEMBLY (INC. 2-4)
  • 12
    3303-335 WASHER
    WASHER
  • 13
    3303-328 NUT, CASTLE
    NUT, CASTLE
  • 14
    3303-470 PIN, COTTER
    PIN, COTTER
