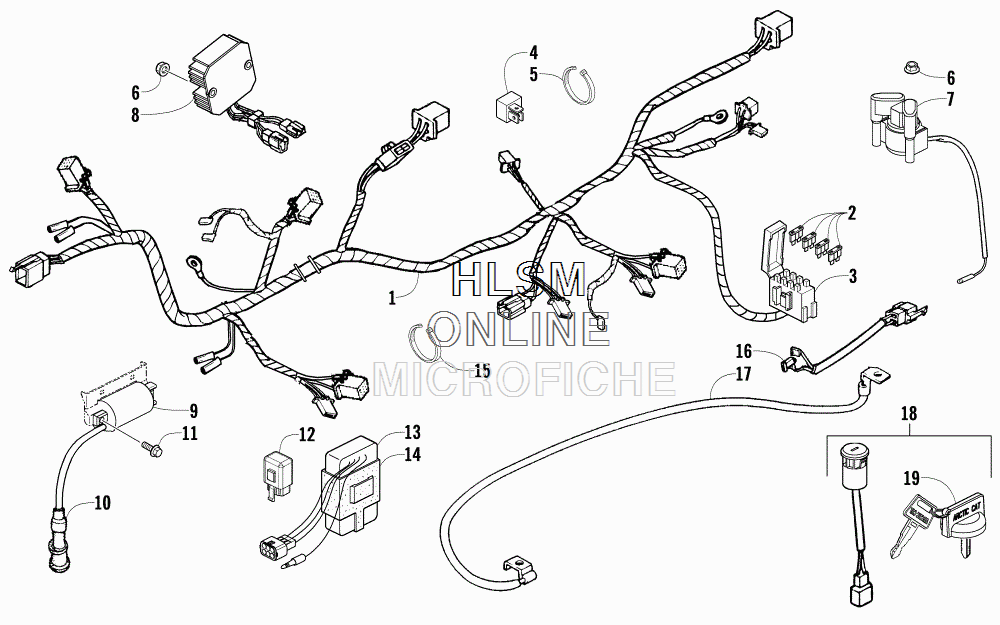

ELECTRICAL AND WIRING HARNESS ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BOSZ] (INTERNATIONAL) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-276 HARNESS, MAIN (INC. 2-4)
    HARNESS, MAIN (INC. 2-4)
  • 2
    3304-210 ...FUSE - 10 AMP
    ...FUSE - 10 AMP
  • 2
    3304-211 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 2
    3304-212 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 3
    3303-866 ...BOX, FUSE
    ...BOX, FUSE
  • 4
    3303-837 ...DIODE, NEUTRAL
    ...DIODE, NEUTRAL
  • 5
    3303-289 CABLE TIE
    CABLE TIE
  • 6
    3304-654 NUT, FLANGE - 6 MM
    NUT, FLANGE - 6 MM
  • 7
    3303-857 RELAY, STARTER
    RELAY, STARTER
  • 8
    3304-681 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 9
    3303-830 COIL, IGNITION (INC. 10)
    COIL, IGNITION (INC. 10)
  • 10
    3305-425 ...CAP, NOISE SUPPRESSION
    ...CAP, NOISE SUPPRESSION
  • 11
    3303-382 BOLT, FLANGE
    BOLT, FLANGE
  • 12
    3306-858 RELAY, START-IN-GEAR
    RELAY, START-IN-GEAR
  • 13
    3303-829 CDI UNIT (INC. 14)
    CDI UNIT (INC. 14)
  • 14
    3305-780 ...CUSHION, CDI UNIT
    ...CUSHION, CDI UNIT
  • 15
    3303-840 TIE, CABLE
    TIE, CABLE
  • 16
    3303-134 SUB CORD
    SUB CORD
  • 17
    3304-278 CABLE, BATTERY
    CABLE, BATTERY
  • 18
    3303-850 SWITCH, IGNITION - ASSEMBLY (INC. 19)
    SWITCH, IGNITION - ASSEMBLY (INC. 19)
  • 19
    3304-522 ...COVER, KEY
    ...COVER, KEY
  • 19
    3307-104 ...KEY, IGNITION - RIGHT-SIDE CUT
    ...KEY, IGNITION - RIGHT-SIDE CUT
  • 19
    3304-521 ...KEY, IGNITION - SET - LEFT-SIDE CUT
    ...KEY, IGNITION - SET - LEFT-SIDE CUT
