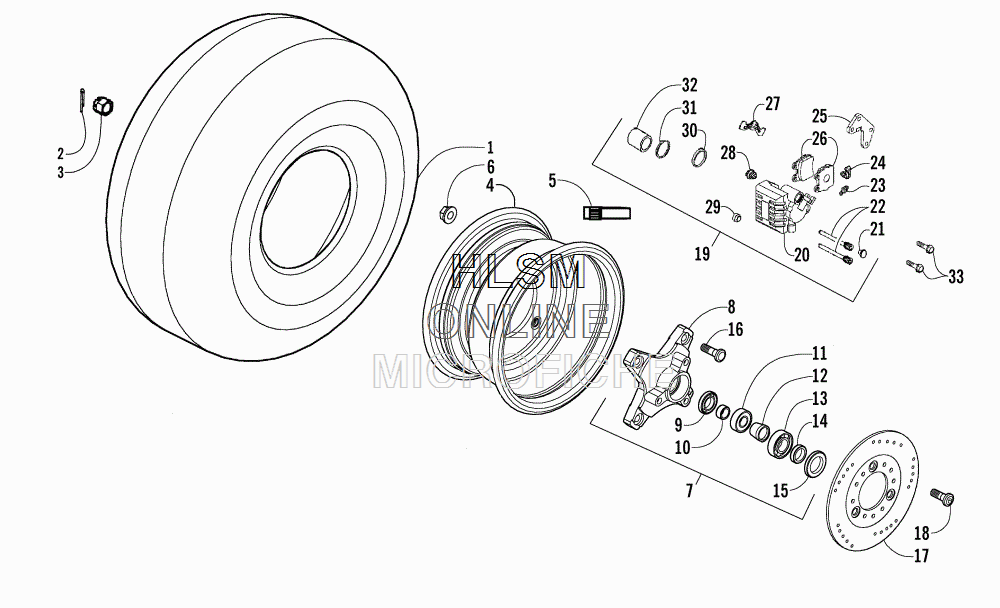

FRONT WHEELS AND BRAKE ASSEMBLY для Arctic Cat 300 DVX CAT GREEN [A2015KSF2BOSZ] (INTERNATIONAL) - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-312 TIRE - FRONT
    TIRE - FRONT
  • 2
    3303-340 PIN, COTTER
    PIN, COTTER
  • 3
    3303-330 NUT, LOCK
    NUT, LOCK
  • 4
    3304-310 WHEEL, FRONT
    WHEEL, FRONT
  • 5
    3304-562 STEM, VALVE
    STEM, VALVE
  • 6
    3304-028 NUT, LUG
    NUT, LUG
  • 7
    3304-311 HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)
    HUB, WHEEL - ASSEMBLY - FRONT (INC. 8-16)
  • 9
    3304-089 ...SEAL, OIL
    ...SEAL, OIL
  • 10
    3303-898 ...COLLAR, WHEEL - INSIDE
    ...COLLAR, WHEEL - INSIDE
  • 11
    3304-200 ...BEARING
    ...BEARING
  • 12
    3303-900 ...COLLAR, WHEEL - CENTER
    ...COLLAR, WHEEL - CENTER
  • 13
    3304-202 ...BEARING
    ...BEARING
  • 14
    3303-899 ...COLLAR, WHEEL - OUTSIDE
    ...COLLAR, WHEEL - OUTSIDE
  • 15
    3304-088 ...SEAL, OIL
    ...SEAL, OIL
  • 16
    3304-014 ...STUD
    ...STUD
  • 17
    3303-912 DISC, BRAKE - RIGHT
    DISC, BRAKE - RIGHT
  • 17
    3303-918 DISC, BRAKE - LEFT
    DISC, BRAKE - LEFT
  • 18
    3304-015 SCREW, SHOULDER
    SCREW, SHOULDER
  • 19
    3306-192 CALIPER ASSEMBLY - RIGHT (INC. 20-32)
    CALIPER ASSEMBLY - RIGHT (INC. 20-32)
  • 19
    3306-193 CALIPER ASSEMBLY - LEFT (INC. 20-32)
    CALIPER ASSEMBLY - LEFT (INC. 20-32)
  • 21
    3304-333 ...PLUG
    ...PLUG
  • 22
    3304-326 ...PIN
    ...PIN
  • 23
    3304-302 ...VALVE, BLEED
    ...VALVE, BLEED
  • 24
    3304-303 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 25
    3304-317 ...BRACKET, RIGHT
    ...BRACKET, RIGHT
  • 25
    3304-328 ...BRACKET, LEFT
    ...BRACKET, LEFT
  • 26
    3303-908 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 27
    3304-315 ...SPRING
    ...SPRING
  • 28
    3304-322 ...BOOT
    ...BOOT
  • 29
    3304-329 ...BUSHING
    ...BUSHING
  • 30
    3303-922 ...SEAL, PISTON - INNER
    ...SEAL, PISTON - INNER
  • 31
    3303-910 ...SEAL, PISTON - OUTER
    ...SEAL, PISTON - OUTER
  • 32
    3303-909 ...PISTON
    ...PISTON
  • 33
    3304-174 SCREW, CAP
    SCREW, CAP
