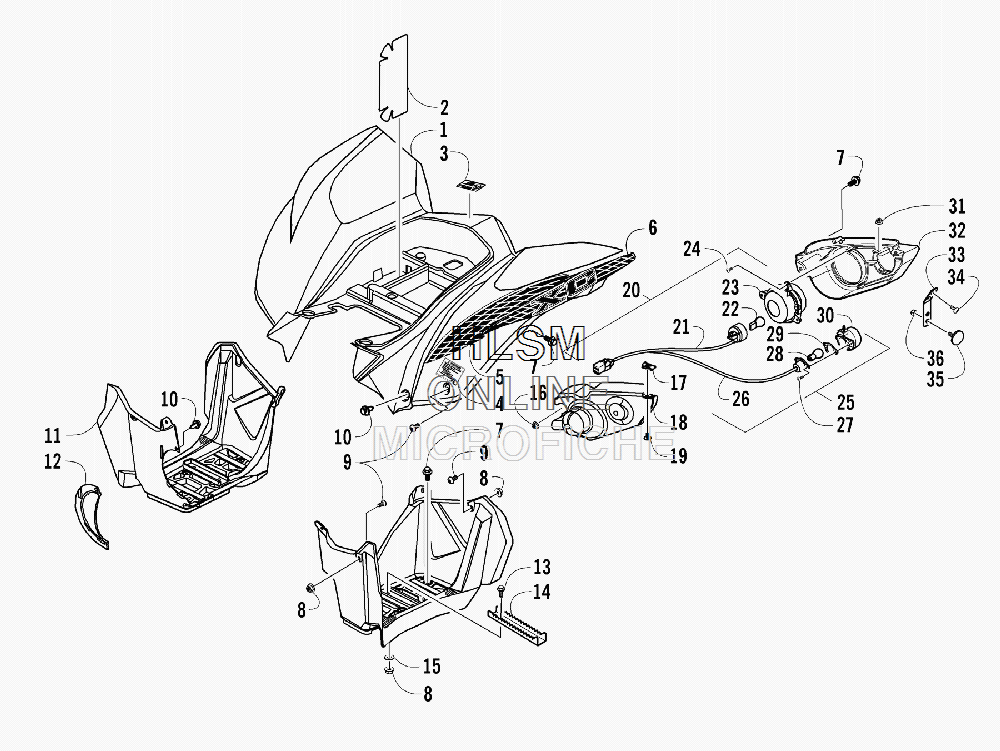

REAR BODY AND TAILLIGHT ASSEMBLY для Arctic Cat XC 450 4x4 [A2013KCK4CUST] - 2013 года выпуска
-
№АртикулНазвание
-
13306-778 PANEL, FENDER - REAR - GREEN (INC. 2-4)PANEL, FENDER - REAR - GREEN (INC. 2-4)
-
23306-543 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
31411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
42411-586 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
53411-030 DECAL, FENDER - RIGHTDECAL, FENDER - RIGHT
-
53411-031 DECAL, FENDER - LEFTDECAL, FENDER - LEFT
-
63411-032 DECAL, FENDER - "XC" - RIGHTDECAL, FENDER - "XC" - RIGHT
-
63411-033 DECAL, FENDER - "XC" - LEFTDECAL, FENDER - "XC" - LEFT
-
73304-587 SCREW, CAPSCREW, CAP
-
83304-431 NUT, LOCKNUT, LOCK
-
93304-404 SCREW, MACHINESCREW, MACHINE
-
103305-448 CLIP, RETAININGCLIP, RETAINING
-
113306-480 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
113306-481 FOOTWELL - LEFTFOOTWELL - LEFT
-
123306-488 PANEL, CLUTCH HOUSINGPANEL, CLUTCH HOUSING
-
133304-586 SCREW, CAPSCREW, CAP
-
141506-125 FOOTPEGFOOTPEG
-
153305-852 WASHERWASHER
-
160423-678 GROMMETGROMMET
-
173304-061 CLIP, U-NUTCLIP, U-NUT
-
183306-482 HOUSING, TAILLIGHT - INNER RIGHTHOUSING, TAILLIGHT - INNER RIGHT
-
183306-483 HOUSING, TAILLIGHT - INNER LEFTHOUSING, TAILLIGHT - INNER LEFT
-
193304-029 SCREW, CAPSCREW, CAP
-
203306-510 TAILLIGHT ASSEMBLY - RIGHT (INC. 21-24)TAILLIGHT ASSEMBLY - RIGHT (INC. 21-24)
-
203306-511 TAILLIGHT ASSEMBLY - LEFT (INC. 21-24)TAILLIGHT ASSEMBLY - LEFT (INC. 21-24)
-
213306-514 ...HARNESS, TAILLIGHT...HARNESS, TAILLIGHT
-
223303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
233306-512 ...LENS ASSEMBLY - RIGHT...LENS ASSEMBLY - RIGHT
-
233306-513 ...LENS ASSEMBLY - LEFT...LENS ASSEMBLY - LEFT
-
243304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
253306-515 RUNNING LIGHT - ASSEMBLY (INC. 26-30)RUNNING LIGHT - ASSEMBLY (INC. 26-30)
-
263306-516 ...HARNESS, RUNNING LIGHT...HARNESS, RUNNING LIGHT
-
283313-508 ...BULB, RUNNING LIGHT...BULB, RUNNING LIGHT
-
303306-506 ...LENS ASSEMBLY...LENS ASSEMBLY
-
313304-774 NUT, LOCKNUT, LOCK
-
323306-484 HOUSING, TAILLIGHT - OUTER RIGHTHOUSING, TAILLIGHT - OUTER RIGHT
-
323306-485 HOUSING, TAILLIGHT - OUTER LEFTHOUSING, TAILLIGHT - OUTER LEFT
-
333306-479 BRACKET, MOUNTING - REFLECTORBRACKET, MOUNTING - REFLECTOR
-
343305-703 SCREW, MACHINESCREW, MACHINE
-
353305-273 REFLECTOR - REDREFLECTOR - RED
-
363304-654 NUT, LOCKNUT, LOCK
