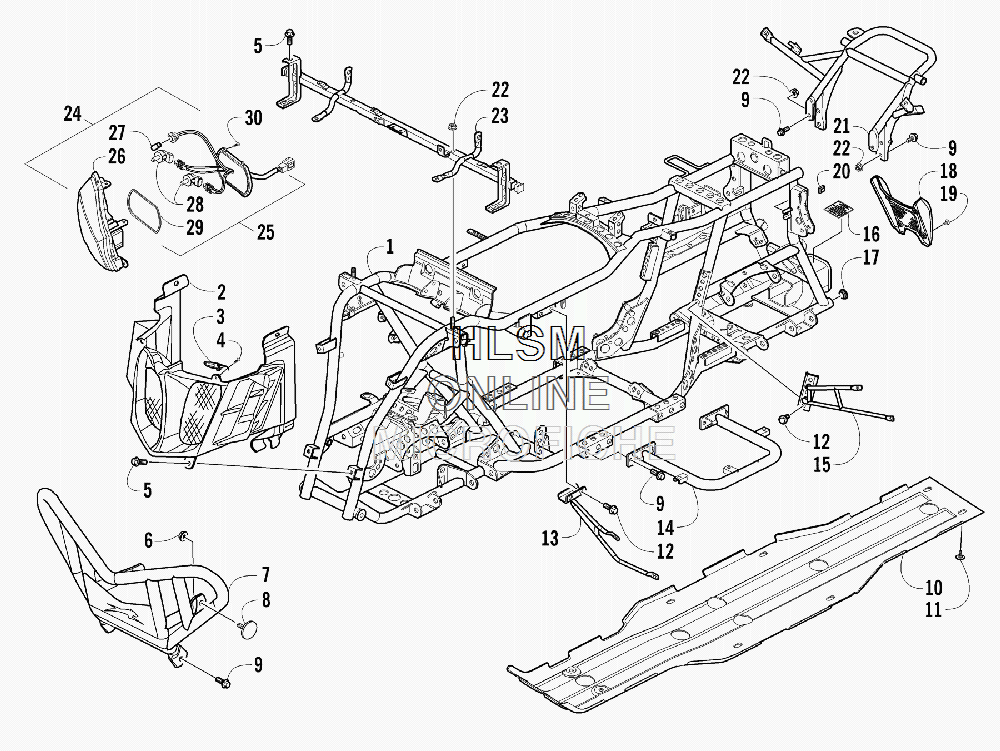

BUMPER- FRAME- AND HEADLIGHT ASSEMBLIES для Arctic Cat XC 450 4x4 [A2013KCK4CUST] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-521 FRAME, MAIN
    FRAME, MAIN
  • 2
    3306-453 FASCIA, LOWER FRONT
    FASCIA, LOWER FRONT
  • 3
    3306-541 BRACKET, SUPPORT - FRONT FASCIA
    BRACKET, SUPPORT - FRONT FASCIA
  • 4
    3304-651 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 5
    3304-587 SCREW, CAP
    SCREW, CAP
  • 6
    3304-654 NUT, LOCK
    NUT, LOCK
  • 7
    3306-531 BUMPER, FRONT
    BUMPER, FRONT
  • 8
    3305-272 REFLECTOR - AMBER
    REFLECTOR - AMBER
  • 9
    3304-543 SCREW, CAP
    SCREW, CAP
  • 10
    3313-755 PANEL, BELLY
    PANEL, BELLY
  • 11
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    3304-544 SCREW, CAP
    SCREW, CAP
  • 13
    3306-524 BRACKET, FENDER SUPPORT - FRONT RIGHT
    BRACKET, FENDER SUPPORT - FRONT RIGHT
  • 13
    3306-525 BRACKET, FENDER SUPPORT - FRONT LEFT
    BRACKET, FENDER SUPPORT - FRONT LEFT
  • 14
    3306-522 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 14
    3306-523 FOOTREST - LEFT
    FOOTREST - LEFT
  • 15
    3306-526 BRACKET, FENDER SUPPORT - REAR RIGHT
    BRACKET, FENDER SUPPORT - REAR RIGHT
  • 15
    3306-527 BRACKET, FENDER SUPPORT - REAR LEFT
    BRACKET, FENDER SUPPORT - REAR LEFT
  • 16
    1411-077 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
  • 17
    3306-530 PLUG
    PLUG
  • 18
    3306-489 FASCIA, REAR
    FASCIA, REAR
  • 19
    3304-404 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    3306-329 CUSHION
    CUSHION
  • 21
    3306-529 BRACKET, FENDER SUPPORT - REAR
    BRACKET, FENDER SUPPORT - REAR
  • 22
    3304-668 NUT, LOCK
    NUT, LOCK
  • 23
    3306-597 TUBE, SUPPORT
    TUBE, SUPPORT
  • 24
    3306-442 HEADLIGHT ASSEMBLY - RIGHT (INC. 25-30)
    HEADLIGHT ASSEMBLY - RIGHT (INC. 25-30)
  • 24
    3306-443 HEADLIGHT ASSEMBLY - LEFT (INC. 25-30)
    HEADLIGHT ASSEMBLY - LEFT (INC. 25-30)
  • 25
    3306-446 ...HARNESS, HEADLIGHT - ASSEMBLY
    ...HARNESS, HEADLIGHT - ASSEMBLY
  • 26
    3306-444 ...LENS ASSEMBLY - RIGHT
    ...LENS ASSEMBLY - RIGHT
  • 26
    3306-445 ...LENS ASSEMBLY - LEFT
    ...LENS ASSEMBLY - LEFT
  • 27
    3313-508 ...BULB, RUNNING LIGHT
    ...BULB, RUNNING LIGHT
  • 28
    3306-447 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
