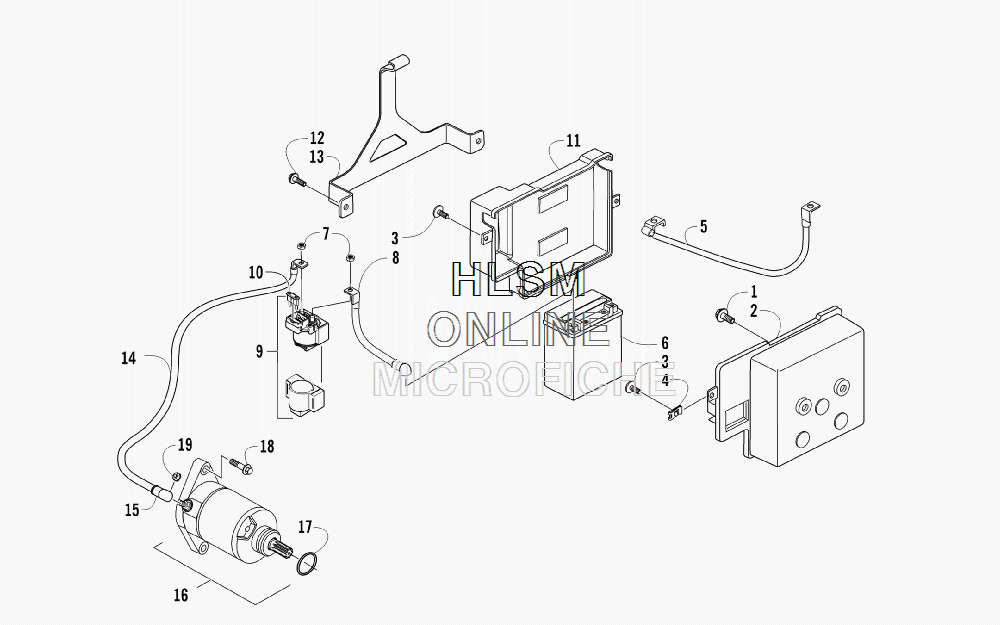

BATTERY AND STARTER ASSEMBLY для Arctic Cat XC 450 4x4 [A2013KCK4CUST] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3306-478 SCREW, CAP
    SCREW, CAP
  • 2
    3306-476 BOX, BATTERY
    BOX, BATTERY
  • 3
    3304-029 SCREW, CAP
    SCREW, CAP
  • 4
    3304-061 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    3306-441 CABLE, GROUND
    CABLE, GROUND
  • 6
    3306-301 BATTERY ASSEMBLY
    BATTERY ASSEMBLY
  • 7
    3304-654 NUT, LOCK
    NUT, LOCK
  • 8
    3306-518 CABLE, BATTERY/SOLENOID
    CABLE, BATTERY/SOLENOID
  • 9
    3306-519 SOLENOID (INC. 10)
    SOLENOID (INC. 10)
  • 10
    3304-212 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 11
    3306-477 COVER, BATTERY BOX
    COVER, BATTERY BOX
  • 12
    3304-553 SCREW, CAP
    SCREW, CAP
  • 13
    3306-475 BRACKET, MOUNTING - BATTERY BOX
    BRACKET, MOUNTING - BATTERY BOX
  • 14
    3306-440 CABLE, SOLENOID/STARTER (INC. 15)
    CABLE, SOLENOID/STARTER (INC. 15)
  • 16
    3305-954 MOTOR, STARTER - ASSEMBLY (INC. 17)
    MOTOR, STARTER - ASSEMBLY (INC. 17)
  • 17
    3304-104 ...O-RING
    ...O-RING
  • 18
    3305-946 SCREW, CAP
    SCREW, CAP
  • 19
    3304-011 NUT W/WASHER
    NUT W/WASHER
