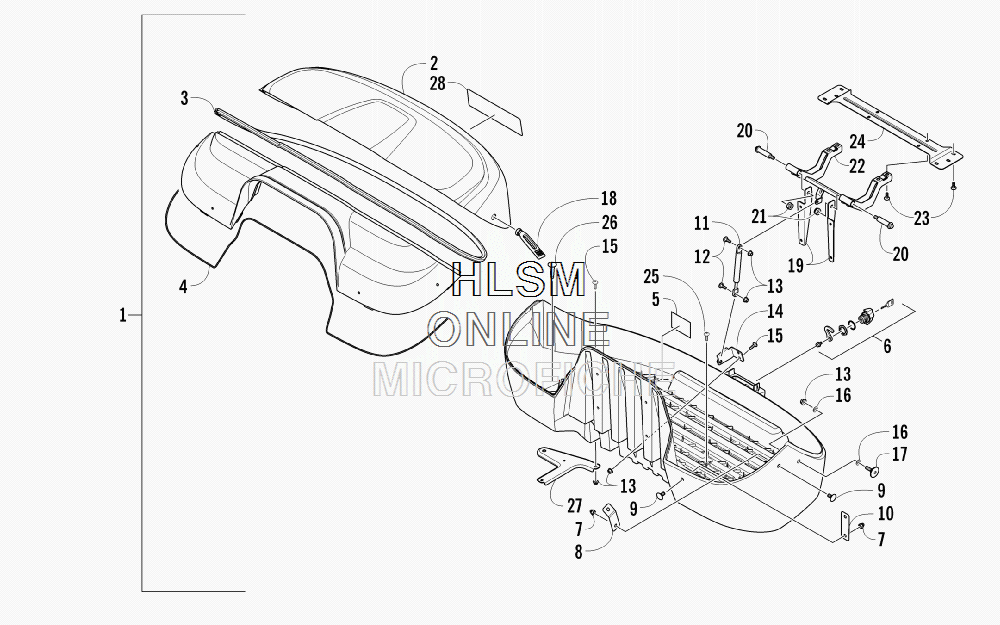

STORAGE BOX ASSEMBLY для Arctic Cat 700 CRUISER PS METALLIC GRAY [A2011TCT1PUSS] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-876 BOX, STORAGE - ASSEMBLY - METALLIC GRAY (INC. 2-24)
    BOX, STORAGE - ASSEMBLY - METALLIC GRAY (INC. 2-24)
  • 2
    4506-434 ...LID, STORAGE BOX - METALLIC GRAY
    ...LID, STORAGE BOX - METALLIC GRAY
  • 3
    2406-787 ...SEAL, STORAGE BOX LID
    ...SEAL, STORAGE BOX LID
  • 4
    2406-793 ...SEAL, STORAGE BOX TOP
    ...SEAL, STORAGE BOX TOP
  • 5
    1411-877 ...DECAL, WARNING - STORAGE BOX
    ...DECAL, WARNING - STORAGE BOX
  • 6
    2416-209 ...LATCH, STORAGE BOX LID
    ...LATCH, STORAGE BOX LID
  • 7
    0423-901 ...NUT, CAP
    ...NUT, CAP
  • 8
    2516-117 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 9
    0423-895 ...BOLT, CARRIAGE
    ...BOLT, CARRIAGE
  • 10
    2516-116 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 11
    2416-198 ...SUPPORT, LID
    ...SUPPORT, LID
  • 12
    0423-355 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 13
    0423-540 ...NUT, LOCK
    ...NUT, LOCK
  • 14
    2516-511 ...BRACKET, MOUNTING - LID SUPPORT
    ...BRACKET, MOUNTING - LID SUPPORT
  • 15
    8477-620 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 16
    8050-223 ...WASHER
    ...WASHER
  • 17
    1423-060 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 18
    1606-930 ...STRAP, HOLD-DOWN
    ...STRAP, HOLD-DOWN
  • 19
    2416-194 ...BRACKET, SUPPORT - HINGE - RIGHT
    ...BRACKET, SUPPORT - HINGE - RIGHT
  • 19
    2416-195 ...BRACKET, SUPPORT - HINGE - LEFT
    ...BRACKET, SUPPORT - HINGE - LEFT
  • 20
    0423-505 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 21
    8432-802 ...NUT, LOCK
    ...NUT, LOCK
  • 22
    2516-514 ...HINGE, LID
    ...HINGE, LID
  • 23
    8477-616 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 24
    2516-555 ...BRACE, LID - STORAGE BOX
    ...BRACE, LID - STORAGE BOX
  • 25
    0423-889 SCREW, CAP
    SCREW, CAP
  • 26
    2406-843 PLUG
    PLUG
  • 27
    2506-926 BRACKET, MOUNTING - SAFETY FLAG
    BRACKET, MOUNTING - SAFETY FLAG
  • 28
    2411-290 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
