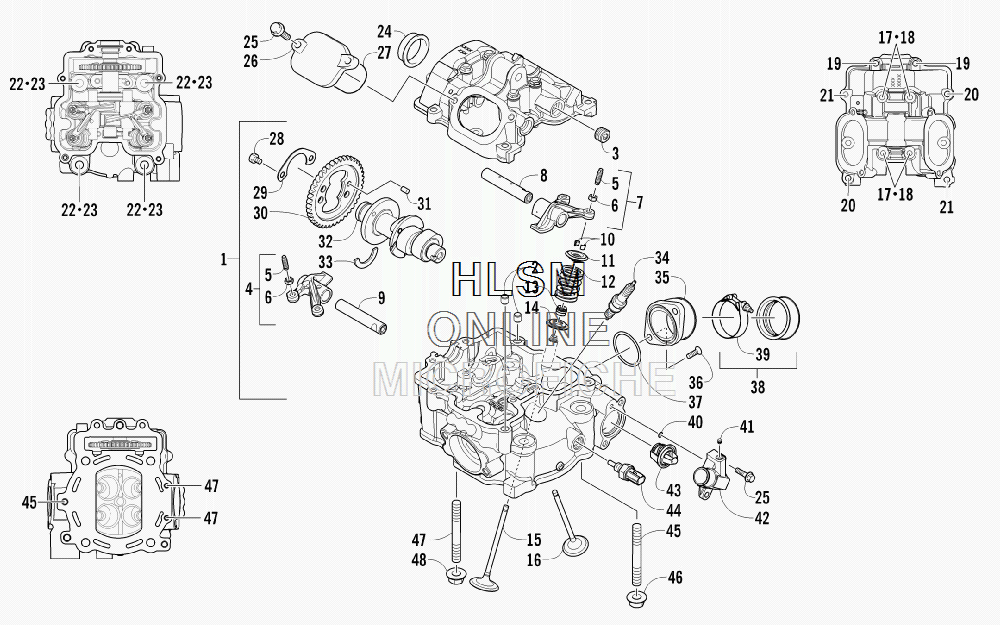

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY (UP TO ENGINE SERIAL NO. 039069) для Arctic Cat 700 CRUISER PS METALLIC GRAY [A2011TCT1PUSS] - 2011 года выпуска`
-
№АртикулНазвание
-
10808-184 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)HEAD, CYLINDER - ASSEMBLY (INC. 2-17)
-
20829-048 ...PIN, DOWEL...PIN, DOWEL
-
30831-083 ...PLUG, SHAFT...PLUG, SHAFT
-
40809-237 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)
-
50809-240 ......SCREW, ADJUSTER......SCREW, ADJUSTER
-
60827-059 ......NUT......NUT
-
70809-234 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)
-
80809-241 ...SHAFT, ROCKER ARM - INTAKE...SHAFT, ROCKER ARM - INTAKE
-
90809-242 ...SHAFT, ROCKER ARM - EXHAUST...SHAFT, ROCKER ARM - EXHAUST
-
100809-233 ...COTTER, VALVE...COTTER, VALVE
-
110809-232 ...RETAINER, SPRING...RETAINER, SPRING
-
120809-231 ...SPRING, VALVE...SPRING, VALVE
-
130830-186 ...SEAL, OIL...SEAL, OIL
-
140809-215 ...SEAT, SPRING - VALVE...SEAT, SPRING - VALVE
-
150809-228 ...VALVE, INTAKE...VALVE, INTAKE
-
160809-229 ...VALVE, EXHAUST...VALVE, EXHAUST
-
170826-149 ...SCREW, CAP...SCREW, CAP
-
180830-155 GASKETGASKET
-
190826-002 SCREW, CAP HFH M6 X 1 X 30SCREW, CAP HFH M6 X 1 X 30
-
200826-005 SCREW, CAP HFH M6 X 1 X 35SCREW, CAP HFH M6 X 1 X 35
-
210826-006 SCREW, CAP HFH M6 X 1 X 25SCREW, CAP HFH M6 X 1 X 25
-
220808-037 BOLT, HFH M10 X 1.25 - 195 (HEAD BOLT)BOLT, HFH M10 X 1.25 - 195 (HEAD BOLT)
-
230830-147 WASHERWASHER
-
240808-077 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
250826-007 SCREW, CAPSCREW, CAP
-
260808-003 CAP, INSPECTIONCAP, INSPECTION
-
270830-167 O-RINGO-RING
-
280826-034 SCREW, CAP HH-M6-1X10.5 W/THD LOCKSCREW, CAP HH-M6-1X10.5 W/THD LOCK
-
290828-004 PLATE, RETAINERPLATE, RETAINER
-
300809-002 SPROCKETSPROCKET
-
310829-049 PIN, DOWELPIN, DOWEL
-
320809-245 CAMSHAFTCAMSHAFT
-
330809-003 C-RINGC-RING
-
340217-799 SPARK PLUG - CPR8ESPARK PLUG - CPR8E
-
350470-668 FLANGE, INTAKE MANIFOLDFLANGE, INTAKE MANIFOLD
-
360826-008 SCREW, MACH-TSPH M6 X 1 X 20 W/THREADLOCSCREW, MACH-TSPH M6 X 1 X 20 W/THREADLOC
-
370830-090 O-RINGO-RING
-
380437-069 BOOT W/ CLAMP (INC. 39)BOOT W/ CLAMP (INC. 39)
-
391423-041 ...CLAMP...CLAMP
-
400830-168 O-RINGO-RING
-
410830-169 PLUGPLUG
-
420808-113 COVER, THERMOSTAT-W/BYPASSCOVER, THERMOSTAT-W/BYPASS
-
430808-078 THERMOSTAT (65 DEG)THERMOSTAT (65 DEG)
-
440808-124 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
450827-031 STUD, M8 X 1.25 X 80STUD, M8 X 1.25 X 80
-
468424-804 NUT, HEX-FLG M8X1.25 CL8 RIE SILNUT, HEX-FLG M8X1.25 CL8 RIE SIL
-
470827-054 STUD, M6 X 1.0 X 76STUD, M6 X 1.0 X 76
-
488424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SILNUT, HEX-FLG M6X1.0 CL8 RIE SIL
