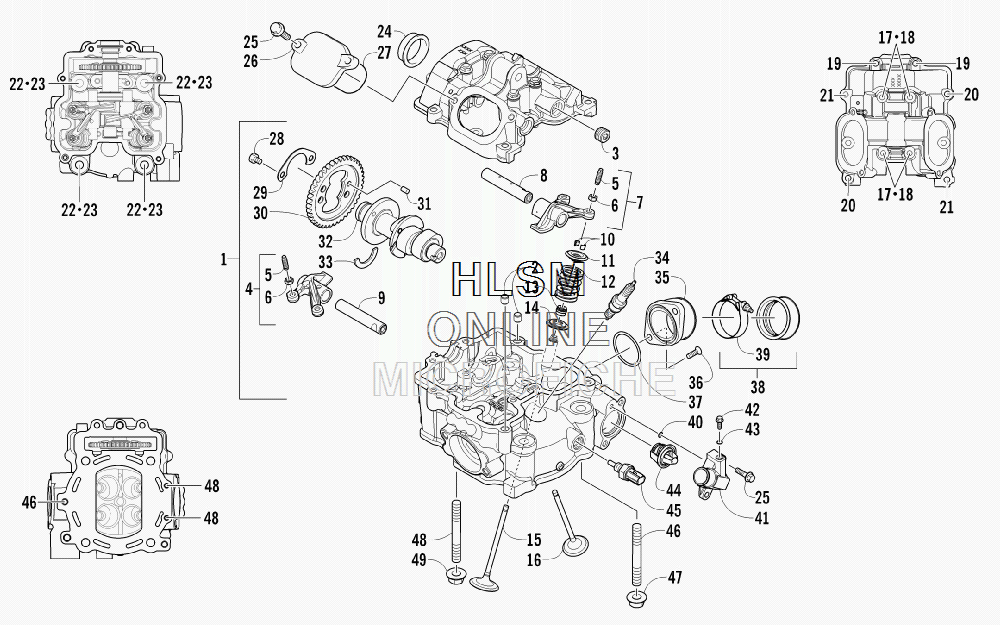

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY (ENGINE SERIAL NO. 0309070 AND UP) для Arctic Cat 700 CRUISER PS METALLIC GRAY [A2011TCT1PUSS] - 2011 года выпуска

№

Артикул

Название
1

0808-184 HEAD, CYLINDER - ASSEMBLY (INC. 2-17)

HEAD, CYLINDER - ASSEMBLY (INC. 2-17)

103 990 ₽
2

0829-048 ...PIN, DOWEL

...PIN, DOWEL

230 ₽
3

0831-083 ...PLUG, SHAFT

...PLUG, SHAFT

290 ₽
4

0809-237 ...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)

...ARM, VALVE ROCKER - EXHAUST (INC. TWO NO. 5-6)

33 270 ₽
5

0809-240 ......SCREW, ADJUSTER

......SCREW, ADJUSTER

40 ₽
6

0827-059 ......NUT

......NUT

40 ₽
7

0809-234 ...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)

...ARM, VALVE ROCKER - INTAKE (INC. TWO NO. 5-6)

33 270 ₽
8

0809-241 ...SHAFT, ROCKER ARM - INTAKE

...SHAFT, ROCKER ARM - INTAKE

3 740 ₽
9

0809-242 ...SHAFT, ROCKER ARM - EXHAUST

...SHAFT, ROCKER ARM - EXHAUST

3 740 ₽
10

0809-233 ...COTTER, VALVE

...COTTER, VALVE

400 ₽
11

0809-232 ...RETAINER, SPRING

...RETAINER, SPRING

2 490 ₽
12

0809-231 ...SPRING, VALVE

...SPRING, VALVE

900 ₽
13

0830-186 ...SEAL, OIL

...SEAL, OIL

1 660 ₽
14

0809-215 ...SEAT, SPRING - VALVE

...SEAT, SPRING - VALVE

1 660 ₽
15

0809-228 ...VALVE, INTAKE-31.6MM

...VALVE, INTAKE-31.6MM

4 780 ₽
16

0809-229 ...VALVE, EXHAUST-27.9MM

...VALVE, EXHAUST-27.9MM

9 560 ₽
17

0826-149 ...SCREW, CAP HFH M6X1X55

...SCREW, CAP HFH M6X1X55

2 070 ₽
18

0830-155 GASKET

GASKET

480 ₽
19

0826-002 SCREW, CAP HFH M6 X 1 X 30

SCREW, CAP HFH M6 X 1 X 30

230 ₽
20

0826-005 SCREW, CAP HFH M6 X 1 X 35

SCREW, CAP HFH M6 X 1 X 35

360 ₽
21

0826-006 SCREW, CAP HFH M6 X 1 X 25

SCREW, CAP HFH M6 X 1 X 25

150 ₽
22

0808-037 BOLT, HFH M10 X 1.25 - 195 (HEAD BOLT)

BOLT, HFH M10 X 1.25 - 195 (HEAD BOLT)

3 530 ₽
23

0830-147 WASHER, STEEL,10X22X2.3

WASHER, STEEL,10X22X2.3

150 ₽
24

0808-077 PLUG, CYLINDER HEAD

PLUG, CYLINDER HEAD

1 870 ₽
25

0826-007 SCREW, CAP HFH M6 X 1 X 20

SCREW, CAP HFH M6 X 1 X 20

170 ₽
26

0808-003 CAP, INSPECTION

CAP, INSPECTION

2 070 ₽
27

0830-167 O-RING

O-RING

560 ₽
28

0826-034 SCREW, CAP HH-M6-1X10.5 W/THD LOCK

SCREW, CAP HH-M6-1X10.5 W/THD LOCK

110 ₽
29

0828-004 PLATE, RETAINER

PLATE, RETAINER

460 ₽
30

0809-002 SPROCKET

SPROCKET

5 610 ₽
31

0829-049 PIN, DOWEL

PIN, DOWEL

210 ₽
32

0809-245 CAMSHAFT

CAMSHAFT

59 900 ₽
33

0809-003 C-RING

C-RING

2 280 ₽
34

0217-799 SPARK PLUG - CPR8E

SPARK PLUG - CPR8E

1 660 ₽
35

0470-668 FLANGE, INTAKE MANIFOLD

FLANGE, INTAKE MANIFOLD

4 570 ₽
36

0826-008 SCREW, MACH-TSPH M6 X 1 X 20 W/THREADLOC

SCREW, MACH-TSPH M6 X 1 X 20 W/THREADLOC

230 ₽
37

0830-090 O-RING

O-RING

170 ₽
38

0437-069 BOOT W/ CLAMP (INC. 39)

BOOT W/ CLAMP (INC. 39)

3 110 ₽
39

1423-041 ...CLAMP

...CLAMP

3 110 ₽
40

0830-168 O-RING

O-RING

170 ₽
41

0808-208 COVER,THERMOSTAT W/BYPASS-ASSY (INC. 42)

COVER,THERMOSTAT W/BYPASS-ASSY (INC. 42)

7 480 ₽
42

8408-512 ...SCREW, CAP

...SCREW, CAP

460 ₽
43

0423-182 ...O-RING

...O-RING

190 ₽
44

0808-078 THERMOSTAT (65 DEG)

THERMOSTAT (65 DEG)

5 400 ₽
45

0808-124 SENSOR, ENGINE COOLANT TEMPERATURE

SENSOR, ENGINE COOLANT TEMPERATURE

3 950 ₽
46

0827-031 STUD, M8 X 1.25 X 80

STUD, M8 X 1.25 X 80

880 ₽
47

8424-804 NUT, HEX-FLG M8X1.25 CL8 RIE SIL

NUT, HEX-FLG M8X1.25 CL8 RIE SIL

150 ₽
48

0827-054 STUD, M6 X 1.0 X 76

STUD, M6 X 1.0 X 76

830 ₽
49

8424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SIL

NUT, HEX-FLG M6X1.0 CL8 RIE SIL

90 ₽
