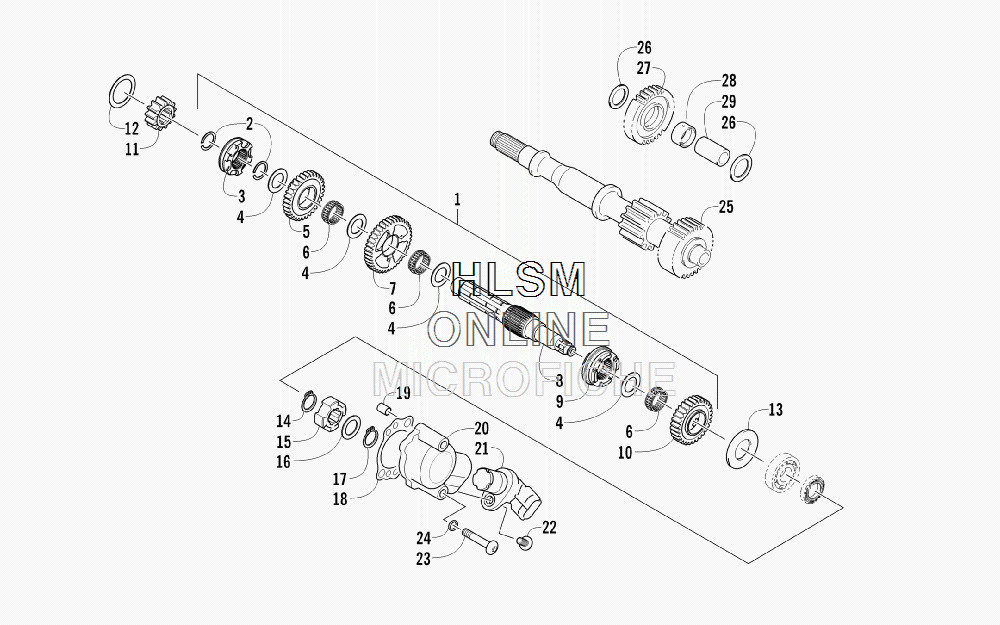

SECONDARY TRANSMISSION ASSEMBLY (ENGINE SERIAL NO. 0264070 AND UP) для Arctic Cat 700 CRUISER PS METALLIC GRAY [A2011TCT1PUSS] - 2011 года выпуска`
-
№АртикулНазвание
-
10822-124 COUNTERSHAFT ASSY-SD (NO DRIVE GEAR) (INC. 2-10)COUNTERSHAFT ASSY-SD (NO DRIVE GEAR) (INC. 2-10)
-
20831-085 ...RING, RETAINING...RING, RETAINING
-
30822-120 ...GEAR SELECT, REVERSE...GEAR SELECT, REVERSE
-
40822-121 ...SHIM...SHIM
-
50822-119 ...GEAR, REVERSE-DRIVEN-32T...GEAR, REVERSE-DRIVEN-32T
-
60832-082 ...BEARING, ROLLER NEEDLE-25X30X13...BEARING, ROLLER NEEDLE-25X30X13
-
70822-114 ...GEAR, DRIVEN-LOW-40T...GEAR, DRIVEN-LOW-40T
-
80822-113 ...COUNTERSHAFT...COUNTERSHAFT
-
90822-116 ...GEAR SELECT, SLIDING...GEAR SELECT, SLIDING
-
100822-115 ...GEAR, DRIVEN-HIGH-30T...GEAR, DRIVEN-HIGH-30T
-
110822-125 GEAR, SPUR - 13T-13T 20° PAGEAR, SPUR - 13T-13T 20° PA
-
120828-019 WASHER, THRUSTWASHER, THRUST
-
130828-011 WASHERWASHER
-
140831-040 RING, RETAININGRING, RETAINING
-
150822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
160828-069 WASHER, THRUSTWASHER, THRUST
-
170831-039 RING, RETAININGRING, RETAINING
-
180830-129 GASKETGASKET
-
190829-023 PIN, DOWELPIN, DOWEL
-
200822-049 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
210824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
228468-620 SCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X20 CL8.8 BLK
-
238468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
240830-107 GASKETGASKET
-
250822-001 DRIVESHAFTDRIVESHAFT
-
260828-016 WASHER, THRUSTWASHER, THRUST
-
270822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
280822-012 BUSHINGBUSHING
-
290822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
