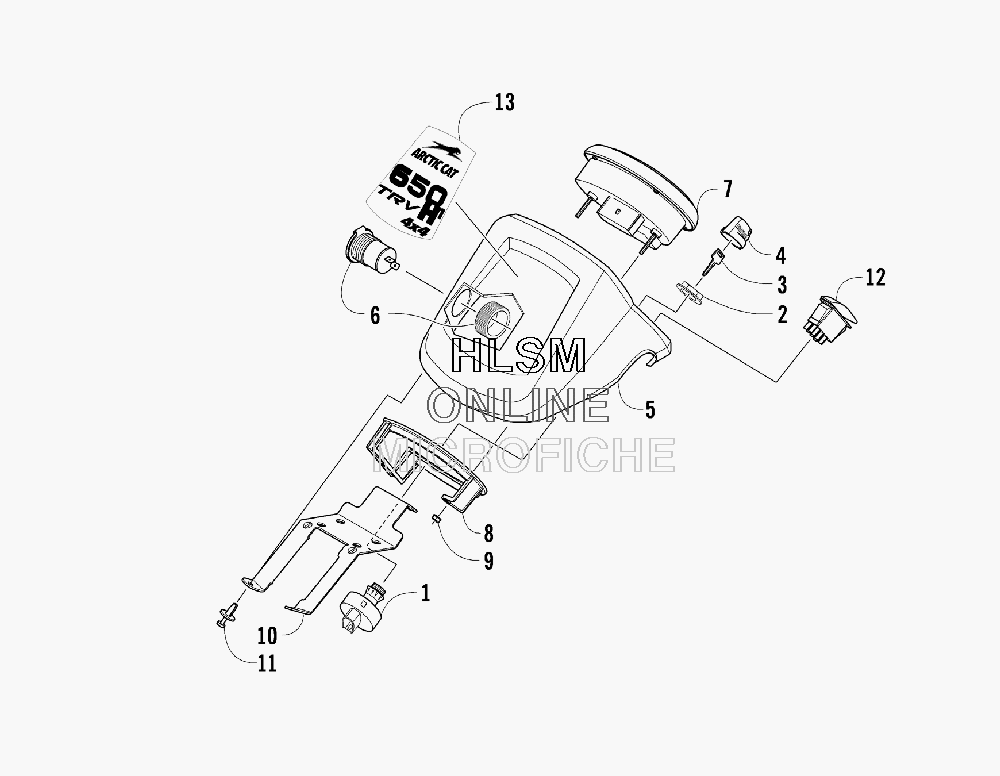

INSTRUMENT POD ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0430-090 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
    SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
  • 2
    0430-050 NUT, RETAINING
    NUT, RETAINING
  • 3
    0430-042 KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
    KEY, IGNITION (Y SERIES - LEFT-SIDE CUT)
  • 3
    0430-043 KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
    KEY, IGNITION (Z SERIES - RIGHT-SIDE CUT)
  • 4
    0430-054 COVER, KEY
    COVER, KEY
  • 5
    0405-312 INSTRUMENT POD
    INSTRUMENT POD
  • 6
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 7
    0520-056 GAUGE, ANALOG/LCD
    GAUGE, ANALOG/LCD
  • 8
    0420-065 BRACKET, RETAINING
    BRACKET, RETAINING
  • 9
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 10
    2506-470 BRACKET, MOUNTING - INSTRUMENT POD
    BRACKET, MOUNTING - INSTRUMENT POD
  • 11
    0423-535 RIVET, PLASTIC-REINSTALLABLE
    RIVET, PLASTIC-REINSTALLABLE
  • 12
    0409-120 SWITCH, DIFFERENTIALOCK
    SWITCH, DIFFERENTIALOCK
  • 13
    1411-552 DECAL, INSTRUMENT POD
    DECAL, INSTRUMENT POD
