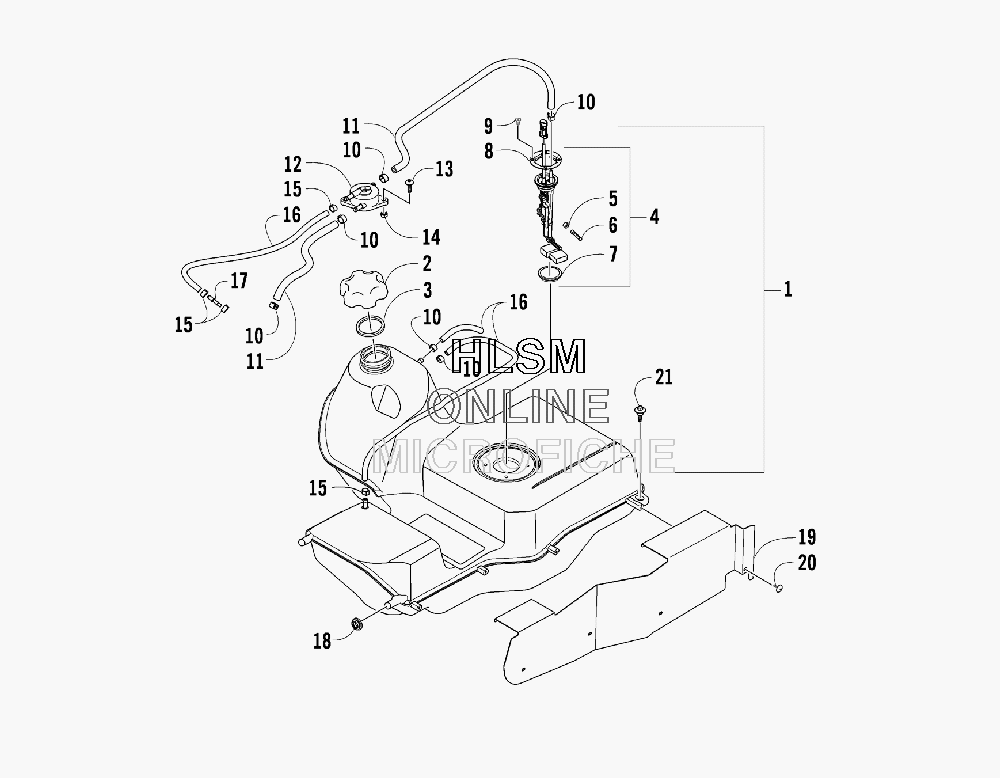

GAS TANK ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-261 TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-9)
    TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-9)
  • 2
    0470-438 CAP, GAS TANK (INC. 3)
    CAP, GAS TANK (INC. 3)
  • 3
    0109-733 GASKET, GAS TANK CAP
    GASKET, GAS TANK CAP
  • 4
    0570-253 SENSOR, FUELEVE(INC. 5-7)
    SENSOR, FUELEVE(INC. 5-7)
  • 5
    0423-603 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    0470-475 FILTER, FUEL
    FILTER, FUEL
  • 7
    0470-521 SEAL, FUELEVESENSOR
    SEAL, FUELEVESENSOR
  • 8
    0470-639 PLATE, MOUNTING - FUELEVESENSOR
    PLATE, MOUNTING - FUELEVESENSOR
  • 9
    1623-158 SCREW, PLASTITE-TSPNH 1/4-10X.500 Z & BLK
    SCREW, PLASTITE-TSPNH 1/4-10X.500 Z & BLK
  • 10
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 12
    0470-758 PUMP, FUEL
    PUMP, FUEL
  • 13
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 15
    0423-689 CLAMP, HOSE
    CLAMP, HOSE
  • 16
    0410-143 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 17
    0470-702 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 18
    0423-460 GROMMET, GAS TANK
    GROMMET, GAS TANK
  • 19
    0470-715 SHIELD, GAS TANK
    SHIELD, GAS TANK
  • 20
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 21
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
