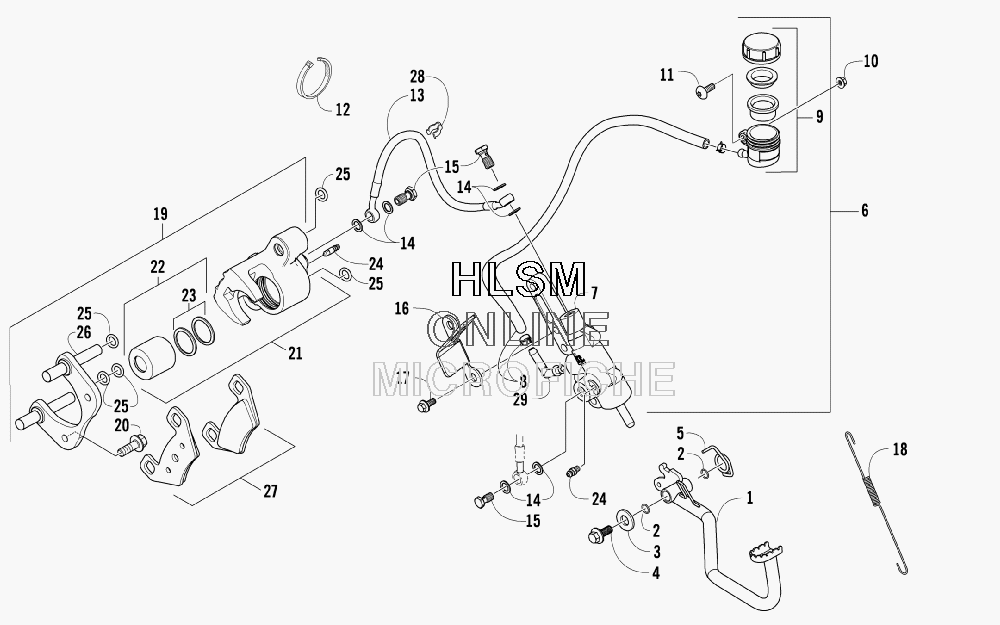

AUXILIARY BRAKE ASSEMBLY для Arctic Cat 650 H1 TRV (CAT GREEN) [A2009TBS4BUSZ] - 2009 года выпуска`
-
№АртикулНазвание
-
1502-294 MASTER CYLINDER REPLACEMENT KITMASTER CYLINDER REPLACEMENT KIT
-
11502-063 LEVER, BRAKELEVER, BRAKE
-
21602-213 O-RINGO-RING
-
38050-252 WASHERWASHER
-
48408-816 SCREW, CAPSCREW, CAP
-
50502-807 SPRING, BRAKE LEVER-BLACKSPRING, BRAKE LEVER-BLACK
-
61502-293 BRAKE ASSEMBLY (INC. 7-9)BRAKE ASSEMBLY (INC. 7-9)
-
91502-155 RESERVOIR, BRAKE W/CLAMPRESERVOIR, BRAKE W/CLAMP
-
100623-038 NUT W/WASHERNUT W/WASHER
-
118476-616 SCREW, MACHINESCREW, MACHINE
-
120123-788 CABLE TIE - 8 IN.CABLE TIE - 8 IN.
-
131502-140 HOSE, BRAKEHOSE, BRAKE
-
140423-178 WASHER, CRUSHWASHER, CRUSH
-
150423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
160502-840 BRACKET, SWITCH-BLACKBRACKET, SWITCH-BLACK
-
178408-625 SCREW, CAPSCREW, CAP
-
180502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
191436-163 CALIPER, BRAKE(INC. 20-23, ONE NO. 24, AND 25-27)CALIPER, BRAKE(INC. 20-23, ONE NO. 24, AND 25-27)
-
208408-821 SCREW, CAPSCREW, CAP
-
211436-161 HOUSING, CALIPER-ASSEMBLY-RIGHT REAR(INC.20, 22-23, AND ONE NO. 24)HOUSING, CALIPER-ASSEMBLY-RIGHT REAR(INC.20, 22-23, AND ONE NO. 24)
-
220502-606 PISTON/SEASET (INC. 23)PISTON/SEASET (INC. 23)
-
230502-607 SEASETSEASET
-
240502-609 VALVE, BLEEDVALVE, BLEED
-
250502-608 O-RING, GUIDE - SETO-RING, GUIDE - SET
-
260502-605 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
271436-165 KIT-PAD, BRAKE-SET (TYPE 97)KIT-PAD, BRAKE-SET (TYPE 97)
-
281502-115 CLIP, BRAKE HOSECLIP, BRAKE HOSE
-
291502-296 ADAPTER, HOSEADAPTER, HOSE
