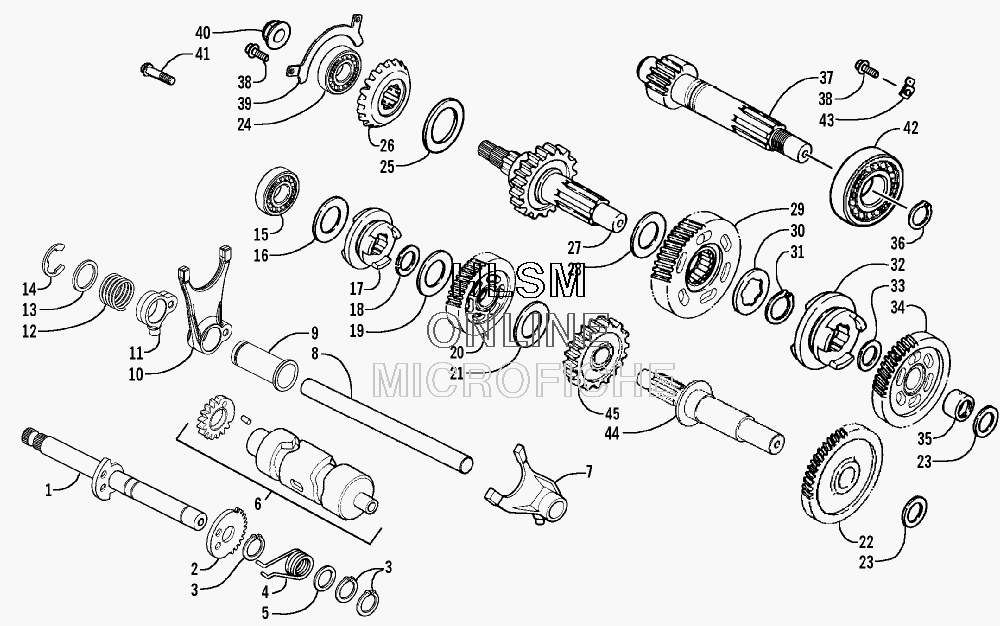

TRANSMISSION ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-812 SPINDLE, GEAR SHIFT CAM
    SPINDLE, GEAR SHIFT CAM
  • 2
    3303-815 GEAR, SHIFT HANDLE
    GEAR, SHIFT HANDLE
  • 3
    3304-153 CIRCLIP
    CIRCLIP
  • 4
    3303-813 SPRING, GEAR SHIFT RETURN
    SPRING, GEAR SHIFT RETURN
  • 5
    3304-036 WASHER, THRUST
    WASHER, THRUST
  • 6
    3305-552 CAM, GEAR SHIFT - ASSEMBLY
    CAM, GEAR SHIFT - ASSEMBLY
  • 7
    3303-805 FORK, GEAR SHIFT - LEFT
    FORK, GEAR SHIFT - LEFT
  • 8
    3303-806 SHAFT, GEAR SHIFT FORK
    SHAFT, GEAR SHIFT FORK
  • 9
    3303-807 SLEEVE, FORK
    SLEEVE, FORK
  • 10
    3303-804 FORK, GEAR SHIFT - RIGHT
    FORK, GEAR SHIFT - RIGHT
  • 11
    3303-808 GUIDE, RIGHT FORK
    GUIDE, RIGHT FORK
  • 12
    3304-821 SPRING, CAM
    SPRING, CAM
  • 13
    3304-051 WASHER
    WASHER
  • 14
    3304-154 E-RING
    E-RING
  • 15
    3304-197 BEARING
    BEARING
  • 16
    3304-637 WASHER, THRUST
    WASHER, THRUST
  • 17
    3305-657 SHIFT, FORWARD - DOG
    SHIFT, FORWARD - DOG
  • 18
    3304-638 CIRCLIP
    CIRCLIP
  • 19
    3304-046 WASHER
    WASHER
  • 20
    3305-656 GEAR, FORWARD
    GEAR, FORWARD
  • 21
    3305-674 WASHER, THRUST
    WASHER, THRUST
  • 22
    3303-793 GEAR, COUNTER
    GEAR, COUNTER
  • 23
    3305-554 WASHER, THRUST
    WASHER, THRUST
  • 24
    3304-194 BEARING
    BEARING
  • 25
    3304-525 SHIM, DRIVE BEVEL GEAR - A
    SHIM, DRIVE BEVEL GEAR - A
  • 25
    3304-526 SHIM, DRIVE BEVEL GEAR - B
    SHIM, DRIVE BEVEL GEAR - B
  • 25
    3304-527 SHIM, DRIVE BEVEL GEAR - C
    SHIM, DRIVE BEVEL GEAR - C
  • 25
    3304-528 SHIM, DRIVE BEVEL GEAR - D
    SHIM, DRIVE BEVEL GEAR - D
  • 25
    3304-529 SHIM, DRIVE BEVEL GEAR - E
    SHIM, DRIVE BEVEL GEAR - E
  • 25
    3304-530 SHIM, DRIVE BEVEL GEAR - F
    SHIM, DRIVE BEVEL GEAR - F
  • 25
    3304-531 SHIM, DRIVE BEVEL GEAR - G
    SHIM, DRIVE BEVEL GEAR - G
  • 25
    3304-532 SHIM, DRIVE BEVEL GEAR - H
    SHIM, DRIVE BEVEL GEAR - H
  • 25
    3304-533 SHIM, DRIVE BEVEL GEAR - I
    SHIM, DRIVE BEVEL GEAR - I
  • 25
    3304-534 SHIM, DRIVE BEVEL GEAR - J
    SHIM, DRIVE BEVEL GEAR - J
  • 25
    3304-535 SHIM, DRIVE BEVEL GEAR - K
    SHIM, DRIVE BEVEL GEAR - K
  • 25
    3304-536 SHIM, DRIVE BEVEL GEAR - L
    SHIM, DRIVE BEVEL GEAR - L
  • 26
    3303-801 GEAR, BEVEL - DRIVE
    GEAR, BEVEL - DRIVE
  • 27
    3303-784 SHAFT, MAIN
    SHAFT, MAIN
  • 28
    3304-044 WASHER, THRUST
    WASHER, THRUST
  • 29
    3304-622 GEAR, LOWER - DRIVEN
    GEAR, LOWER - DRIVEN
  • 30
    3304-045 WASHER, SPLINE
    WASHER, SPLINE
  • 31
    3304-056 CIRCLIP
    CIRCLIP
  • 32
    3305-556 SHIFT, REVERSE - DOG
    SHIFT, REVERSE - DOG
  • 33
    3304-043 WASHER, THRUST
    WASHER, THRUST
  • 34
    3303-797 GEAR, REVERSE
    GEAR, REVERSE
  • 35
    3304-074 BEARING, NEEDLE
    BEARING, NEEDLE
  • 36
    3304-147 CIRCLIP
    CIRCLIP
  • 37
    3303-791 DRIVESHAFT
    DRIVESHAFT
  • 38
    3304-005 SCREW, CAP
    SCREW, CAP
  • 39
    3304-041 PLATE, RETAINING
    PLATE, RETAINING
  • 40
    3304-033 NUT
    NUT
  • 41
    3304-112 SCREW, CAP
    SCREW, CAP
  • 42
    3304-067 BEARING
    BEARING
  • 43
    3305-655 PLATE, RETAINING
    PLATE, RETAINING
  • 44
    3305-654 COUNTERSHAFT
    COUNTERSHAFT
  • 45
    3303-800 GEAR, LOWER - DRIVE
    GEAR, LOWER - DRIVE
