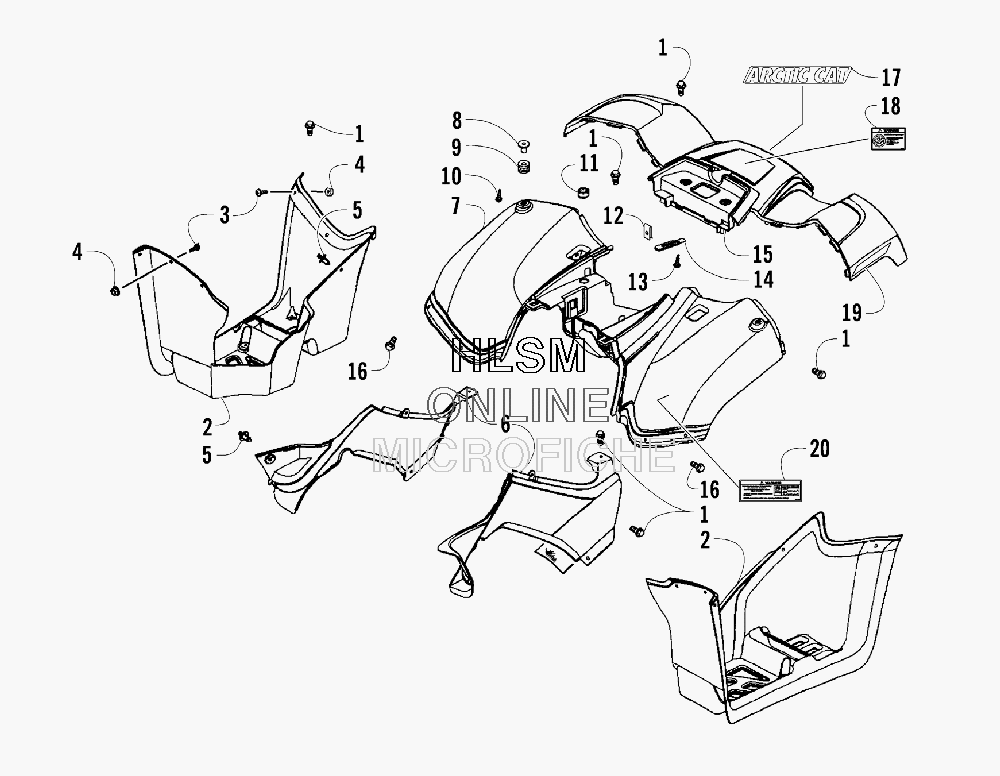

REAR BODY PANEL ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска
-
№АртикулНазвание
-
13304-587 SCREW, CAPSCREW, CAP
-
23303-991 MUDGUARD, FLOOR - RIGHTMUDGUARD, FLOOR - RIGHT
-
23303-992 MUDGUARD, FLOOR - LEFTMUDGUARD, FLOOR - LEFT
-
33303-251 SCREW, MACHINESCREW, MACHINE
-
43304-538 NUTNUT
-
53305-448 CLIP, RETAININGCLIP, RETAINING
-
63303-997 FENDER, REAR - LOWER RIGHTFENDER, REAR - LOWER RIGHT
-
63303-998 FENDER, REAR - LOWER LEFTFENDER, REAR - LOWER LEFT
-
73303-989 FENDER, REAR - (RED)FENDER, REAR - (RED)
-
83303-233 COLLAR, INSERTCOLLAR, INSERT
-
93303-227 GROMMETGROMMET
-
103304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
113303-232 GROMMETGROMMET
-
123304-061 CLIP, U-NUTCLIP, U-NUT
-
133304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
143304-156 CLIP, WIRECLIP, WIRE
-
153303-994 MOLDING, REAR FENDER - (RED)MOLDING, REAR FENDER - (RED)
-
163304-586 SCREW W/WASHERSCREW W/WASHER
-
171411-318 DECAL, "ARCTIC CAT" - WHITEDECAL, "ARCTIC CAT" - WHITE
-
181411-809 DECAL, WARNING - PASSENGERDECAL, WARNING - PASSENGER
-
191411-178 DECAL, REFLECTOR - REAR - RIGHTDECAL, REFLECTOR - REAR - RIGHT
-
191411-179 DECAL, REFLECTOR - REAR - LEFTDECAL, REFLECTOR - REAR - LEFT
-
201411-805 DECAL, WARNING - TIRE/LOADDECAL, WARNING - TIRE/LOAD
