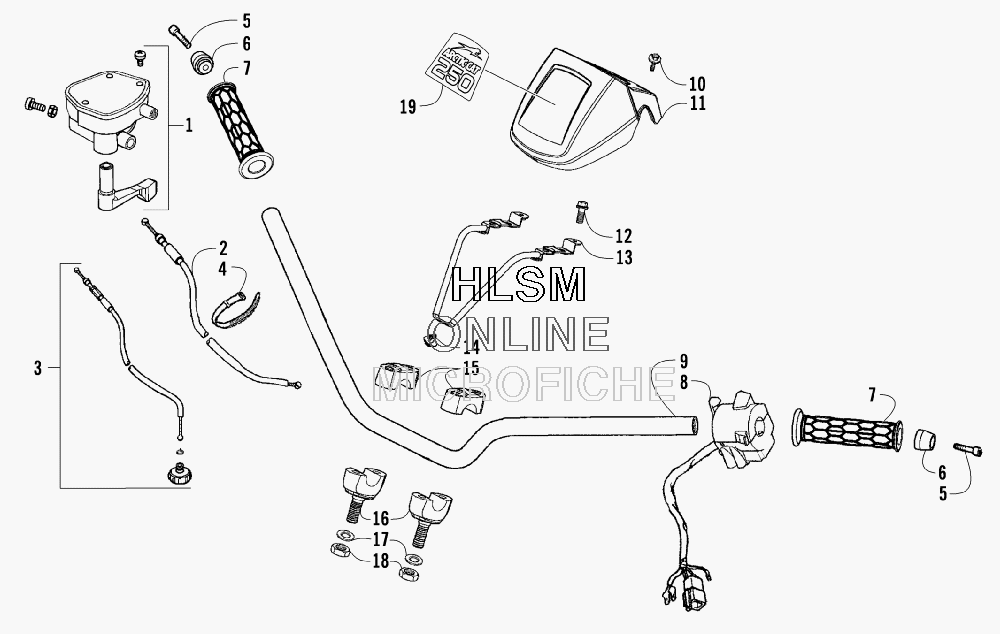

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-953 LEVER, THROTTLE - ASSEMBLY
    LEVER, THROTTLE - ASSEMBLY
  • 2
    3305-462 CABLE, CHOKE
    CABLE, CHOKE
  • 3
    1502-297 CABLE, THROTTLE - KIT
    CABLE, THROTTLE - KIT
  • 4
    3303-839 TIE, CABLE
    TIE, CABLE
  • 5
    3304-016 SCREW, CAP
    SCREW, CAP
  • 6
    3305-541 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 7
    3303-203 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 8
    3303-852 SWITCH ASSEMBLY - LEFT
    SWITCH ASSEMBLY - LEFT
  • 9
    3305-457 HANDLEBAR - (BLACK)
    HANDLEBAR - (BLACK)
  • 10
    3304-029 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    3303-958 INSTRUMENT POD - (RED)
    INSTRUMENT POD - (RED)
  • 12
    3305-400 SCREW, CAP
    SCREW, CAP
  • 13
    3303-951 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 14
    3304-552 CLIP, RETAINING
    CLIP, RETAINING
  • 15
    3303-954 CLAMP, HANDLEBAR - UPPER
    CLAMP, HANDLEBAR - UPPER
  • 16
    3303-955 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 17
    3305-088 WASHER
    WASHER
  • 18
    3303-325 NUT
    NUT
  • 19
    1411-622 DECAL, INSTRUMENT POD
    DECAL, INSTRUMENT POD
