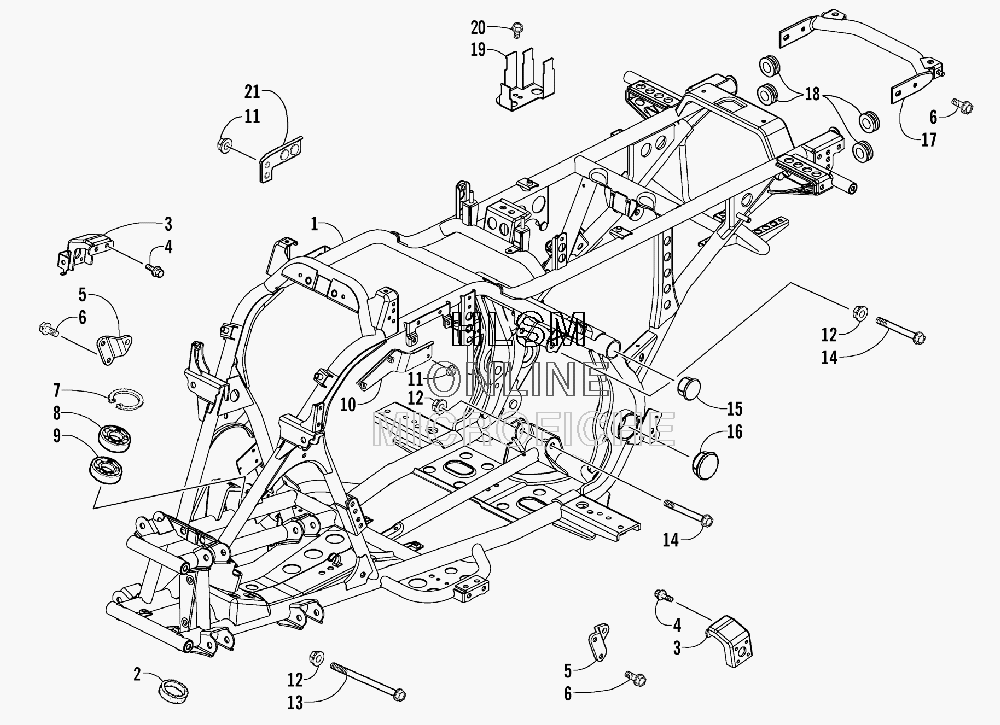

FRAME AND RELATED PARTS ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2009KUE2BUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-933 FRAME, MAIN
    FRAME, MAIN
  • 2
    3304-064 SEAL, DUST
    SEAL, DUST
  • 3
    3303-942 BRACKET, MOUNTING - FRONT RACK - RIGHT
    BRACKET, MOUNTING - FRONT RACK - RIGHT
  • 3
    3303-943 BRACKET, MOUNTING - FRONT RACK - LEFT
    BRACKET, MOUNTING - FRONT RACK - LEFT
  • 4
    3304-553 SCREW, CAP
    SCREW, CAP
  • 5
    3303-938 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 6
    3304-543 SCREW, CAP
    SCREW, CAP
  • 7
    3304-150 CIRCLIP
    CIRCLIP
  • 8
    3304-203 BEARING
    BEARING
  • 9
    3303-298 SEAL, OIL
    SEAL, OIL
  • 10
    3303-935 BRACKET, MOUNTING - CLUTCH/GAS TANK
    BRACKET, MOUNTING - CLUTCH/GAS TANK
  • 11
    3304-654 NUT
    NUT
  • 12
    3323-178 NUT, LOCK
    NUT, LOCK
  • 13
    3304-184 SCREW, CAP
    SCREW, CAP
  • 14
    3304-183 SCREW, CAP
    SCREW, CAP
  • 15
    3304-658 END CAP
    END CAP
  • 16
    3303-999 END CAP
    END CAP
  • 17
    3303-936 BRACKET, MOUNTING - REAR RACK
    BRACKET, MOUNTING - REAR RACK
  • 18
    3303-239 GROMMET
    GROMMET
  • 19
    3303-934 BRACKET, MOUNTING - STARTER/MAGNETO SWITCH
    BRACKET, MOUNTING - STARTER/MAGNETO SWITCH
  • 20
    3304-409 SCREW, CAP
    SCREW, CAP
  • 21
    3304-655 BRACKET, MOUNTING - BRAKE SWITCH
    BRACKET, MOUNTING - BRAKE SWITCH
