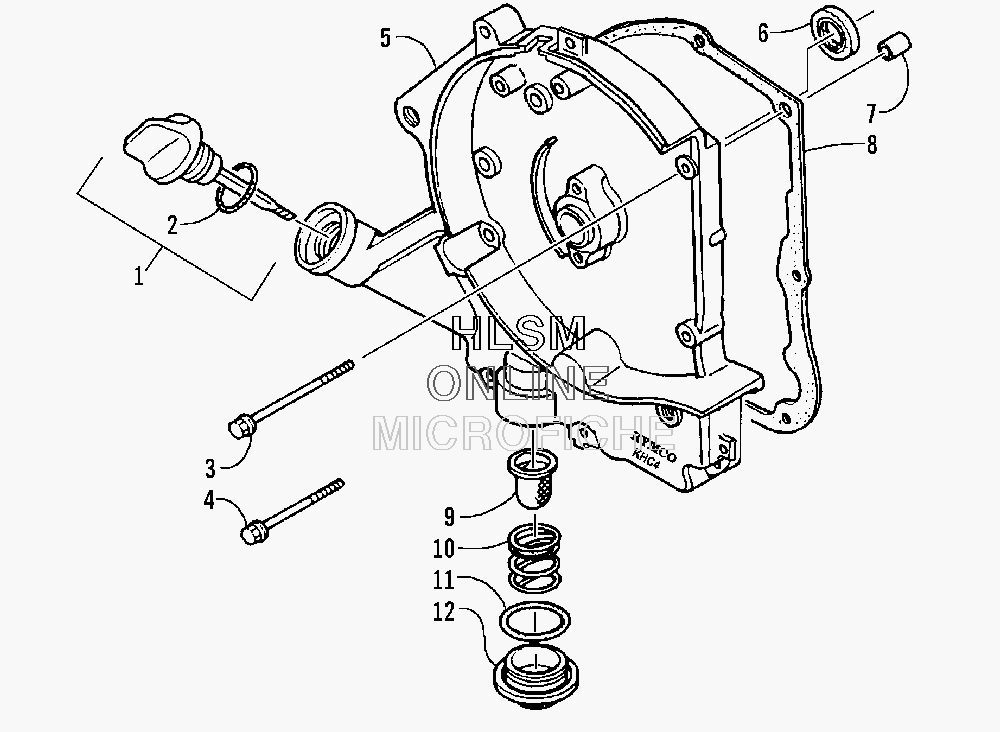

CRANKCASE COVER ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) EXCEPT CALIF. [A2008KSB2BUSD] - 2008 года выпуска`
-
№АртикулНазвание
-
13303-050 GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)GAUGE, OIL LEVEL - ASSEMBLY (INC. 2)
-
23304-102 ...O-RING 18*3...O-RING 18*3
-
33303-390 BOLT, FLANGE 6*100BOLT, FLANGE 6*100
-
43304-580 BOLT, FLANGE 6X85BOLT, FLANGE 6X85
-
53303-007 COVER, CRANKCASE (INC. 6)COVER, CRANKCASE (INC. 6)
-
63303-296 ...SEAL, OIL 19.8*30*5 **9000-M2...SEAL, OIL 19.8*30*5 **9000-M2
-
73303-341 PIN, DOWEL 8*14PIN, DOWEL 8*14
-
83303-012 GASKET, CRANKCASEGASKET, CRANKCASE
-
93303-048 SCREEN, OIL FILTERSCREEN, OIL FILTER
-
103303-049 SPRING, OIL FILTER SCREENSPRING, OIL FILTER SCREEN
-
113304-096 O-RING 30.8MMO-RING 30.8MM
-
123303-021 CAP, OIL FILTER **9000 C.97.09CAP, OIL FILTER **9000 C.97.09
