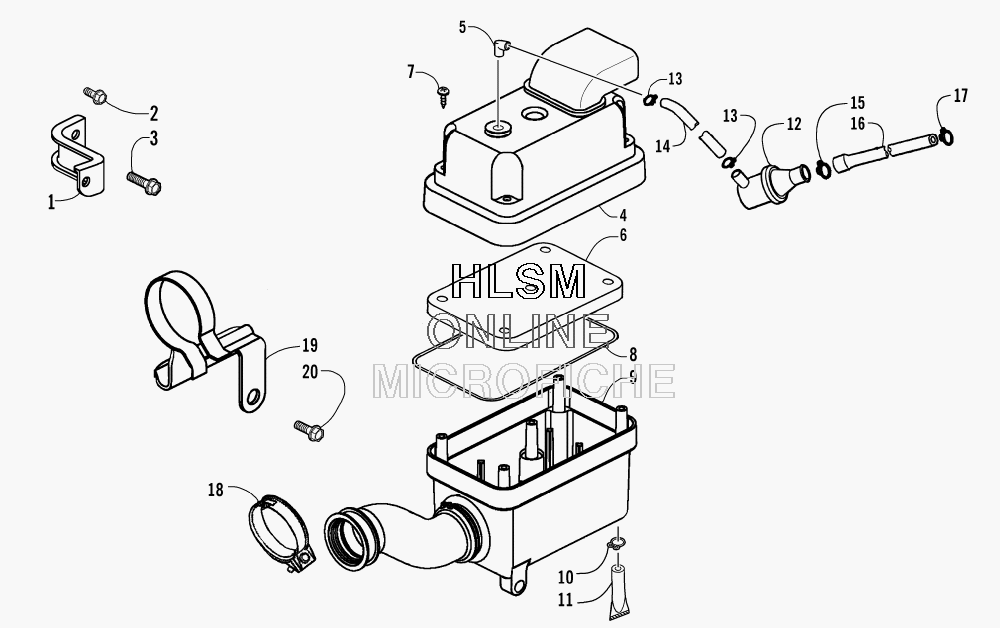

AIR INTAKE ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) EXCEPT CALIF. [A2008KSB2BUSD] - 2008 года выпуска
-
№АртикулНазвание
-
13303-005 BRACKET, MOUNTINGBRACKET, MOUNTING
-
23305-458 BOLT, FLANGE 6*12(C)BOLT, FLANGE 6*12(C)
-
33303-361 BOLT, FLANGE 6*30BOLT, FLANGE 6*30
-
43303-062 COVER, AIR CLEANER (INC. 5)COVER, AIR CLEANER (INC. 5)
-
63303-060 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
73305-450 SCREW, SELF-TAPPING 5X20(G)SCREW, SELF-TAPPING 5X20(G)
-
83303-063 SEAL, AIR CLEANERSEAL, AIR CLEANER
-
93305-314 CASE, AIR CLEANERCASE, AIR CLEANER
-
103305-315 CLAMP D23CLAMP D23
-
113304-168 TUBE, DRAINTUBE, DRAIN
-
123303-064 CATCH, AIR CLEANER ELEMENTCATCH, AIR CLEANER ELEMENT
-
133303-350 CLIP B12.5 TUBECLIP B12.5 TUBE
-
143303-002 TUBE BTUBE B
-
153303-052 CLIP, BREATHER TUBECLIP, BREATHER TUBE
-
163303-001 TUBE ATUBE A
-
173303-352 CLIP C9 TUBECLIP C9 TUBE
-
183303-288 CLAMPCLAMP
-
193303-287 CLAMP ASSEMBLY - AIR CLEANER TUBECLAMP ASSEMBLY - AIR CLEANER TUBE
-
203304-551 BOLT, FLANGE 6*22BOLT, FLANGE 6*22
