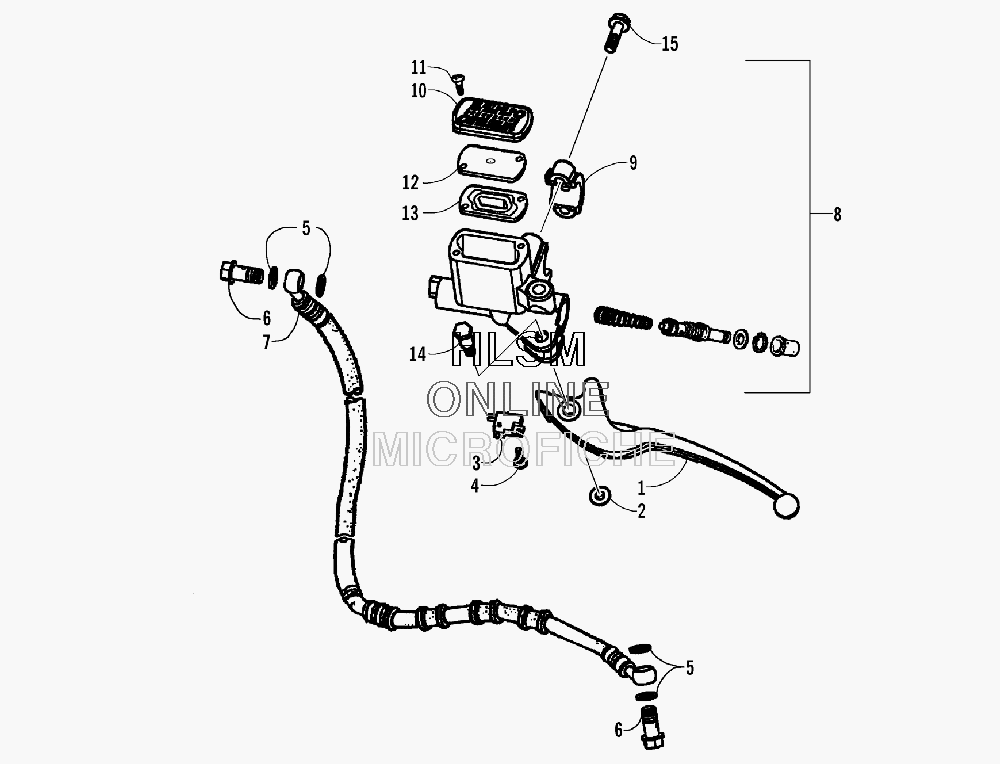

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) EXCEPT CALIF. [A2008KSB2BUSD] - 2008 года выпуска
-
№АртикулНазвание
-
13303-206 LEVERLEVER
-
23304-654 NUT, FLANGE 6MMNUT, FLANGE 6MM
-
33303-141 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
43305-463 SCREW W/WASHER 4*12SCREW W/WASHER 4*12
-
53303-284 WASHER OIL BOLT **(1) C.98.06.01.WASHER OIL BOLT **(1) C.98.06.01.
-
63303-257 OIL BOLT 10*22 **6110-M1 C.97.07.26.OIL BOLT 10*22 **6110-M1 C.97.07.26.
-
73305-278 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
83305-484 BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)BRAKE, MASTER CYLINDER - ASSEMBLY (INC. 9-14)
-
93303-175 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
103303-174 ...CAP, MASTER CYLINDER...CAP, MASTER CYLINDER
-
113303-318 ...SCREW, FLAT-HEAD 4*12...SCREW, FLAT-HEAD 4*12
-
123305-250 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
133305-309 ...DIAPHRAGM...DIAPHRAGM
-
143303-254 ...BOLT, LEVER...BOLT, LEVER
-
153305-297 BOLT SOCKET SPECIAL 6*23BOLT SOCKET SPECIAL 6*23
