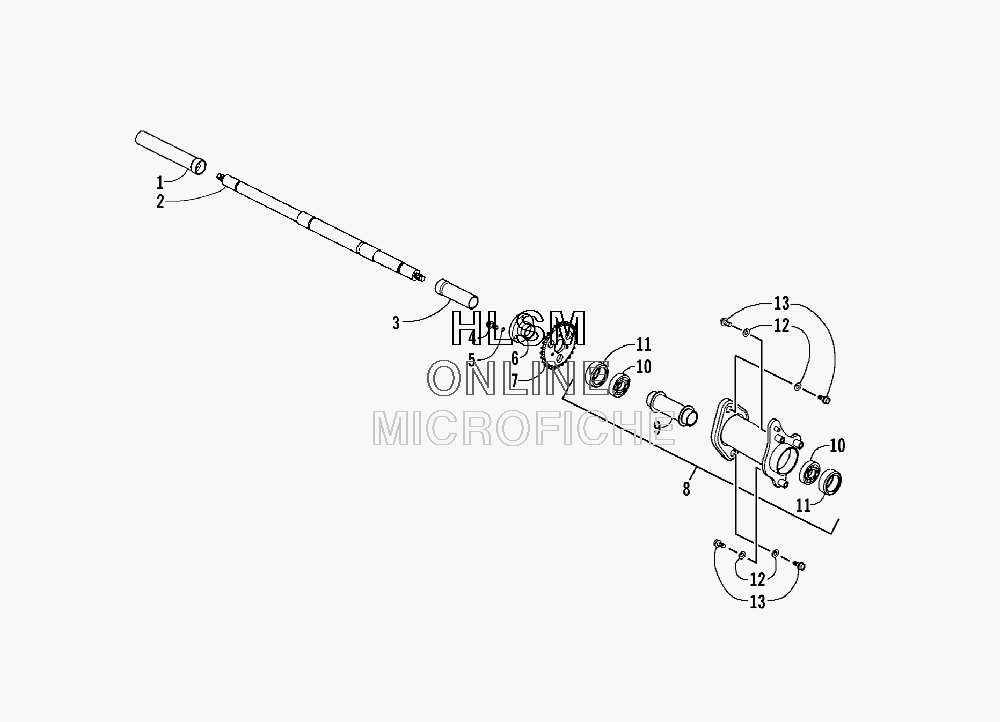

REAR AXLE ASSEMBLY для Arctic Cat DVX 90 (BLACK/RED) EXCEPT CALIF. [A2008KSB2BUSD] - 2008 года выпуска
-
№АртикулНазвание
-
13303-152 SPACER, REAR WHEEL - RIGHTSPACER, REAR WHEEL - RIGHT
-
23305-287 SHAFT, REAR WHEELSHAFT, REAR WHEEL
-
33303-153 SPACER, REAR WHEEL - LEFTSPACER, REAR WHEEL - LEFT
-
43304-565 BOLT, FLANGE 8*20BOLT, FLANGE 8*20
-
53303-607 WASHER, SPRING 8MMWASHER, SPRING 8MM
-
63305-289 HOLDER, SPROCKETHOLDER, SPROCKET
-
73303-426 SPROCKET, FINAL DRIVESPROCKET, FINAL DRIVE
-
83303-154 HUB, REAR - ASSEMBLY (INC. 9-11)HUB, REAR - ASSEMBLY (INC. 9-11)
-
93303-427 ...COLLAR, HUB - RIGHT...COLLAR, HUB - RIGHT
-
103303-466 ...BEARING BALL RADIAL 6006/30*55*13...BEARING BALL RADIAL 6006/30*55*13
-
113303-461 ...SEAL, DUST...SEAL, DUST
-
123303-281 WASHER 12.2*28*4WASHER 12.2*28*4
-
133303-379 BOLT, FLANGE 12*28MMBOLT, FLANGE 12*28MM
