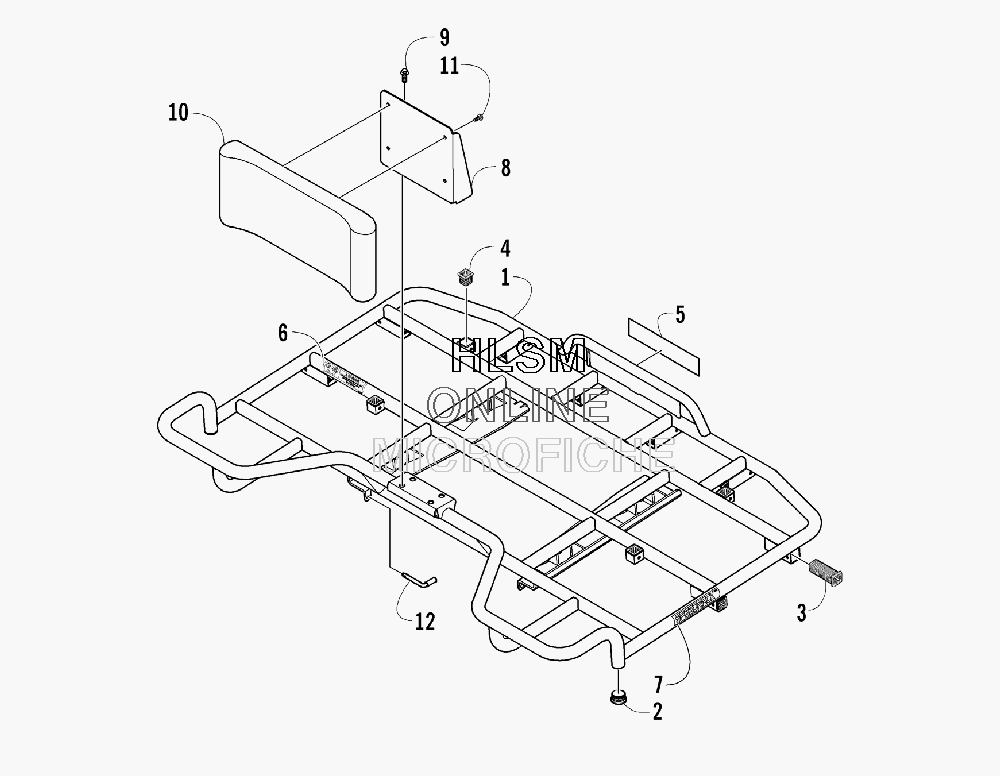

REAR RACK AND BACKREST ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 0436-798 REAR RACK KIT
    REAR RACK KIT
  • 1
    0541-438 RACK, REAR - ASSEMBLY (INC. 2-7)
    RACK, REAR - ASSEMBLY (INC. 2-7)
  • 2
    1441-049 ...PLUG
    ...PLUG
  • 3
    2406-014 ...BUSHING
    ...BUSHING
  • 4
    0441-592 ...BUSHING
    ...BUSHING
  • 5
    0411-814 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 6
    0411-648 ...DECAL, WARNING - REAR RACK LOAD (200 LB.)
    ...DECAL, WARNING - REAR RACK LOAD (200 LB.)
  • 7
    0411-965 ...DECAL, SPEEDRACK
    ...DECAL, SPEEDRACK
  • 8
    0541-486 BRACKET, BACKREST (BLACK)
    BRACKET, BACKREST (BLACK)
  • 9
    8408-816 SCREW, CAP
    SCREW, CAP
  • 10
    0506-686 BACKREST
    BACKREST
  • 11
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0541-447 PIN
    PIN
  • *
    0453-349 INSTRUCTIONS (NOT ILLUSTRATED)
    INSTRUCTIONS (NOT ILLUSTRATED)
