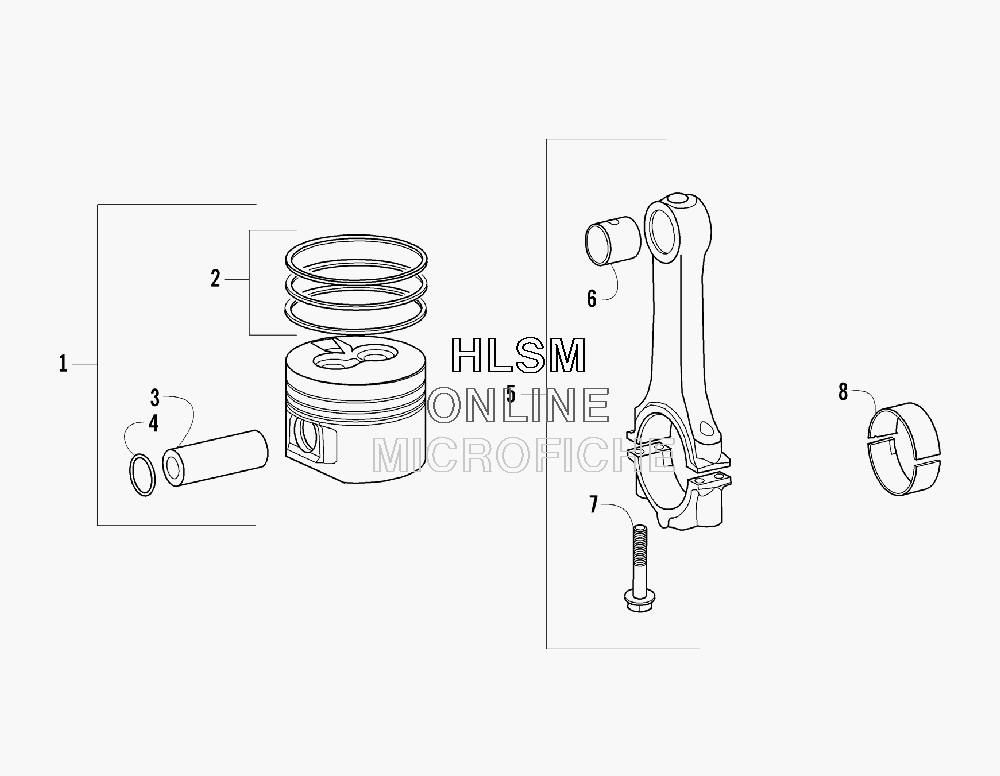

PISTON SET AND CONNECTING ROD ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3206-026 PISTON - SET (INC. 2-4)
    PISTON - SET (INC. 2-4)
  • 1
    3206-027 PISTON - SET (+0.50 MM)
    PISTON - SET (+0.50 MM)
  • 1
    3206-028 PISTON - SET (+1.00 MM)
    PISTON - SET (+1.00 MM)
  • 2
    3206-023 ...RING - SET
    ...RING - SET
  • 2
    3206-024 ...RING - SET (+0.50 MM)
    ...RING - SET (+0.50 MM)
  • 2
    3206-025 ...RING - SET (+1.00 MM)
    ...RING - SET (+1.00 MM)
  • 3
    3206-030 ...PISTON PIN
    ...PISTON PIN
  • 4
    3206-031 ...CIRCLIP
    ...CIRCLIP
  • 5
    3206-035 CONNECTING ROD (INC. 6-7)
    CONNECTING ROD (INC. 6-7)
  • 6
    3206-029 ...BUSHING
    ...BUSHING
  • 7
    3206-036 ...BOLT
    ...BOLT
  • 8
    3206-032 BUSHING (STD)
    BUSHING (STD)
  • 8
    3206-033 BUSHING (-0.25 MM)
    BUSHING (-0.25 MM)
  • 8
    3206-034 BUSHING (-0.50 MM)
    BUSHING (-0.50 MM)
