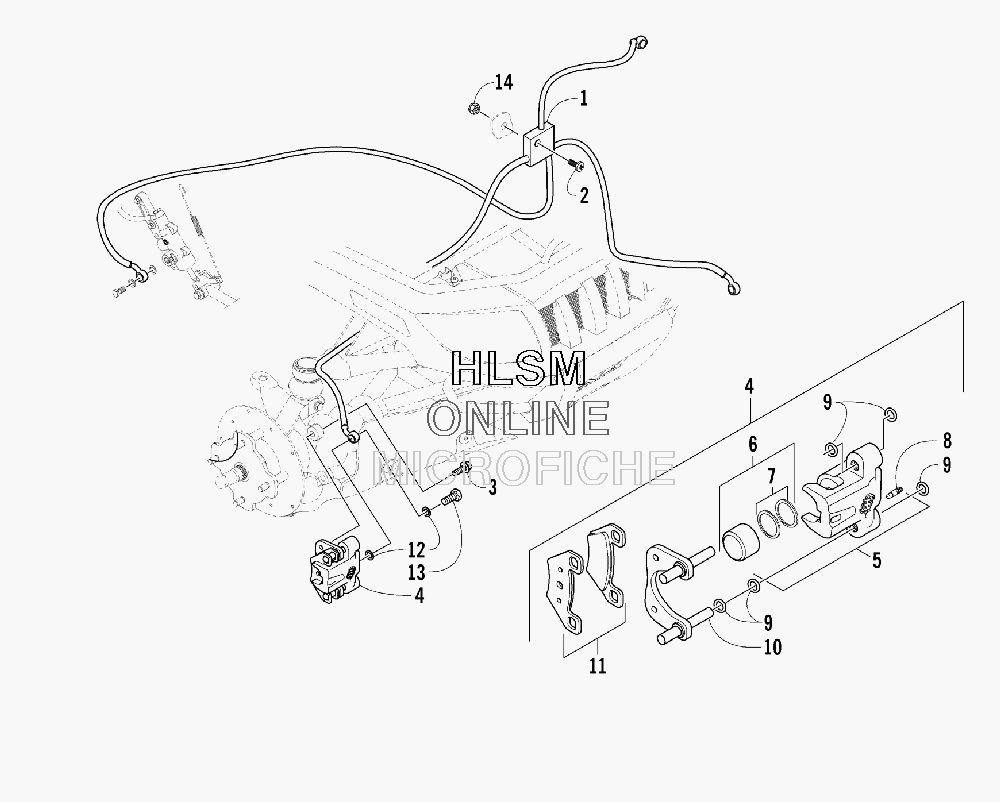

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2008TBT4DUSR] - 2008 года выпуска
-
№АртикулНазвание
-
11502-015 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
28476-625 SCREW, CAPSCREW, CAP
-
31623-589 SCREW, CAPSCREW, CAP
-
40502-878 KIT-CALIPER, FULL ASSY - RIGHT FRONT (INC. 5-11)KIT-CALIPER, FULL ASSY - RIGHT FRONT (INC. 5-11)
-
40502-879 KIT-CALIPER, FULL ASSY- LEFT FRONT (INC. 5-11)KIT-CALIPER, FULL ASSY- LEFT FRONT (INC. 5-11)
-
50502-603 KIT-HOUSING, PISTONS,SEALS,BLEADER - RIGHT FRONT (INC. 6-8)KIT-HOUSING, PISTONS,SEALS,BLEADER - RIGHT FRONT (INC. 6-8)
-
50502-611 KIT-HOUSING, PISTONS,SEALS,BLEADER -LEFT FRONT (INC. 6-8)KIT-HOUSING, PISTONS,SEALS,BLEADER -LEFT FRONT (INC. 6-8)
-
60502-606 ......PISTON/SEAL SET (INC. 7)......PISTON/SEAL SET (INC. 7)
-
70502-607 ......SEAL SET......SEAL SET
-
80502-609 ......VALVE, BLEED......VALVE, BLEED
-
90502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
100502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
110502-875 KIT-PAD, BRAKE-SET (TYPE 97)KIT-PAD, BRAKE-SET (TYPE 97)
-
120423-178 WASHER, CRUSHWASHER, CRUSH
-
130423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
140623-038 NUT, LOCKNUT, LOCK
