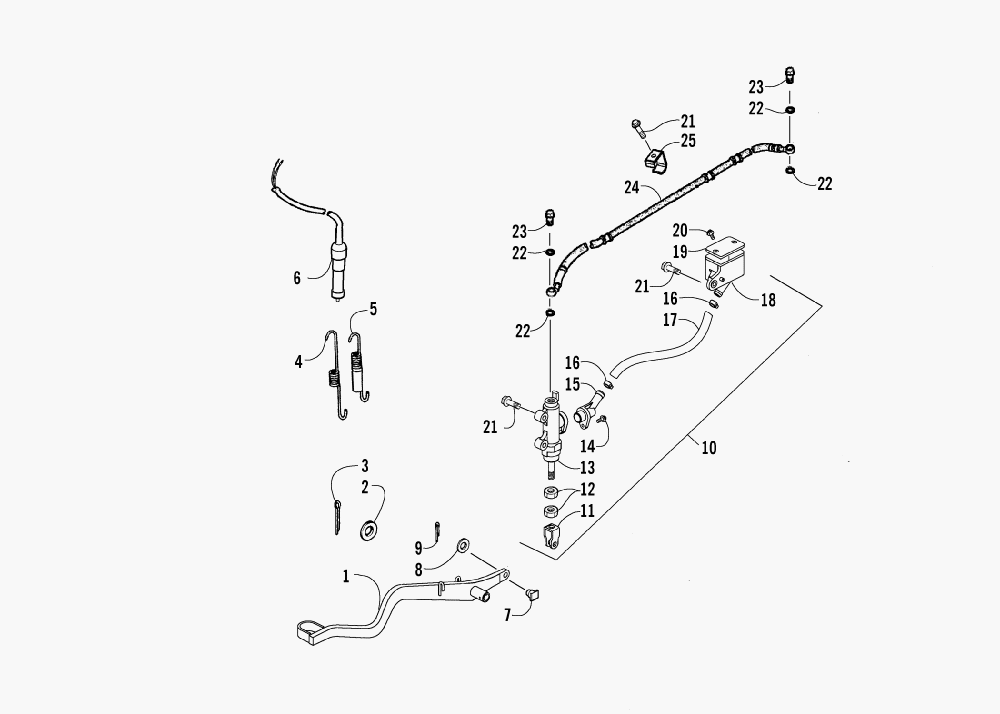

AUXILIARY BRAKE ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска`
-
№АртикулНазвание
-
13304-335 LEVER, BRAKELEVER, BRAKE
-
23304-139 WASHERWASHER
-
33304-143 PINPIN
-
43303-855 SPRING, STOP - BRAKE LEVERSPRING, STOP - BRAKE LEVER
-
53303-929 SPRING, SET - BRAKE LEVERSPRING, SET - BRAKE LEVER
-
63304-685 SWITCH, BRAKESWITCH, BRAKE
-
73303-927 PIN, CLEVISPIN, CLEVIS
-
83304-050 WASHERWASHER
-
93304-141 PIN, COTTERPIN, COTTER
-
103304-306 BRAKE ASSEMBLY - REAR (INC. 11-20)BRAKE ASSEMBLY - REAR (INC. 11-20)
-
113303-928 ...ACTUATOR, PUSH ROD...ACTUATOR, PUSH ROD
-
123304-128 ...NUT, JAM...NUT, JAM
-
143303-321 ...SCREW W/WASHER...SCREW W/WASHER
-
153304-307 ...CONNECTOR...CONNECTOR
-
163303-895 ...CLAMP, BRAKE HOSE...CLAMP, BRAKE HOSE
-
173304-308 ...HOSE, BRAKE...HOSE, BRAKE
-
183303-896 ...RESERVOIR, BRAKE...RESERVOIR, BRAKE
-
193304-332 ...COVER, BRAKE RESERVOIR...COVER, BRAKE RESERVOIR
-
203304-119 ...SCREW, FLATHEAD...SCREW, FLATHEAD
-
213304-551 SCREW, CAPSCREW, CAP
-
223303-284 WASHER, CRUSHWASHER, CRUSH
-
233303-257 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
243304-299 HOSE, BRAKE - ASSEMBLY - REARHOSE, BRAKE - ASSEMBLY - REAR
-
253303-891 CLAMP, BRAKE HOSE - REARCLAMP, BRAKE HOSE - REAR
