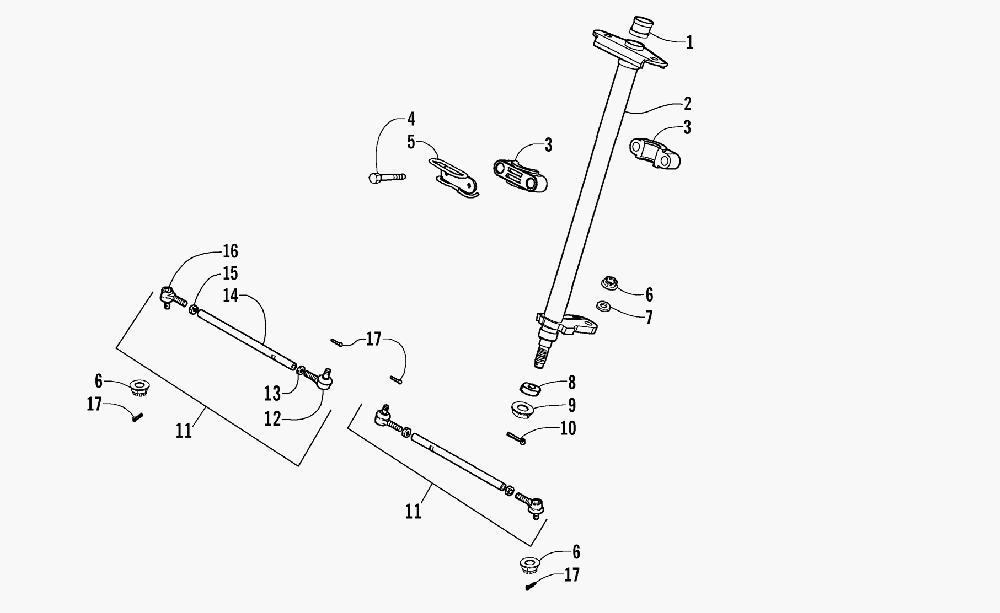

STEERING POST ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-963 BUSHING, SLEEVE
    BUSHING, SLEEVE
  • 2
    3303-957 POST, STEERING
    POST, STEERING
  • 3
    3303-961 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 4
    3304-649 SCREW, CAP
    SCREW, CAP
  • 5
    3303-962 CLAMP, MOUNTING BLOCK
    CLAMP, MOUNTING BLOCK
  • 6
    3304-130 NUT, CASTLE
    NUT, CASTLE
  • 7
    3304-136 WASHER
    WASHER
  • 8
    3303-960 COLLAR, STEERING POST - LOWER
    COLLAR, STEERING POST - LOWER
  • 9
    3304-032 NUT, FLANGE
    NUT, FLANGE
  • 10
    3303-339 PIN, COTTER
    PIN, COTTER
  • 11
    3303-969 TIE ROD - ASSEMBLY (INC. 12-16)
    TIE ROD - ASSEMBLY (INC. 12-16)
  • 12
    3303-973 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
  • 13
    3303-327 ...NUT, HEX - LEFT
    ...NUT, HEX - LEFT
  • 14
    3304-376 ...TUBE, TIE ROD
    ...TUBE, TIE ROD
  • 15
    3303-326 ...NUT, HEX - RIGHT
    ...NUT, HEX - RIGHT
  • 16
    3303-971 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 17
    3304-143 PIN, COTTER
    PIN, COTTER
