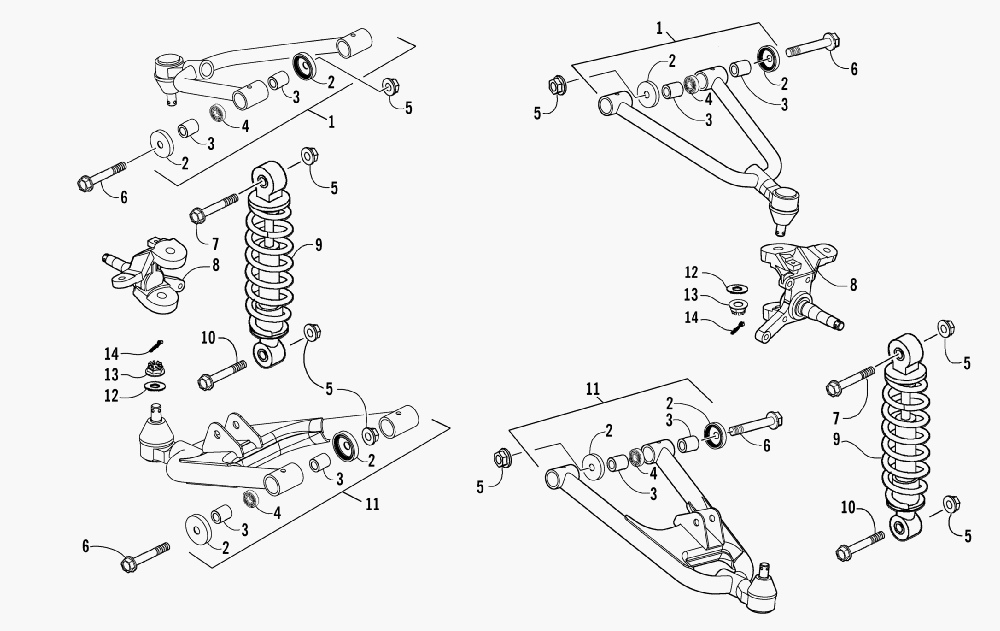

FRONT SUSPENSION ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3304-371 A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
    A-ARM ASSEMBLY - UPPER RIGHT (INC. 2-4)
  • 1
    3304-374 A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
    A-ARM ASSEMBLY - UPPER LEFT (INC. 2-4)
  • 2
    3304-090 ...SEAL, OIL
    ...SEAL, OIL
  • 3
    3304-689 ...BUSHING, SWING ARM
    ...BUSHING, SWING ARM
  • 4
    3304-199 ...BEARING
    ...BEARING
  • 5
    3304-031 NUT
    NUT
  • 6
    3304-182 BOLT, FLANGE
    BOLT, FLANGE
  • 7
    3303-376 BOLT, FLANGE
    BOLT, FLANGE
  • 8
    3304-336 KNUCKLE ASSEMBLY - RIGHT
    KNUCKLE ASSEMBLY - RIGHT
  • 8
    3304-337 KNUCKLE ASSEMBLY - LEFT
    KNUCKLE ASSEMBLY - LEFT
  • 9
    3304-347 CUSHION ASSEMBLY - FRONT
    CUSHION ASSEMBLY - FRONT
  • 10
    3304-595 BOLT, FLANGE
    BOLT, FLANGE
  • 11
    3304-373 A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
    A-ARM ASSEMBLY - LOWER RIGHT (INC. 2-4)
  • 11
    3304-375 A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
    A-ARM ASSEMBLY - LOWER LEFT (INC. 2-4)
  • 12
    3303-335 WASHER
    WASHER
  • 13
    3303-328 NUT, CASTLE
    NUT, CASTLE
  • 14
    3303-339 PIN, COTTER
    PIN, COTTER
