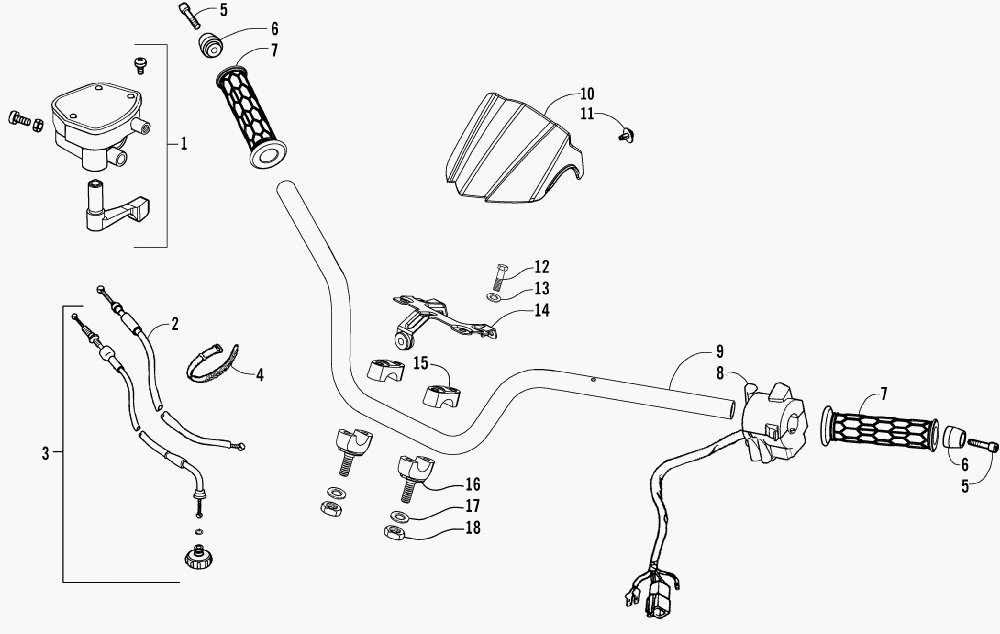

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2007KSE2BUSD] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-953 LEVER, THROTTLE - ASSEMBLY
    LEVER, THROTTLE - ASSEMBLY
  • 2
    3303-723 CABLE, CHOKE
    CABLE, CHOKE
  • 3
    1502-094 CABLE, THROTTLE - KIT
    CABLE, THROTTLE - KIT
  • 4
    3303-839 CABLE TIE
    CABLE TIE
  • 5
    3304-016 BOLT W/WASHER
    BOLT W/WASHER
  • 6
    3303-952 CAP, END - HANDLEBAR
    CAP, END - HANDLEBAR
  • 7
    3303-203 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 8
    3304-684 SWITCH ASSEMBLY - LEFT
    SWITCH ASSEMBLY - LEFT
  • 9
    3304-367 HANDLEBAR
    HANDLEBAR
  • 10
    3303-436 INSTRUMENT POD - BLACK
    INSTRUMENT POD - BLACK
  • 11
    3303-592 CLIP
    CLIP
  • 12
    3304-110 BOLT
    BOLT
  • 13
    3304-135 WASHER
    WASHER
  • 14
    3304-368 BRACKET, INSTRUMENT POD
    BRACKET, INSTRUMENT POD
  • 15
    3303-954 HOLDER, HANDLEBAR - UPPER
    HOLDER, HANDLEBAR - UPPER
  • 16
    3303-955 HOLDER, HANDLEBAR - LOWER
    HOLDER, HANDLEBAR - LOWER
  • 17
    3305-088 WASHER
    WASHER
  • 18
    3303-325 NUT
    NUT
