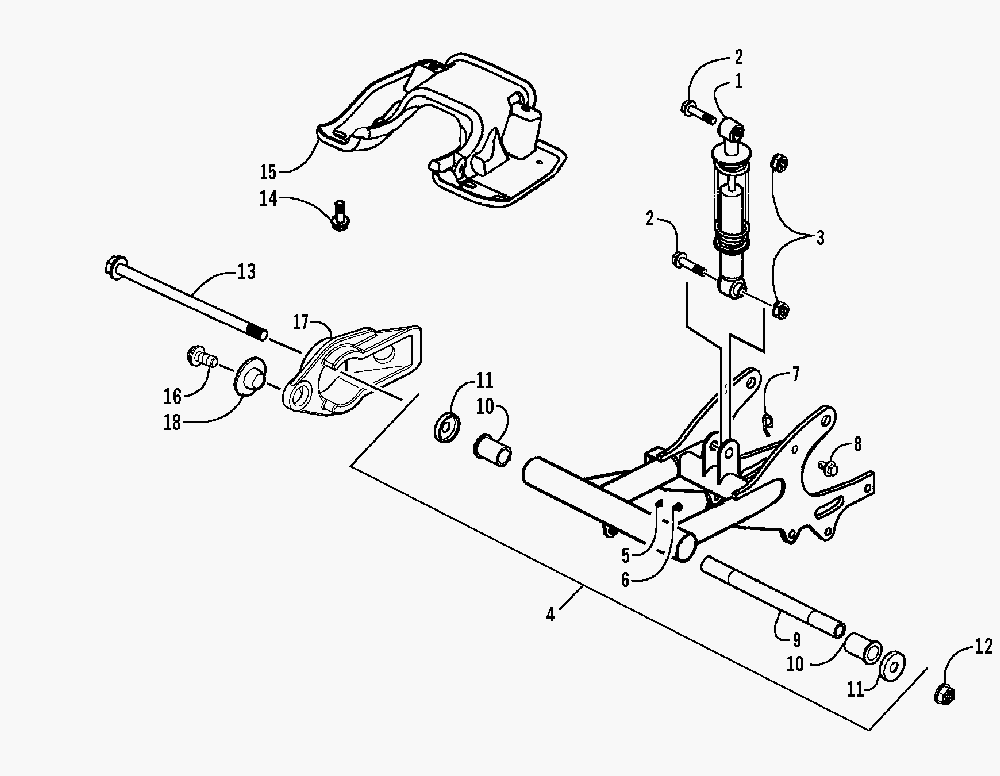

REAR SUSPENSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска
-
№АртикулНазвание
-
13303-433 SHOCK, REAR - ASSEMBLYSHOCK, REAR - ASSEMBLY
-
23303-376 BOLT, FLANGEBOLT, FLANGE
-
33303-265 NUT, FLANGENUT, FLANGE
-
43305-290 FORK, REAR - ASSEMBLY (INC. 5-11)FORK, REAR - ASSEMBLY (INC. 5-11)
-
53303-394 ...BOOT, GREASE FITTING...BOOT, GREASE FITTING
-
63303-393 ...FITTING, GREASE...FITTING, GREASE
-
73304-594 ...CLAMP, BRAKE HOSE...CLAMP, BRAKE HOSE
-
83303-356 ...BOLT...BOLT
-
93303-189 ...AXLE, REAR FORK...AXLE, REAR FORK
-
103303-191 ...BUSHING, REAR FORK...BUSHING, REAR FORK
-
113303-192 ...CAP, REAR FORK...CAP, REAR FORK
-
123304-032 NUTNUT
-
133303-150 BOLT, REAR FORKBOLT, REAR FORK
-
143304-587 BOLT, FLANGEBOLT, FLANGE
-
153304-593 GUARD, REAR FORKGUARD, REAR FORK
-
163304-690 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
173305-291 SLIDER, CHAINSLIDER, CHAIN
-
183304-360 COLLAR, CHAIN SLIDERCOLLAR, CHAIN SLIDER
