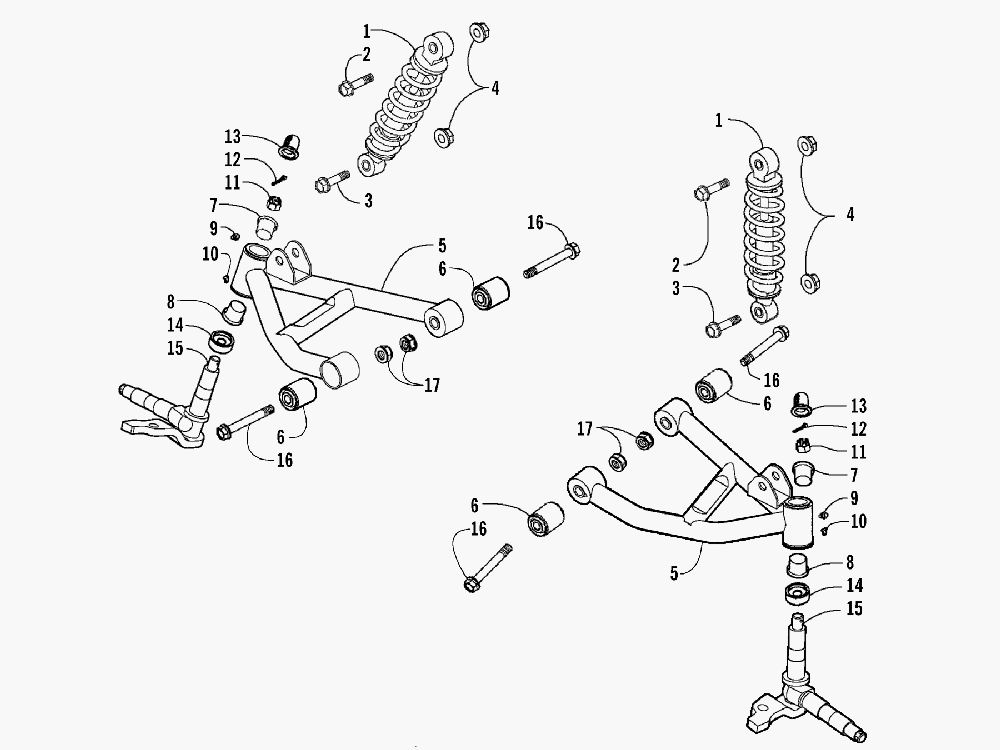

FRONT SUSPENSION ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2007KSB2BUSZ] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-431 SHOCK, FRONT - ASSEMBLY
    SHOCK, FRONT - ASSEMBLY
  • 2
    3303-376 BOLT, FLANGE
    BOLT, FLANGE
  • 3
    3303-309 BOLT, HEX
    BOLT, HEX
  • 4
    3303-333 NUT, FLANGE
    NUT, FLANGE
  • 5
    3303-438 ARM, SWING - SET - FRONT RIGHT (INC. 6-10)
    ARM, SWING - SET - FRONT RIGHT (INC. 6-10)
  • 5
    3303-439 ARM, SWING - SET - FRONT LEFT (INC. 6-10)
    ARM, SWING - SET - FRONT LEFT (INC. 6-10)
  • 6
    3303-216 ...BUSHING, SWING ARM
    ...BUSHING, SWING ARM
  • 7
    3303-218 ...BUSHING, SWING ARM - TOP
    ...BUSHING, SWING ARM - TOP
  • 8
    3303-217 ...BUSHING, SWING ARM - BOTTOM
    ...BUSHING, SWING ARM - BOTTOM
  • 9
    3303-393 ...FITTING, GREASE
    ...FITTING, GREASE
  • 10
    3303-394 ...BOOT, GREASE FITTING
    ...BOOT, GREASE FITTING
  • 11
    3303-329 NUT, FLANGE CASTLE
    NUT, FLANGE CASTLE
  • 12
    3303-337 PIN, COTTER
    PIN, COTTER
  • 13
    3303-219 CAP, SWING ARM
    CAP, SWING ARM
  • 14
    3303-220 SEAL, SWING ARM
    SEAL, SWING ARM
  • 15
    3303-178 SHAFT, STEERING - RIGHT
    SHAFT, STEERING - RIGHT
  • 15
    3303-180 SHAFT, STEERING - LEFT
    SHAFT, STEERING - LEFT
  • 16
    3304-595 BOLT, FLANGE
    BOLT, FLANGE
  • 17
    3303-265 NUT, FLANGE
    NUT, FLANGE
